74143 (2000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) LH TRANSAXLE ASSEMBLY NO. 130-2851 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

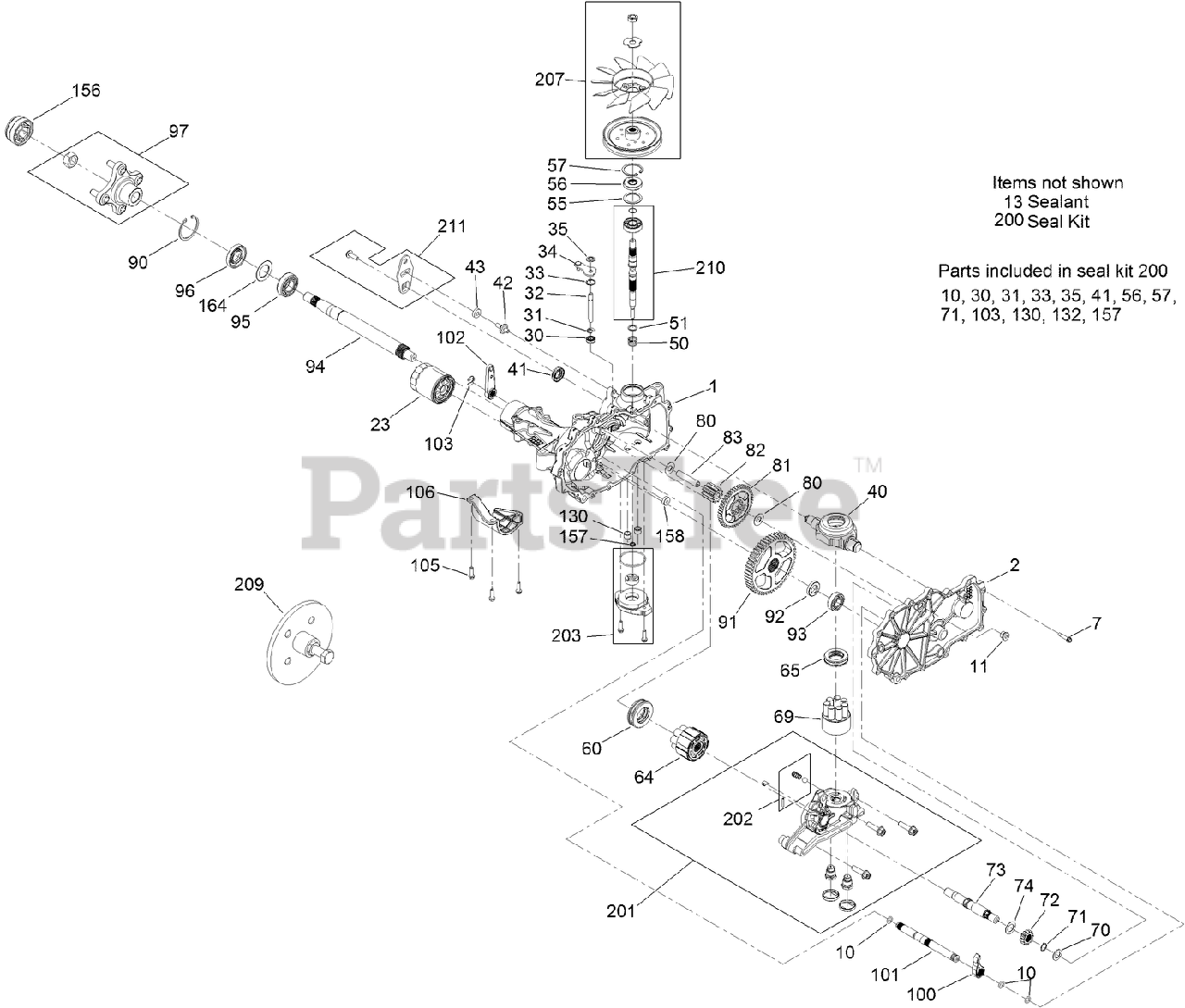

LH TRANSAXLE ASSEMBLY NO. 130-2851 Parts Diagram

  • Title

1

Toro 121-3233

LH MAIN HOUSING KIT

$756.99

$

Usually ships in 3-6 days

0

2

Toro 121-3234

LH SIDE COVER KIT

$421.99

$

Usually ships in 3-6 days

0

7

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 130-8483

O-RING
(Superseded to 114-1678)

$5.99

$

Usually ships in 3-6 days

0

11

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

13

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

23

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

30

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

31

Toro 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

32

Toro 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

33

Toro 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

34

Toro 107-2490

ARM-BYPASS

$58.99

$

Usually ships in 3-6 days

0

35

Toro 106-8681

RING-RETAINING, EXTERNAL

$8.99

$

Usually ships in 3-6 days

0

40

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

41

Toro 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

42

Toro 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

43

Toro 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

50

Toro 120-5537

SPRING-COMPRESSION
(Superseded to 94-1936)

$8.49

$

Usually ships in 3-6 days

0

51

Toro 120-5538

WASHER

$5.49

$

Usually ships in 3-6 days

0

55

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

56

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

57

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 1 left!

0

60

Toro 109-2865

Bearing-Thrust
(Superseded to 112-4154)

$103.99

$

Usually ships in 3-6 days

0

64

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

65

Toro 121-3235

BEARING-THRUST, PLASTIC CAGE

$36.99

$

Usually ships in 3-6 days

0

69

Toro 121-3236

7 PISTON BLOCK ASM

$263.99

$

Usually ships in 3-6 days

0

70

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

71

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

72

Toro 120-7972

GEAR-13T

$99.99

$

Usually ships in 3-6 days

0

73

Toro 114-1691

SHAFT-MOTOR

$169.99

$

Usually ships in 3-6 days

0

74

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

80

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

81

Toro 120-7973

GEAR-46T

$86.99

$

Usually ships in 3-6 days

0

82

Toro 120-7974

GEAR-11T

$75.99

$

Usually ships in 3-6 days

0

83

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

90

Toro 104-2169

RING-RETAINING

$19.99

$

Usually ships in 3-6 days

0

91

Toro 121-3237

GEAR-54T

$104.99

$

Usually ships in 3-6 days

0

92

Toro 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

93

Toro 130-8476

BEARING-BALL

$29.99

$

Usually ships in 3-6 days

0

94

Toro 121-3238

SHAFT-AXLE

$323.99

$

Usually ships in 3-6 days

0

95

Toro 130-8477

BEARING-BALL

$25.99

$

Usually ships in 3-6 days

0

96

Toro 130-8478

SEAL-LIP
(Superseded to 104-2144)

$49.99

$

In Stock, only 1 left!

0

97

Toro 109-5939

HUB KIT

$103.99

$

In Stock, only 3 left!

0

100

Toro 114-1697

PAWL-BRAKE

$17.99

$

Usually ships in 3-6 days

0

101

Toro 114-1698

SHAFT-BRAKE, INBOARD

$140.99

$

Usually ships in 3-6 days

0

102

Toro 125-0021

HANDLE-BRAKE

$14.99

$

In Stock, only 1 left!

0

103

Toro 130-8484

RING-RETAINING, EXT
(Superseded to 131-0906)

$6.49

$

Usually ships in 3-6 days

0

105

Toro 104-2120

SCREW

$7.99

$

In Stock, only 1 left!

0

106

Toro 120-7979

GUARD-FILTER, LH

$34.99

$

In Stock, only 1 left!

0

130

Toro 130-8485

TUBE-PUSH, O-RING
(Superseded to 114-8455)

$13.99

$

Usually ships in 3-6 days

0

156

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

157

Toro 130-8486

SEAL-GEROTOR

$7.99

$

Usually ships in 3-6 days

0

158

Toro 104-5330

MAGNET-RING

$10.99

$

Usually ships in 3-6 days

0

164

Toro 130-8480

SPACER

$8.49

$

Usually ships in 3-6 days

0

200

Toro 121-3243

SEAL KIT

Note: Not illustrated

$189.99

$

Usually ships in 3-6 days

0

201

Toro 130-8487

KIT-CENTER SECTION (LH CHARGE)

$431.99

$

Usually ships in 3-6 days

0

202

Toro 114-8464

CHARGE RELIEF KIT

$22.99

$

Usually ships in 3-6 days

0

203

Toro 121-3246

CHARGE PUMP KIT
(Superseded to 114-8465)

$110.99

$

In Stock, only 1 left!

0

207

Toro 121-3247

FAN AND PULLEY KIT

$88.99

$

Usually ships in 3-6 days

0

209

Toro 130-8482

HUB PULLER KIT

$383.99

$

Usually ships in 3-6 days

0

210

Toro 121-3248

INPUT SHAFT KIT

$270.99

$

Usually ships in 3-6 days

0

211

Toro 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0
