74143 (2000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) SEAT ASSEMBLY NO. 120-7886 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

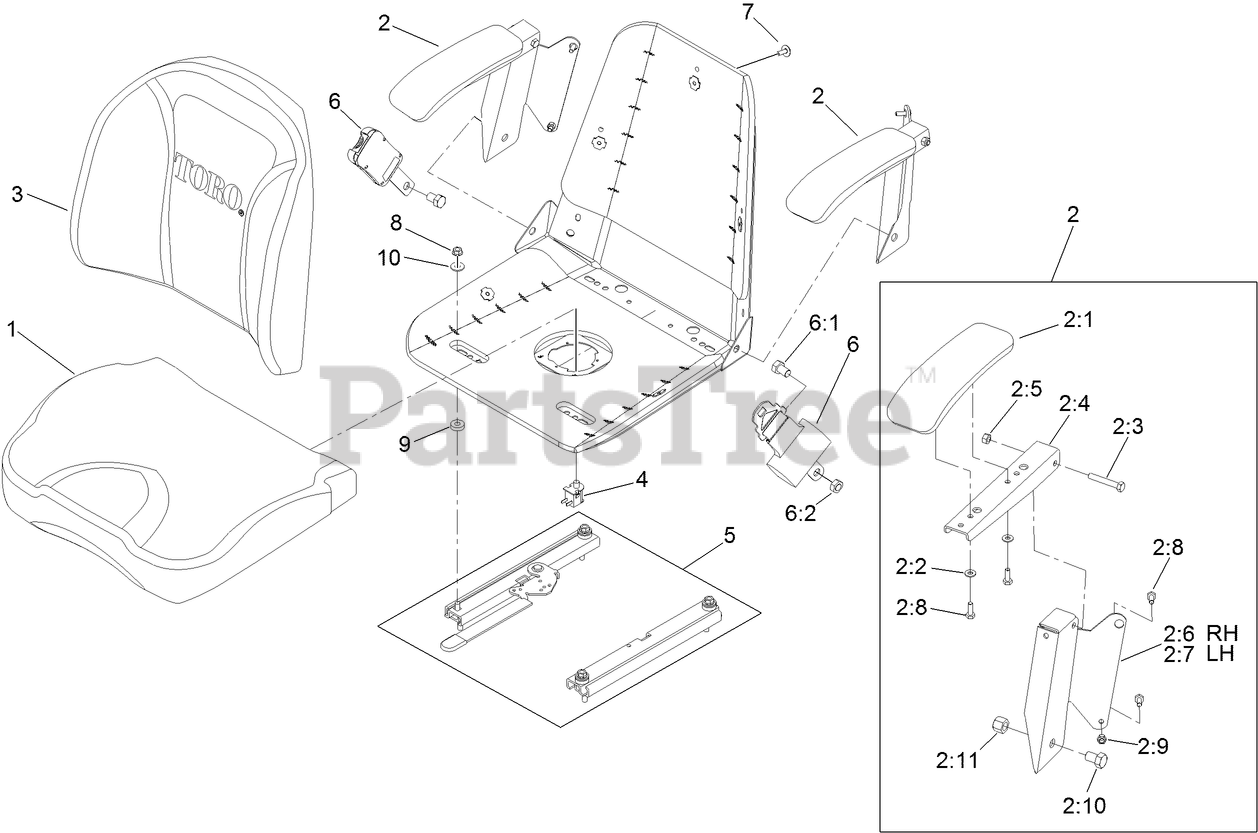

SEAT ASSEMBLY NO. 120-7886 Parts Diagram

  • Title

1

Toro 121-4751

CUSHION-SEAT, BOTTOM

$280.99

$

In Stock, only 1 left!

0

2

Toro 110-5719

ARMREST KIT

$182.99

$

Usually ships in 3-6 days

0

2:1

Toro 110-4163

CUSHION-REST, ARM

$94.99

$

Usually ships in 3-6 days

0

2:2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2:3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2:4

Toro 105-3623

CHANNEL-ARMREST

$70.99

$

Usually ships in 3-6 days

0

2:5

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

2:6

Toro 105-3621

Bracket-Armrest, RH

$111.99

$

Usually ships in 3-6 days

0

2:7

Toro 105-3622

Bracket-Armrest, LH

$111.99

$

Usually ships in 3-6 days

0

2:8

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2:9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2:10

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

2:11

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 121-4752

CUSHION-SEAT, BACK

$280.99

$

Usually ships in 3-6 days

0

4

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

5

Toro 121-4754

TRACK-SEAT

$187.99

$

Usually ships in 3-6 days

0

6

Toro 116-2981

SEAT BELT KIT

$306.99

$

Usually ships in 3-6 days

0

6:1

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

6:2

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 103-8383

BOLT-SEAT

$2.99

$

Usually ships in 3-6 days

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 26-4840

SPACER-PIN, MOUNTING

$6.99

$

Usually ships in 3-6 days

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
