74143 (2000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) LH TRANSAXLE ASSEMBLY NO. 117-2611 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

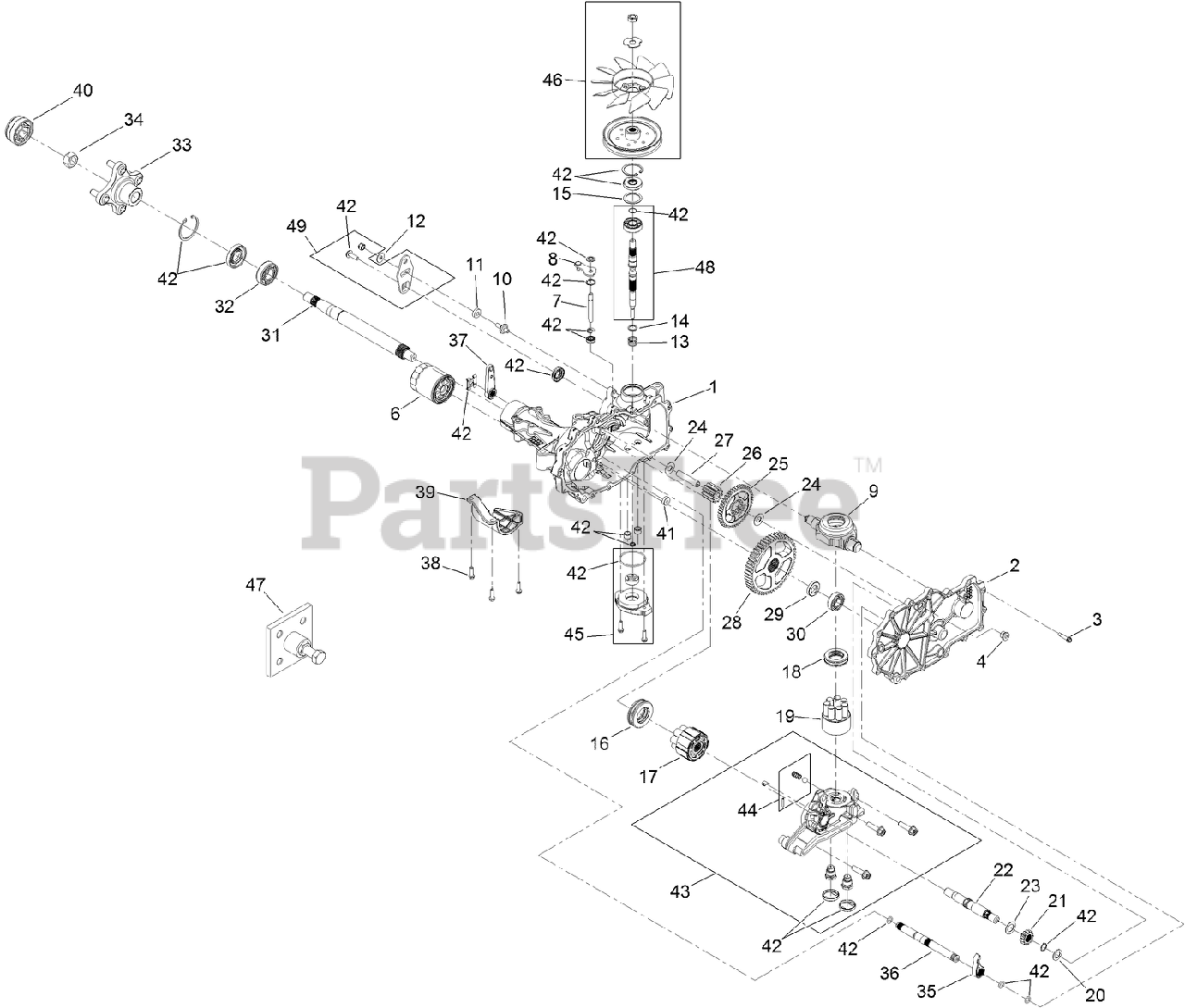

LH TRANSAXLE ASSEMBLY NO. 117-2611 Parts Diagram

  • Title

1

Toro 121-3233

LH MAIN HOUSING KIT

$756.99

$

Usually ships in 3-6 days

0

2

Toro 121-3234

LH SIDE COVER KIT

$421.99

$

Usually ships in 3-6 days

0

3

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

5

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

6

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

7

Toro 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

8

Toro 107-2490

ARM-BYPASS

$58.99

$

Usually ships in 3-6 days

0

9

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

10

Toro 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

11

Toro 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

12

Toro 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

13

Toro 120-5537

SPRING-COMPRESSION
(Superseded to 94-1936)

$8.49

$

Usually ships in 3-6 days

0

14

Toro 120-5538

WASHER

$5.49

$

Usually ships in 3-6 days

0

15

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

16

Toro 109-2865

Bearing-Thrust
(Superseded to 112-4154)

$103.99

$

Usually ships in 3-6 days

0

17

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

18

Toro 121-3235

BEARING-THRUST, PLASTIC CAGE

$36.99

$

Usually ships in 3-6 days

0

19

Toro 121-3236

7 PISTON BLOCK ASM

$263.99

$

Usually ships in 3-6 days

0

20

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

21

Toro 120-7972

GEAR-13T

$99.99

$

Usually ships in 3-6 days

0

22

Toro 114-1691

SHAFT-MOTOR

$169.99

$

Usually ships in 3-6 days

0

23

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

24

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

25

Toro 120-7973

GEAR-46T

$86.99

$

Usually ships in 3-6 days

0

26

Toro 120-7974

GEAR-11T

$75.99

$

Usually ships in 3-6 days

0

27

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

28

Toro 121-3237

GEAR-54T

$104.99

$

Usually ships in 3-6 days

0

29

Toro 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

30

Toro 114-1696

BEARING-BALL

$54.99

$

Usually ships in 3-6 days

0

31

Toro 121-3238

SHAFT-AXLE

$323.99

$

Usually ships in 3-6 days

0

32

Toro 104-2143

BEARING-BALL

$41.99

$

Usually ships in 3-6 days

0

33

Toro 109-5939

HUB KIT

$103.99

$

In Stock, only 3 left!

0

34

Toro 109-3536

NUT-HUB

$22.99

$

Usually ships in 3-6 days

0

35

Toro 114-1697

PAWL-BRAKE

$17.99

$

Usually ships in 3-6 days

0

36

Toro 114-1698

SHAFT-BRAKE, INBOARD

$140.99

$

Usually ships in 3-6 days

0

37

Toro 125-0021

HANDLE-BRAKE

$14.99

$

In Stock, only 1 left!

0

38

Toro 121-3242

SCREW-HF

$

$

Not available

39

Toro 120-7979

GUARD-FILTER, LH

$34.99

$

In Stock, only 1 left!

0

40

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

41

Toro 104-5330

MAGNET-RING

$10.99

$

Usually ships in 3-6 days

0

42

Toro 121-3243

SEAL KIT

$189.99

$

Usually ships in 3-6 days

0

43

Toro 121-3245

LH CENTER SECTION KIT

$621.99

$

Usually ships in 3-6 days

0

44

Toro 114-8464

CHARGE RELIEF KIT

$22.99

$

Usually ships in 3-6 days

0

45

Toro 121-3246

CHARGE PUMP KIT
(Superseded to 114-8465)

$110.99

$

In Stock, only 1 left!

0

46

Toro 121-3247

FAN AND PULLEY KIT

$88.99

$

Usually ships in 3-6 days

0

47

Toro 114-8467

PULLER-HUB, 4 BOLT
(Superseded to 130-8482)

$383.99

$

Usually ships in 3-6 days

0

48

Toro 121-3248

INPUT SHAFT KIT

$270.99

$

Usually ships in 3-6 days

0

49

Toro 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0
