74142 TE (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 315000001 - 315999999) (2015) FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

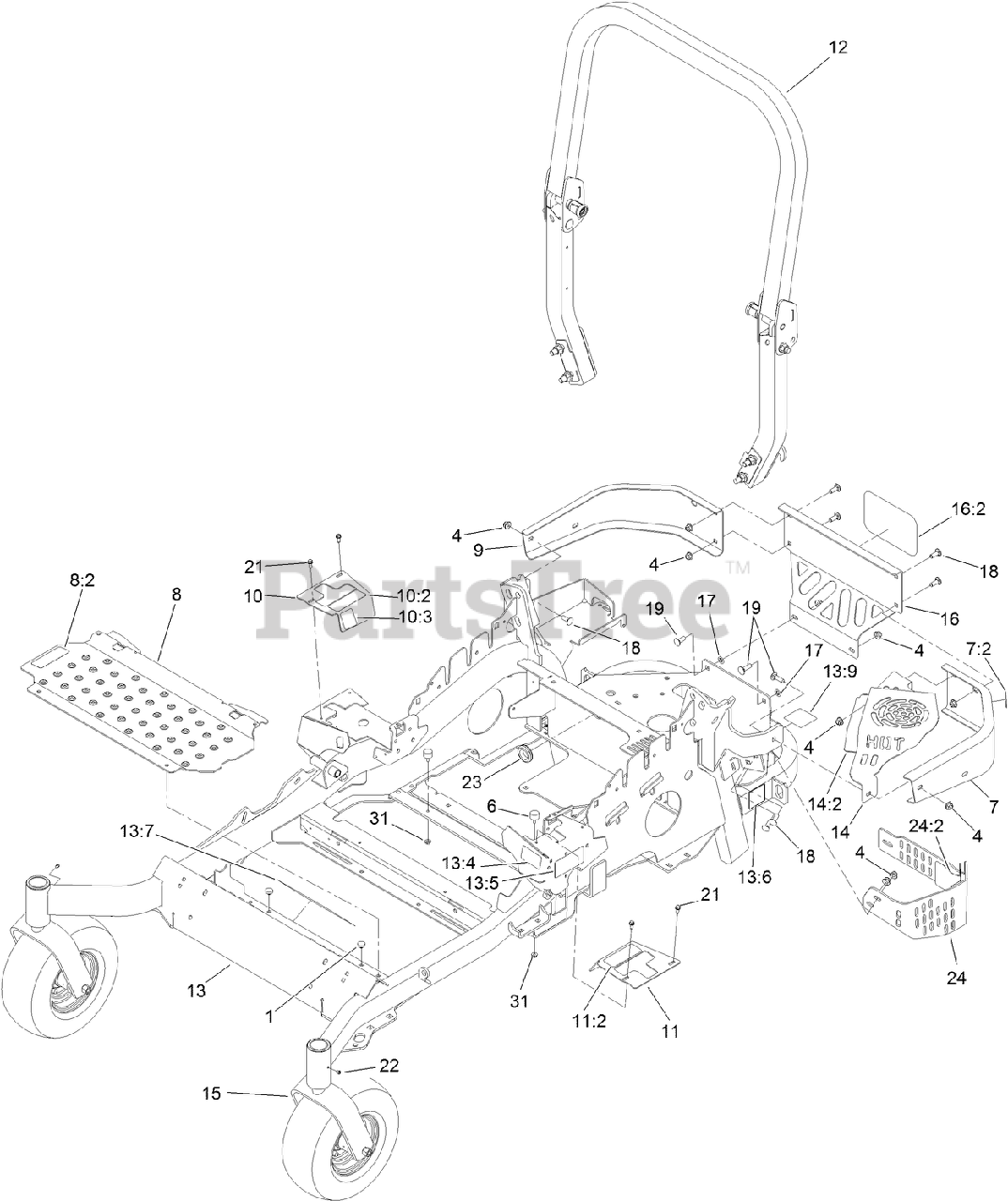

FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 116-6380

BUMPER-RUBBER (W/ STUD)
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

7

Toro 109-9869

BUMPER-REAR, LH

$

$

Not available

7:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

8

Toro 117-0915

FLOORPAN ASM

$217.99

$

Usually ships in 3-6 days

0

8:2

Toro 112-9028

DECAL-MISSING, COVER

$20.99

$

Usually ships in 3-6 days

0

9

Toro 116-0508-03

BUMPER-REAR, RH

$88.99

$

Usually ships in 3-6 days

0

10

Toro 121-4780

RH MOTION CONTROL COVER ASM

$52.99

$

Usually ships in 3-6 days

0

10:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

10:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$13.99

$

In Stock, only 1 left!

0

11

Toro 121-4789

MOTION CONTROL COVER ASM

$47.99

$

Usually ships in 3-6 days

0

11:2

Toro 99-8936

DECAL-CONTROL, MOTION

$20.99

$

In Stock, only 2 left!

0

12

Toro 116-0231

ROPS ASM

$810.99

$

Usually ships in 3-6 days

0

13

Toro 131-7660

FRAME ASM

$

$

Currently unavailable

13:4

Toro 117-3864

DECAL-FUEL FILL, CE

$13.99

$

Usually ships in 3-6 days

0

13:5

$4.99

$

Usually ships in 3-6 days

0

13:6

Toro 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

Usually ships in 3-6 days

0

13:7

Toro 127-0335

DECAL-WARNING, SLOPE

$6.49

$

Usually ships in 3-6 days

0

13:9

Toro 117-1158

DECAL-BYPASS

$6.49

$

Usually ships in 3-6 days

0

14

Toro 121-4800

MUFFLER GUARD ASM W/FOIL

$342.99

$

Usually ships in 3-6 days

0

14:2

Toro 121-4792

FOIL-TAPE

$

$

Currently unavailable

15

FRONT CASTER ASM

Note: Not serviced separately

$

$

Not available

16

Toro 119-2691

REAR GUARD ASM

$131.99

$

Usually ships in 3-6 days

0

16:2

Toro 67-7320

DECAL

$35.99

$

In Stock, only 2 left!

0

17

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 9

0

18

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

21

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

22

$5.49

$

In Stock, Qty 11

0

23

Toro 120-3265

GROMMET

$4.49

$

Usually ships in 3-6 days

0

24

Toro 121-4781

LH LOWER MUFFLER GUARD ASM

$230.99

$

Usually ships in 3-6 days

0

24:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

31

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+
