48" Z Master Zero-Turn Mower, Side-Discharge Deck

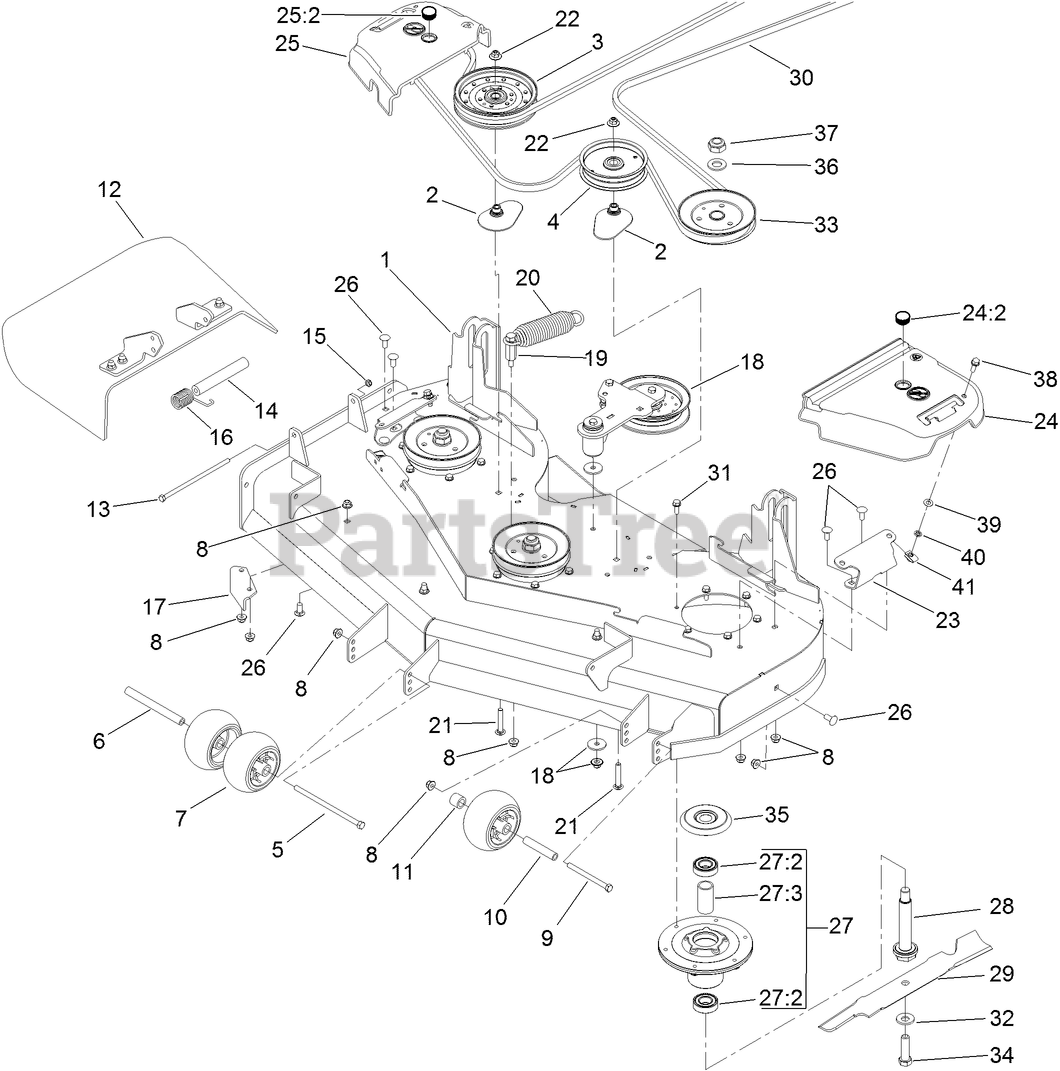

Deck Assembly Parts Diagram

  • Title

1

Toro 121-3241

DECK DECAL ASM

$1840.99

$

Usually ships in 3-6 days

0

2

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

3

Toro 116-4670

See Supercession: 136-5404
(Superseded to 136-5404)

$60.99

$

In Stock, only 1 left!

0

4

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

0

5

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

6

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

7

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

10

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

11

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

12

Toro 120-2451

DEFLECTOR ASM

$239.99

$

Usually ships in 3-6 days

0

13

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

14

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

16

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

17

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

18

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

19

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

20

Toro 116-0133

See Supercession: 116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

21

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

22

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 114-5881-01

BRACKET-COVER, BELT

$83.99

$

Usually ships in 3-6 days

0

24

Toro 117-7814

LH BELT COVER ASM

$42.99

$

Usually ships in 3-6 days

0

24:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

25

Toro 117-7813

RH BELT COVER ASM

$42.99

$

Usually ships in 3-6 days

0

25:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

26

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

27

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$102.99

$

In Stock, only 2 left!

0

27:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 10

0

27:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

28

Toro 120-2505

SPINDLE-SHAFT

$56.99

$

In Stock, only 2 left!

0

29

Toro 117-7277-03

BLADE-HI FLO, 16.50 INCH

$27.99

$

In Stock, only 3 left!

0

30

Toro 120-2409

See Supercession: 119-9926
(Superseded to 119-9926)

$151.99

$

In Stock, only 1 left!

0

31

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Toro 22-8520

See Supercession: 125-1736
(Superseded to 125-1736)

$4.49

$

In Stock, only 3 left!

0

33

Toro 120-7854

PULLEY-B SECTION

$76.99

$

In Stock, only 4 left!

0

34

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

35

Toro 117-7210

SHIELD-BEARING

$10.99

$

In Stock, only 2 left!

0

36

Toro 92-5836

WASHER

$5.99

$

In Stock, only 1 left!

0

37

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, only 4 left!

0

38

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

39

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

40

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

41

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0
