74141 (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 315000001 - 315999999) (2015) DECK ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

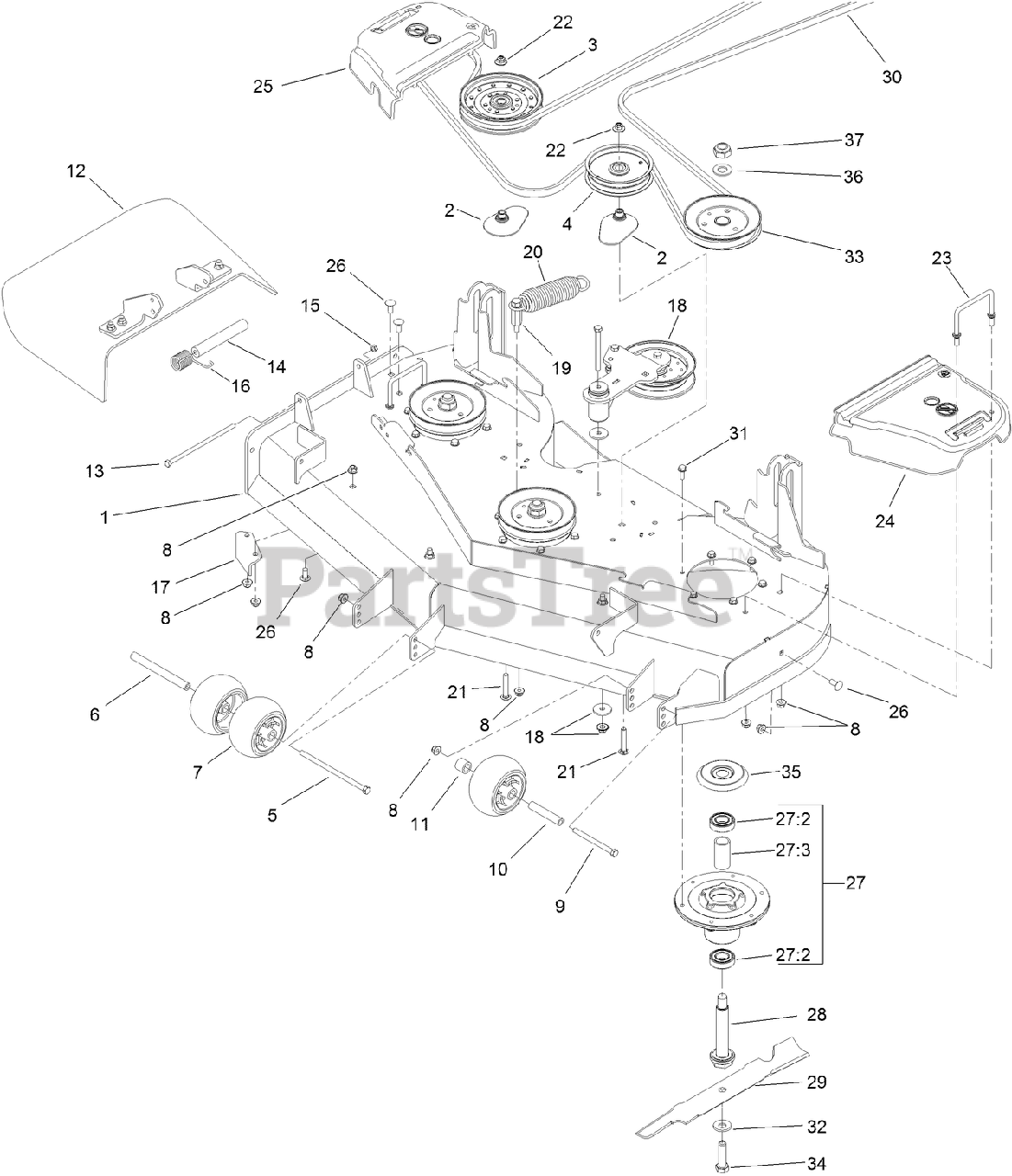

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 131-7664

DECK ASM

$2724.99

$

In Stock, only 1 left!

0

2

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

3

Toro 116-4670

PULLEY-IDLER, FLAT
(Superseded to 136-5404)

$60.99

$

In Stock, only 1 left!

0

4

Toro 116-4665

PULLEY-IDLER, FLAT
(Superseded to 136-5405)

$48.99

$

In Stock, only 1 left!

0

5

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

6

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

7

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

10

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

11

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

12

Toro 120-2451

DEFLECTOR ASM

$239.99

$

Usually ships in 3-6 days

0

13

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

14

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

16

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

17

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

18

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

19

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

20

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

21

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

22

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

24

Toro 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

25

Toro 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

26

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

27

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$102.99

$

In Stock, only 2 left!

0

27:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 10

0

27:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

28

Toro 120-2505

SPINDLE-SHAFT

$56.99

$

In Stock, only 2 left!

0

29

Toro 117-7277-03

BLADE-HI FLO, 16.50 INCH

$27.99

$

In Stock, only 3 left!

0

30

Toro 119-9926

BELT-V

$151.99

$

In Stock, only 1 left!

0

31

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 3 left!

0

33

Toro 120-7854

PULLEY-B SECTION

$76.99

$

In Stock, only 4 left!

0

34

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

35

Toro 117-7210

SHIELD-BEARING

$10.99

$

In Stock, only 2 left!

0

36

Toro 92-5836

WASHER

$5.99

$

In Stock, only 1 left!

0

37

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, only 4 left!

0
