74141 (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) HYDRO IDLER ARM ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

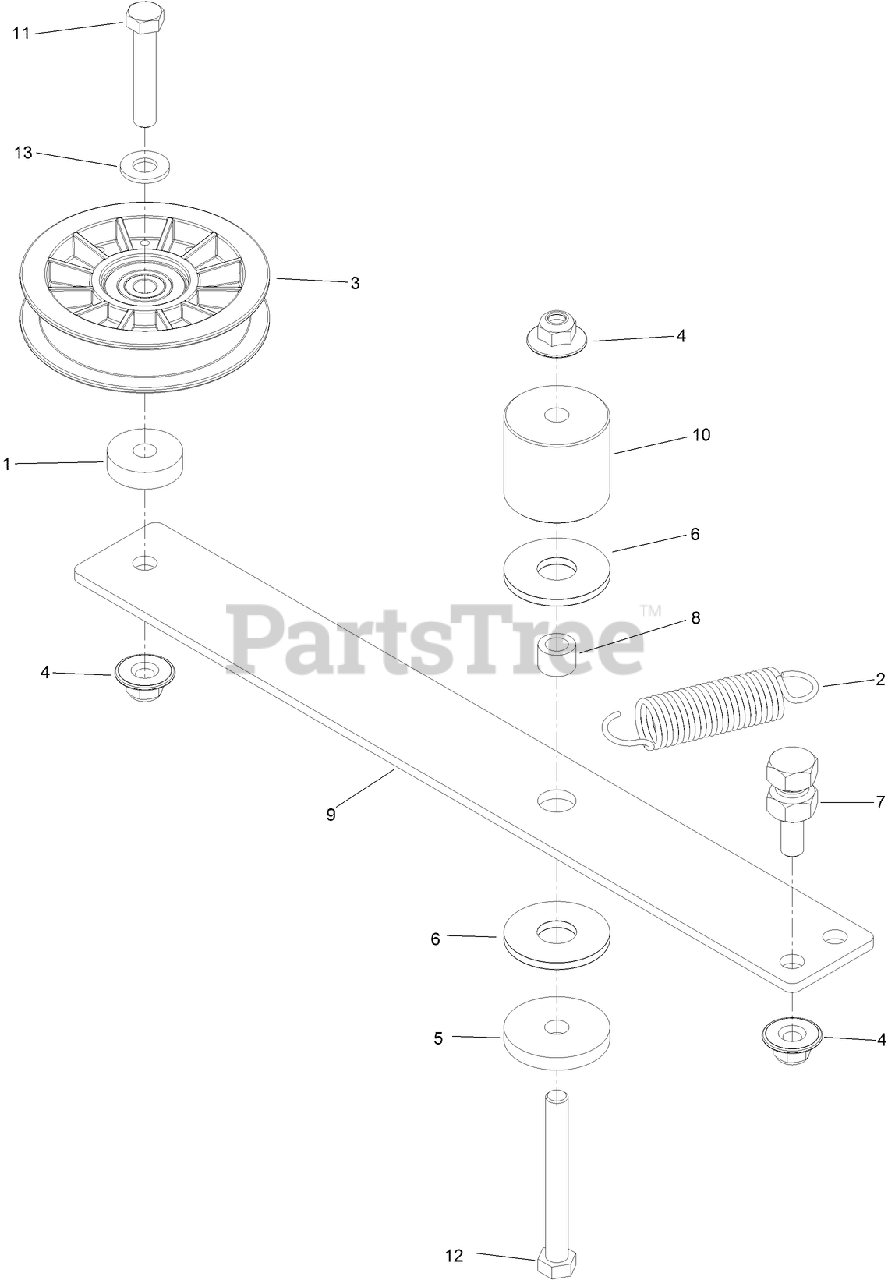

HYDRO IDLER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 105-7788

Spacer

$9.49

$

In Stock, Qty 10

0

2

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

3

Toro 109-3397

PULLEY-IDLER, FLAT

$23.99

$

In Stock, Qty 20+

0

4

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, Qty 11

0

6

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

7

Toro 114-5866

ANCHOR-SPRING, SHORT
(Superseded to 132-4729)

$6.99

$

In Stock, only 4 left!

0

8

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

9

Toro 119-9914

ARM-IDLER, HYDRO

$34.99

$

In Stock, only 1 left!

0

10

Toro 119-2657

SPACER-PLAIN

$35.99

$

Usually ships in 3-6 days

0

11

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
