74141 (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) ELECTRICAL ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

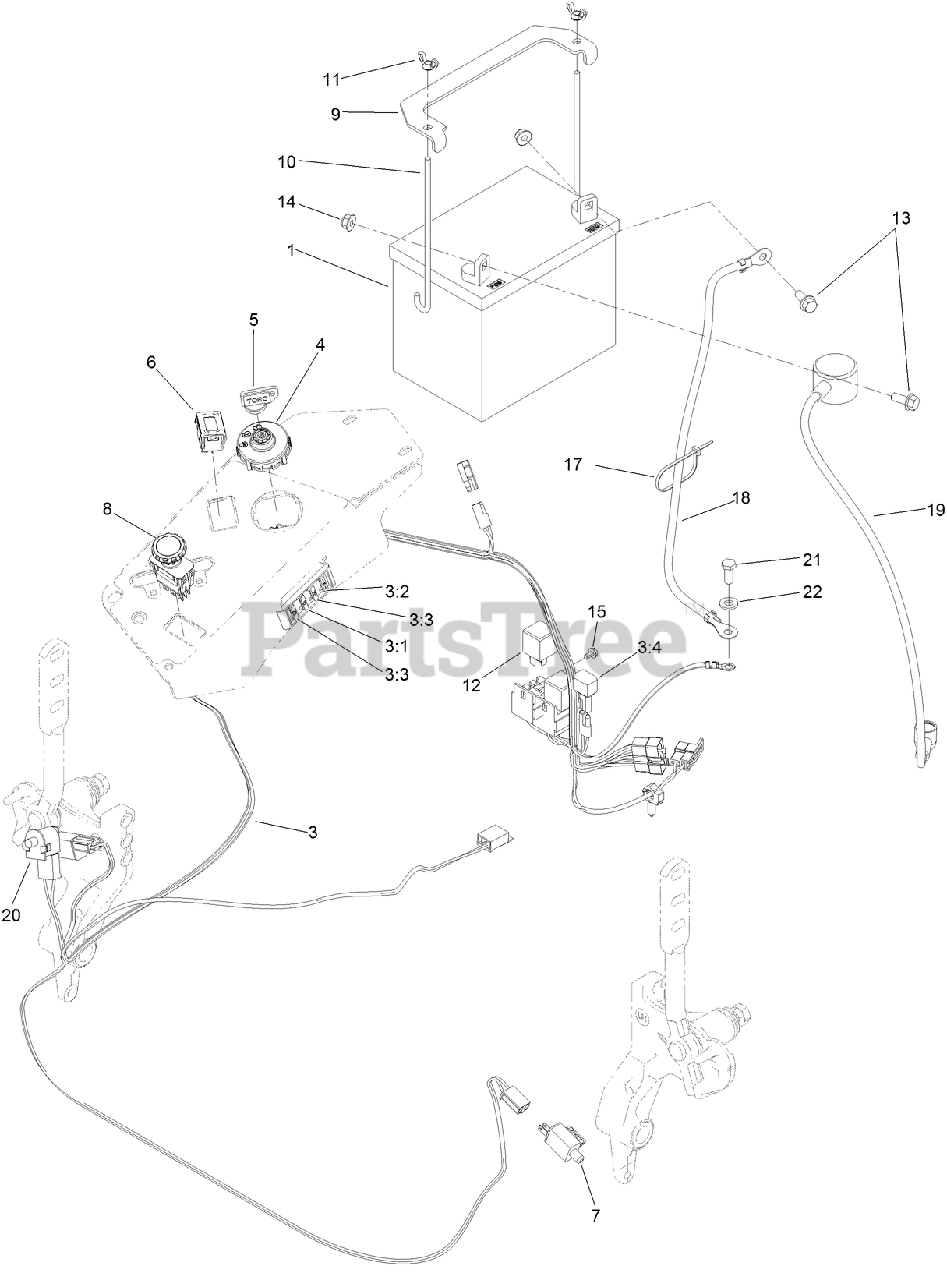

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8162

BATTERY-DRY

$

$

Not available

3

Toro 117-2582

HARNESS-WIRE

$288.99

$

Usually ships in 3-6 days

0

3:1

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

3:2

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

3:3

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

3:4

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

4

Toro 117-2221

SWITCH-IGNITION
(Superseded to 137-4100)

$35.99

$

In Stock, Qty 20+

0

5

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 15

0

6

Toro 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

7

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 12

0

8

Toro 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$68.99

$

In Stock, Qty 9

0

9

Toro 116-0042-03

STRAP-TIE DOWN, BATTERY

$22.99

$

In Stock, only 1 left!

0

10

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 13

0

11

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

12

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

13

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 6

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

17

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

18

Toro 114-1218

CABLE-BATTERY, NEGATIVE

$23.99

$

In Stock, only 1 left!

0

19

Toro 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

In Stock, only 1 left!

0

20

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

21

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0
