74141 (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) LH TRANSAXLE ASSEMBLY NO. 120-7860 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

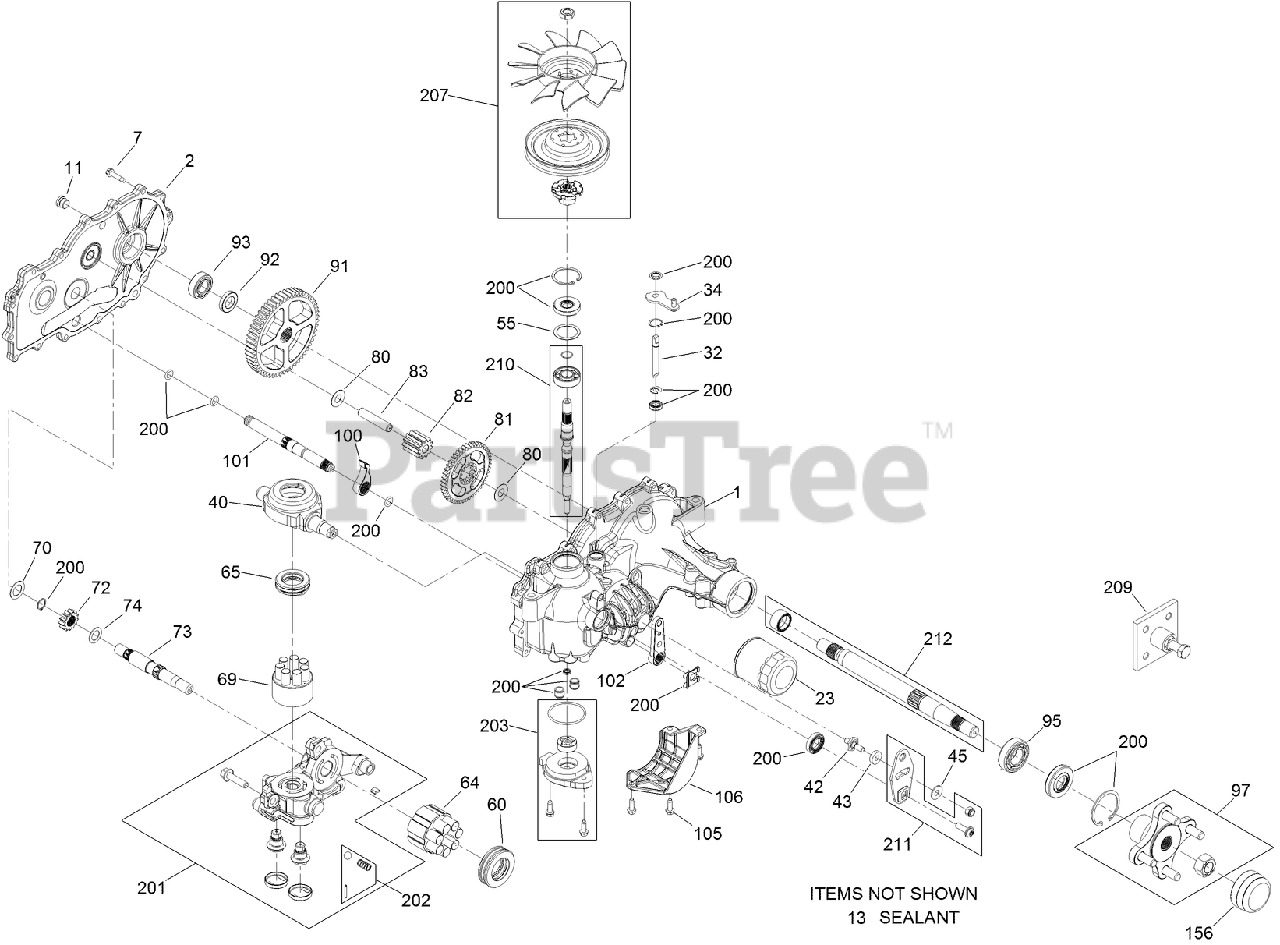

LH TRANSAXLE ASSEMBLY NO. 120-7860 Parts Diagram

  • Title

1

Toro 114-8471

LH MAIN HOUSING KIT

$613.99

$

In Stock, only 1 left!

0

2

Toro 114-8472

LH SIDE COVER KIT

$

$

Not available

7

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

13

Toro 104-2147

SEALANT

$110.99

$

Usually ships in 3-6 days

0

23

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

32

Toro 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

34

Toro 107-2490

ARM-BYPASS

$58.99

$

Usually ships in 3-6 days

0

40

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

42

Toro 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

43

Toro 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

45

Toro 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

55

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

60

Toro 109-2865

BEARING-THRUST
(Superseded to 112-4154)

$103.99

$

Usually ships in 3-6 days

0

64

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

65

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

69

Toro 110-8561

PUMP BLOCK ASM

$347.99

$

Usually ships in 3-6 days

0

70

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

72

Toro 120-7972

GEAR-13T

$99.99

$

Usually ships in 3-6 days

0

73

Toro 114-1691

SHAFT-MOTOR

$169.99

$

Usually ships in 3-6 days

0

74

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

80

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

81

Toro 120-7973

GEAR-46T

$86.99

$

Usually ships in 3-6 days

0

82

Toro 120-7974

GEAR-11T

$75.99

$

Usually ships in 3-6 days

0

83

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

91

Toro 114-1694

GEAR-54T

$139.99

$

In Stock, only 2 left!

0

92

Toro 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

93

Toro 114-1696

BEARING-BALL

$54.99

$

Usually ships in 3-6 days

0

95

Toro 120-7976

BEARING-BALL
(Superseded to 130-8477)

$25.99

$

Usually ships in 3-6 days

0

97

Toro 109-5939

HUB KIT

$103.99

$

In Stock, only 3 left!

0

100

Toro 114-1697

PAWL-BRAKE

$17.99

$

Usually ships in 3-6 days

0

101

Toro 114-1698

SHAFT-BRAKE, INBOARD

$140.99

$

Usually ships in 3-6 days

0

102

Toro 125-0021

HANDLE-BRAKE

$14.99

$

In Stock, only 1 left!

0

105

Toro 104-2120

SCREW

$7.99

$

In Stock, only 1 left!

0

106

Toro 120-7979

GUARD-FILTER, LH

$34.99

$

In Stock, only 1 left!

0

156

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

200

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

$90.99

$

In Stock, only 1 left!

0

201

Toro 120-7980

LH CENTER SECTION CHARGE KIT

$508.99

$

Usually ships in 3-6 days

0

202

Toro 114-8464

CHARGE RELIEF KIT

$22.99

$

Usually ships in 3-6 days

0

203

Toro 114-8465

CHARGE KIT

$110.99

$

In Stock, only 1 left!

0

207

Toro 121-2988

FAN AND PULLEY KIT
(Superseded to 135-7344)

$99.99

$

Usually ships in 3-6 days

0

209

Toro 114-8467

PULLER-HUB, 4 BOLT
(Superseded to 130-8482)

$383.99

$

Usually ships in 3-6 days

0

210

Toro 117-5361

INPUT SHAFT KIT
(Superseded to 121-3248)

$270.99

$

Usually ships in 3-6 days

0

211

Toro 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0

212

Toro 114-8470

AXLE SHAFT KIT

$265.99

$

Usually ships in 3-6 days

0
