74141 (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

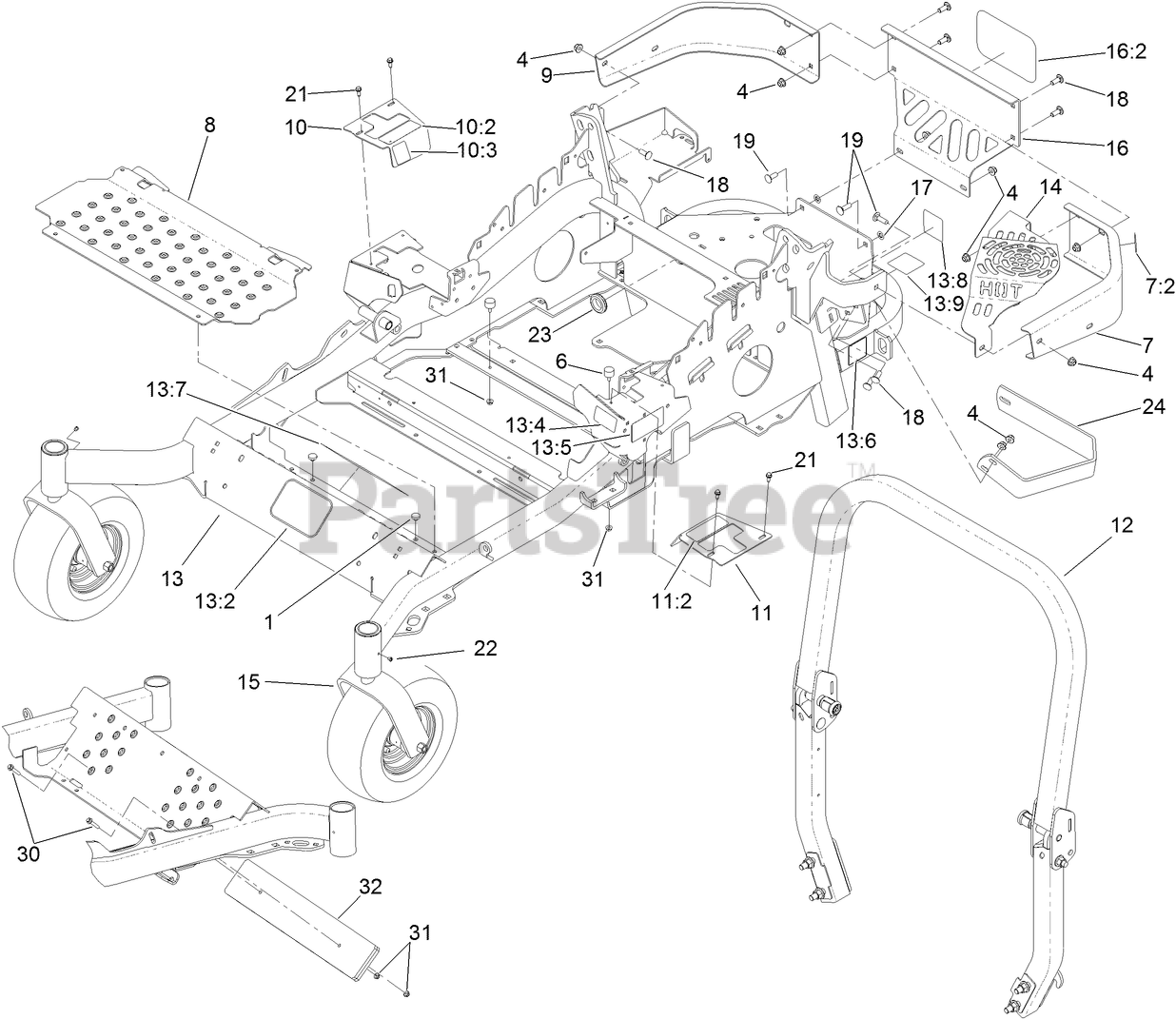

FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 20+

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 116-6380

BUMPER-RUBBER (W/ STUD)
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

7

Toro 109-9869

BUMPER-REAR, LH

$

$

Not available

7:2

Toro 103-2076

DECAL-CAUTION

$6.49

$

Usually ships in 3-6 days

0

8

Toro 116-0024-01

FLOORPAN
(Superseded to 116-8898-01)

$108.99

$

Usually ships in 3-6 days

0

9

Toro 116-0508-03

BUMPER-REAR, RH

$90.99

$

Usually ships in 3-6 days

0

10

Toro 120-3280

COVER ASM-MOTION CONTROL

$47.99

$

Usually ships in 3-6 days

0

10:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

10:3

Toro 116-5944

DECAL-PARK BRAKE

$14.99

$

In Stock, Qty 14

0

11

Toro 120-3279

COVER ASM-MOTION CONTROL

$47.99

$

Usually ships in 3-6 days

0

11:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

12

Toro 116-0231

ROPS ASM

$816.99

$

Usually ships in 3-6 days

0

13

Toro 117-8581

FRAME ASM

$2879.99

$

Usually ships in 3-6 days

0

13:2

Toro 68-3640

DECAL

$20.99

$

In Stock, Qty 17

0

13:4

Toro 116-1654

DECAL-FUEL FILL

$5.49

$

Usually ships in 3-6 days

0

13:5

Toro 120-5891

DECAL

$5.49

$

Usually ships in 3-6 days

0

13:6

Toro 116-0205

DECAL-BELT DRIVE

$8.49

$

Usually ships in 3-6 days

0

13:7

Toro 116-3303

DECAL-SLOPE

$17.99

$

Usually ships in 3-6 days

0

13:8

Toro 116-4858

DECAL-SPARK ARRESTER

$3.49

$

Usually ships in 3-6 days

0

13:9

Toro 117-1158

DECAL-BYPASS

$6.49

$

Usually ships in 3-6 days

0

14

Toro 120-7896-03

GUARD-MUFFLER

$166.99

$

Usually ships in 3-6 days

0

15

FRONT CASTER ASM

Note: Not serviced separately

$

$

Not available

16

Toro 119-2691

REAR GUARD ASM

$135.99

$

Usually ships in 3-6 days

0

16:2

Toro 67-7320

DECAL

$36.99

$

In Stock, only 2 left!

0

17

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

18

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

21

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

22

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

23

Toro 120-3265

GROMMET

$4.49

$

Usually ships in 3-6 days

0

24

Toro 119-2607-03

GUARD-MUFFLER, SIDE

$52.99

$

Usually ships in 3-6 days

0

30

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

31

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 121-4773-01

WEIGHT

$71.99

$

Usually ships in 3-6 days
