74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) STARTER Parts Diagram

Zero-Turn Mower, Drive Unit Only

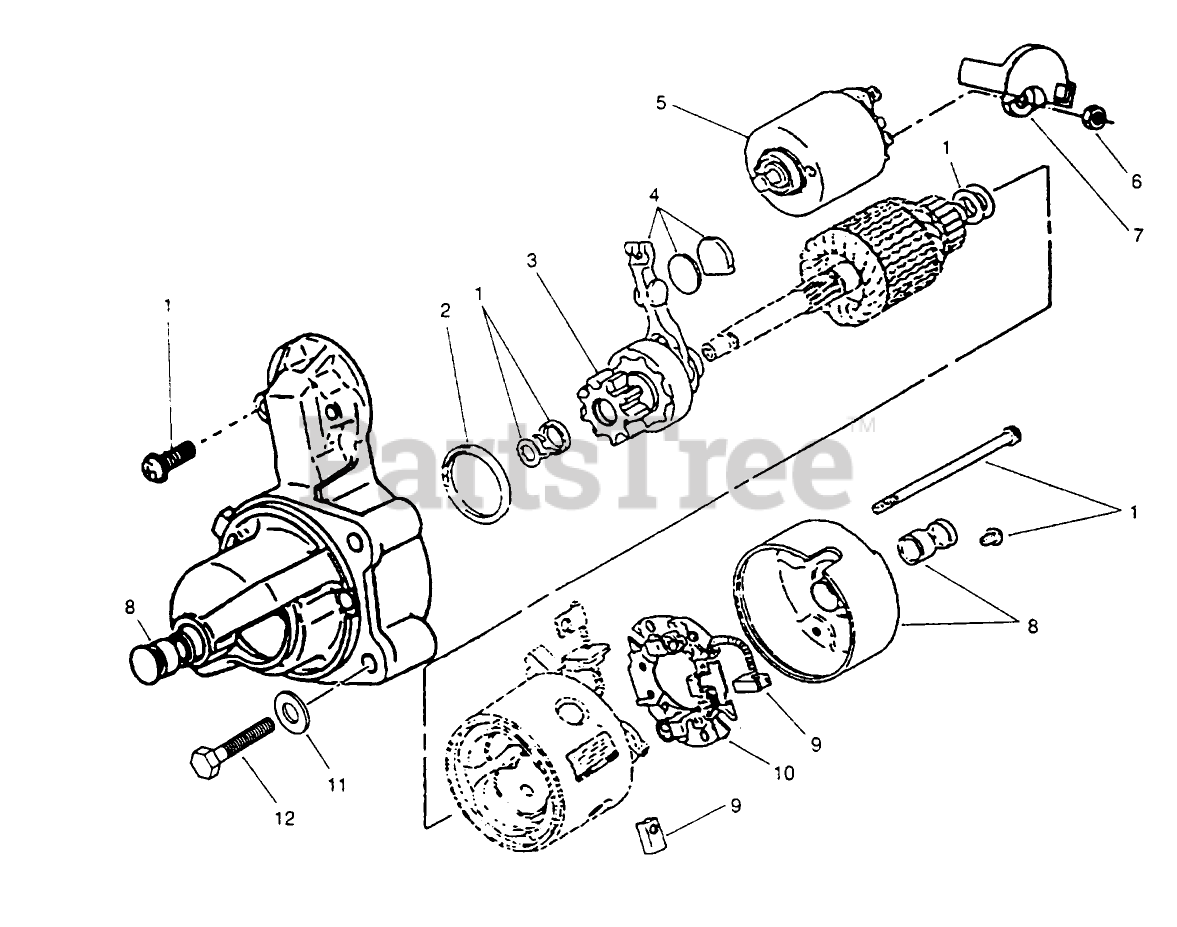

STARTER Parts Diagram

  • Title

1

Toro 62-2760

Kit-Hardware, Starter (Incl. Solenoid Screws, Brush Holder Screws, Thru Bolts, Shims, Pinion Stop Collar, & Pinion Retaining Rings)

$

$

Not available

2

Toro NN10886

DUST-SEAL KIT

$

$

Not available

3

Toro 72-3940

CLUTCH STARTER ASSEMBLY

$

$

Not available

4

Toro 62-2770

LEVER

$

$

Not available

5

Toro 72-3930

STARTER SOLENOID KIT

$

$

Not available

6

Toro 82-1730

Nut-Hex.
(Superseded to 92-5935)

$

$

Not available

7

Toro NN10930

Cap-Starter Solenoid
(Superseded to 82-1720)

$

$

Not available

8

Toro 62-2730

Kit-Bushing, Starter (Incl. Rear Cap, Front & Rear Bushings)

$

$

Not available

9

Toro 62-2740

Kit-Brush, Starter (Incl. Ref. #10)

$

$

Not available

10

Holder-Brush, Starter

$

$

Not available

11

Toro 57-9770

WASHER

$

$

Not available

12

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

Toro 62-2710

STARTER

Note: Not illustrated

$

$

Not available

13

Toro NN10929

KIT-MTG BRKT

$528.99

$

Usually ships in 3-6 days

0

14

Toro 57-9770

WASHER

$

$

Not available
