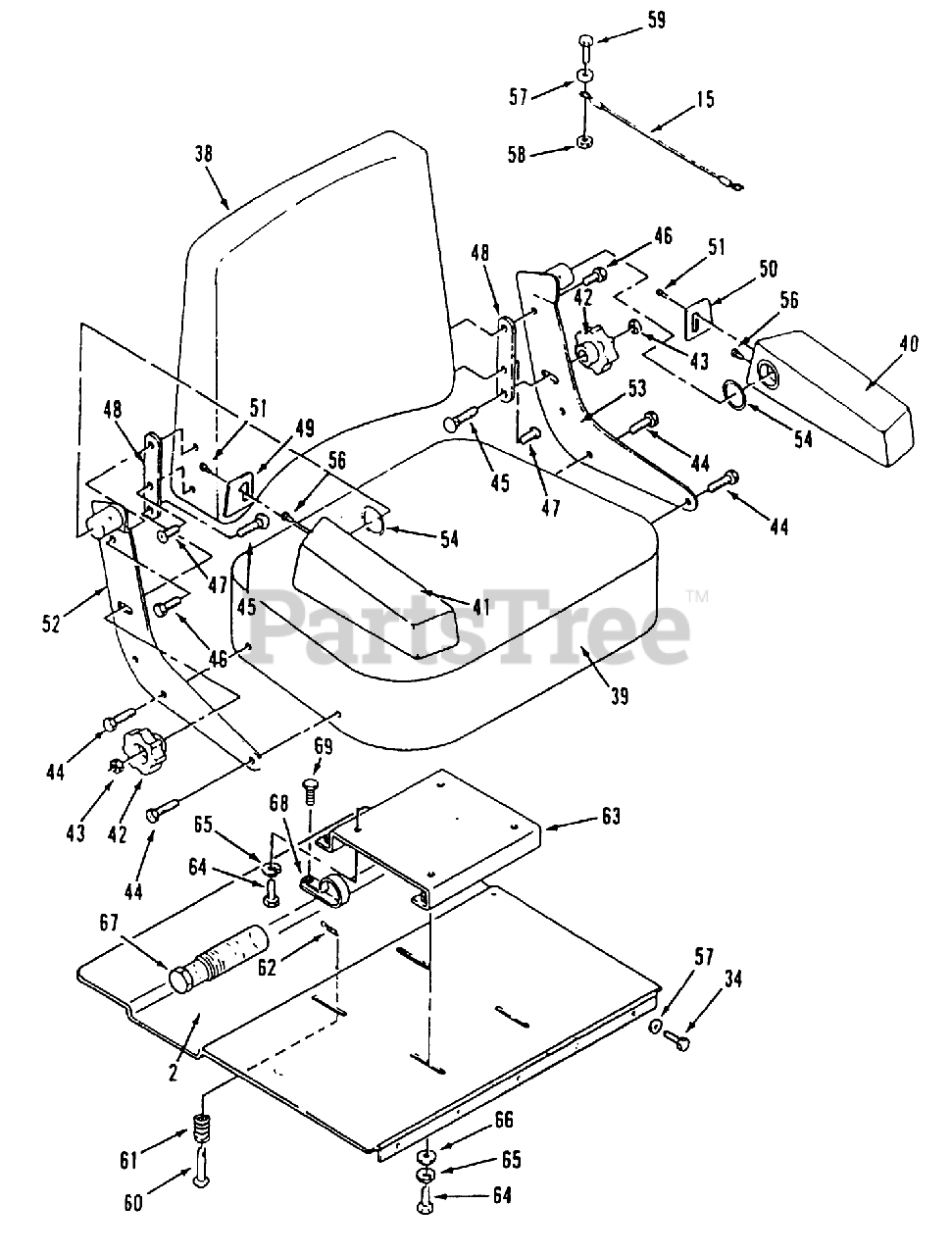

74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) SEAT Parts Diagram

Zero-Turn Mower, Drive Unit Only

SEAT Parts Diagram

  • Title
2

Toro 92-4075

WLDMT-SEAT BRKT B

$421.99

$

Usually ships in 3-6 days

0

15

Toro 115850

Cable

$

$

Not available

34

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 88-2150

SEAT BACK

$803.99

$

Usually ships in 3-6 days

0

39

Toro 88-2160

SEAT BOTTOM

$

$

Not available

40

Toro 40103

ARM REST LH

$

$

Not available

41

Toro 40104

ARM REST RH

$

$

Not available

42

Toro 88-3250

KNOB, LUMBAR CONTROL

$

$

Not available

43

Toro 88-3250

KNOB, LUMBAR CONTROL

$

$

Not available

44

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

45

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

46

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

47

Toro 908849

FLAT HEAD MACH SCREW

$

$

Not available

48

Toro 88-3300

FRICTION PLATE

$

$

Not available

49

Toro 40224

ARM REST PLATE RH

$

$

Not available

50

Toro 40225

ARM REST PLATE LH

$

$

Not available

51

Toro S102

SCREW PAN HD 10-16X5

$

$

Not available

52

Toro 88-3310

RH BACK SUPPORT

$

$

Not available

53

Toro 40226

BACK SUPT LH

$

$

Not available

54

Toro W114

WASHER

$

$

Not available

56

Toro 911037

SHCS 1/4-20 X 1/2

$

$

Not available

57

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

58

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

59

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

60

$7.99

$

Usually ships in 3-6 days

0

61

Toro 116195

SPRING-COMPRESSION

$

$

Not available

62

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

63

Toro 113585

ASS'Y-SUPPORT SEA B

$

$

Not available

64

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

65

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

66

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

67

Toro 74-0720

TUBE-MANUAL

$23.99

$

Usually ships in 3-6 days

0

68

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

69

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

Toro 113698

Seat Asm. (Incl. all Items except #2, 34, 57, & 60 thru 66)

Note: Not illustrated

$

$

Not available
