74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) FENDERS AND COVERS Parts Diagram

Zero-Turn Mower, Drive Unit Only

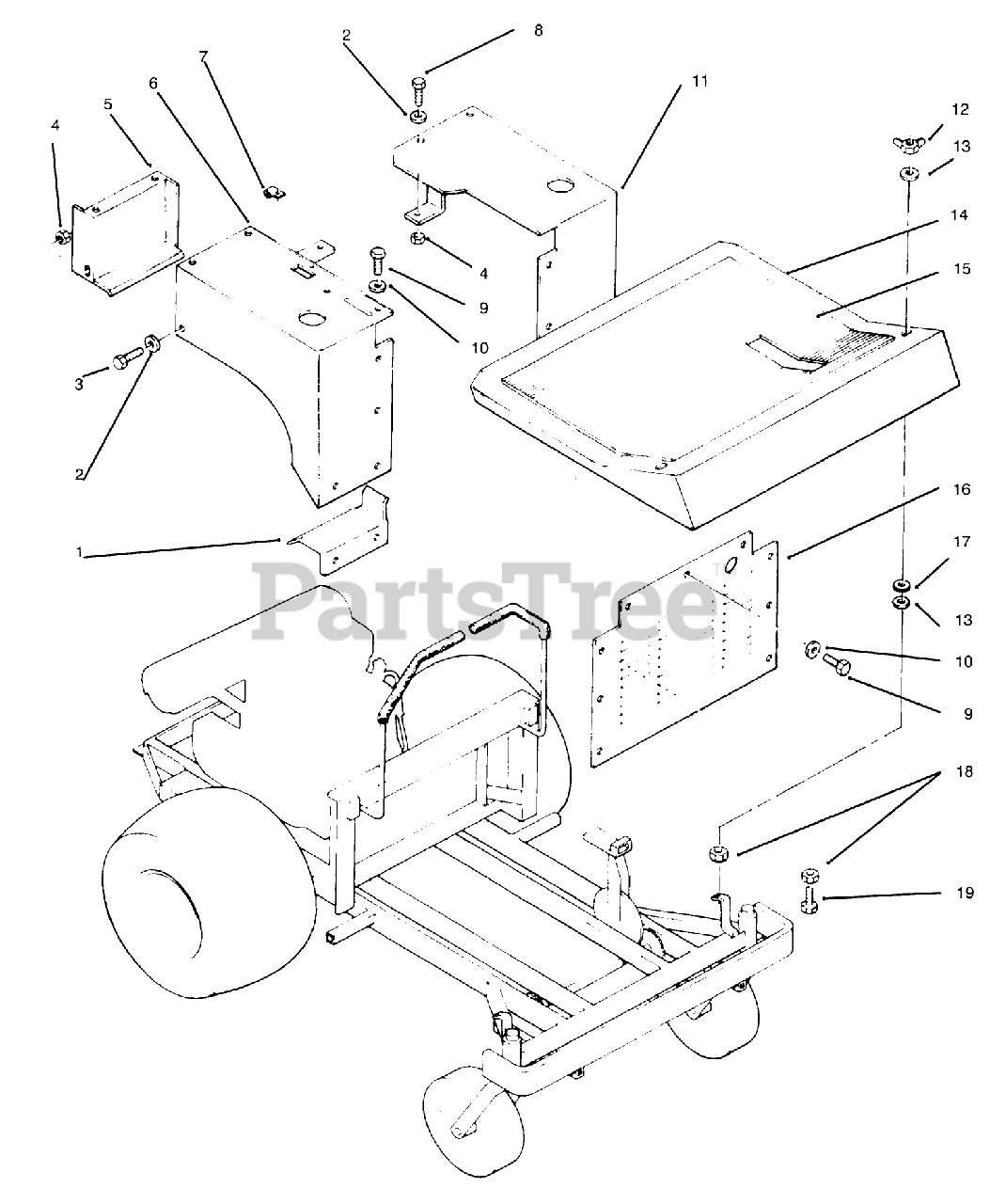

FENDERS AND COVERS Parts Diagram

  • Title

1

Toro 111911

Bracket-Fender Frt RH
(Superseded to 111911-01)

$

$

Not available

Toro 111912

Bracket-Fender Frt LH
(Superseded to 111912-01)

Note: Not illustrated

$

$

Not available

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

5

Toro 111909

Bracket-Fender Rear RH
(Superseded to 111909-01)

$

$

Not available

Toro 111910

Bracket-Fender Rear LH
(Superseded to 111910-01)

Note: Not illustrated

$

$

Not available

6

Toro 79-5630

FENDER WA RH R

$365.99

$

Usually ships in 3-6 days

0

7

Toro 111357

J-CLIP

$

$

Not available

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 113659

Fender LH
(Superseded to 113659-01)

$

$

Not available

12

Toro 915585

WING NUT

$

$

Not available

13

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

14

Toro 111891

Floor Pan
(Superseded to 111891-01)

$

$

Not available

15

Toro 93-3226

MAT - FOOTREST

$217.99

$

Usually ships in 3-6 days

0

16

Toro 79-2710

Front Panel
(Superseded to 79-2710-01)

$

$

Not available

17

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

18

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

19

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0
