74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) ATTACHMENT HEIGHT CONTROL Parts Diagram

Zero-Turn Mower, Drive Unit Only

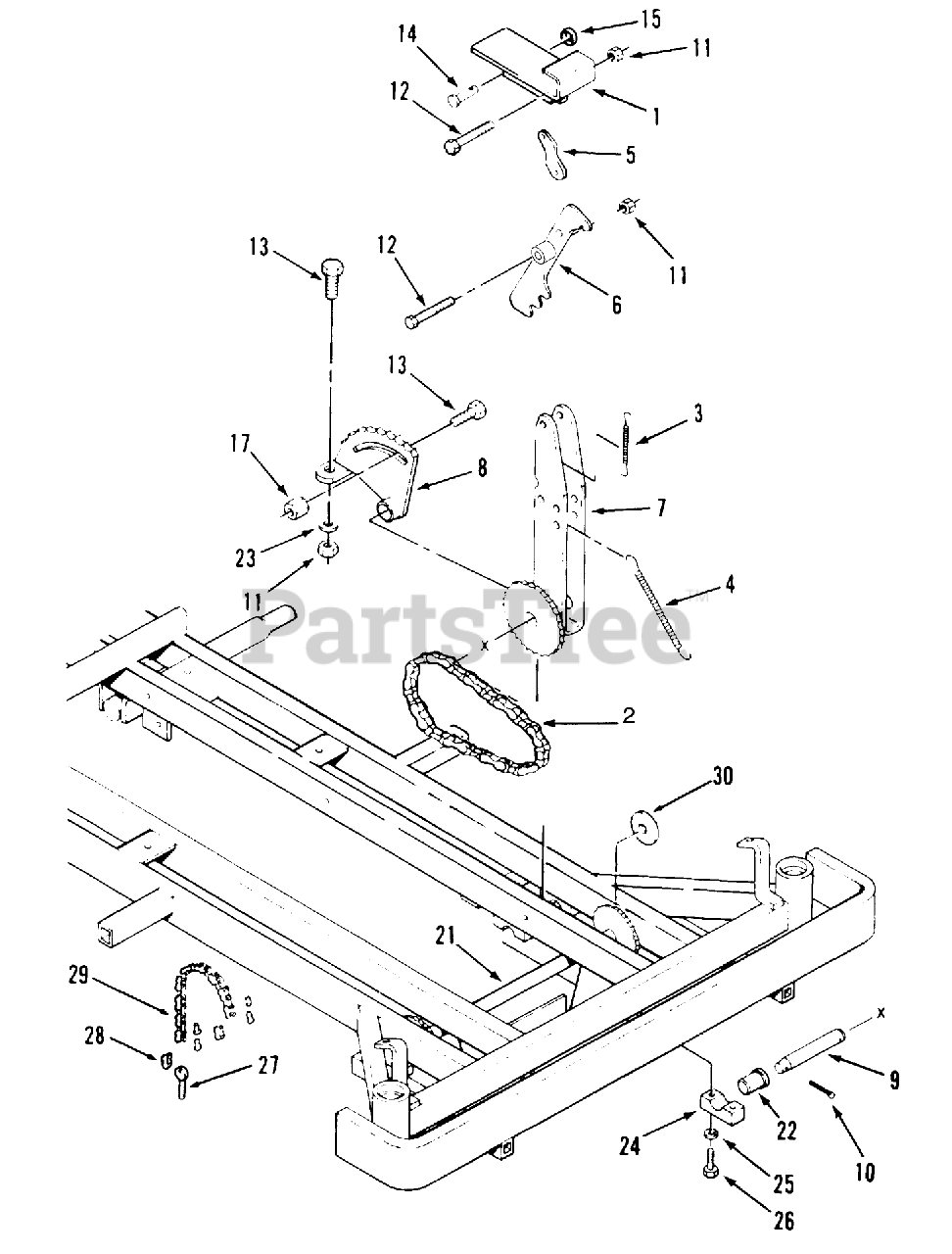

ATTACHMENT HEIGHT CONTROL Parts Diagram

  • Title

1

Toro 112954

PEDAL-FOOT 10218- B

$

$

Not available

2

Toro 115855

CHAIN-FOOT PEDAL DR

$

$

Not available

3

Toro 113081

SPG-NEUTRAL 20217-35

$14.99

$

In Stock, only 3 left!

0

4

Toro 114183

SPRING - EXTENSION

$

$

Not available

5

Toro 112955

PIVOT-LINK B

$

$

Not available

6

Toro 112956

LIFT-ARM PWL B

$

$

Not available

7

Toro 112957

ASSY-LVR ARM 1022 B

$

$

Not available

8

Toro 112958

HEIGHT CONTROL SP B

$

$

Not available

9

Toro 113149

PIN-PEDAL

$

$

Not available

10

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

12

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 114613

PIN-LOCK

$

$

Not available

15

Toro 100307

E RING

$

$

Not available

17

Toro 112941

HEX-STOP NUT N-140

$

$

Not available

21

Toro 113684

ASM-Sprocket
(Superseded to 113684-03)

$334.99

$

Usually ships in 3-6 days

0

22

Toro 113687

BEARING-FLANGED

$

$

Not available

23

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

24

Toro 114294

ASS'Y-CR SH PIVOT BK B

$

$

Not available

25

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

26

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 113697

EYE-BOLT 3/8-16X2.50

$

$

Not available

28

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

$6.49

$

In Stock, only 1 left!

0

29

Toro 113699

CHAIN-DECK LIFT

$

$

Not available

30

Toro 9202254

WASHER

$3.99

$

In Stock, only 2 left!

0
