74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) TRANSMISSION DRIVE FRAME Parts Diagram

Zero-Turn Mower, Drive Unit Only

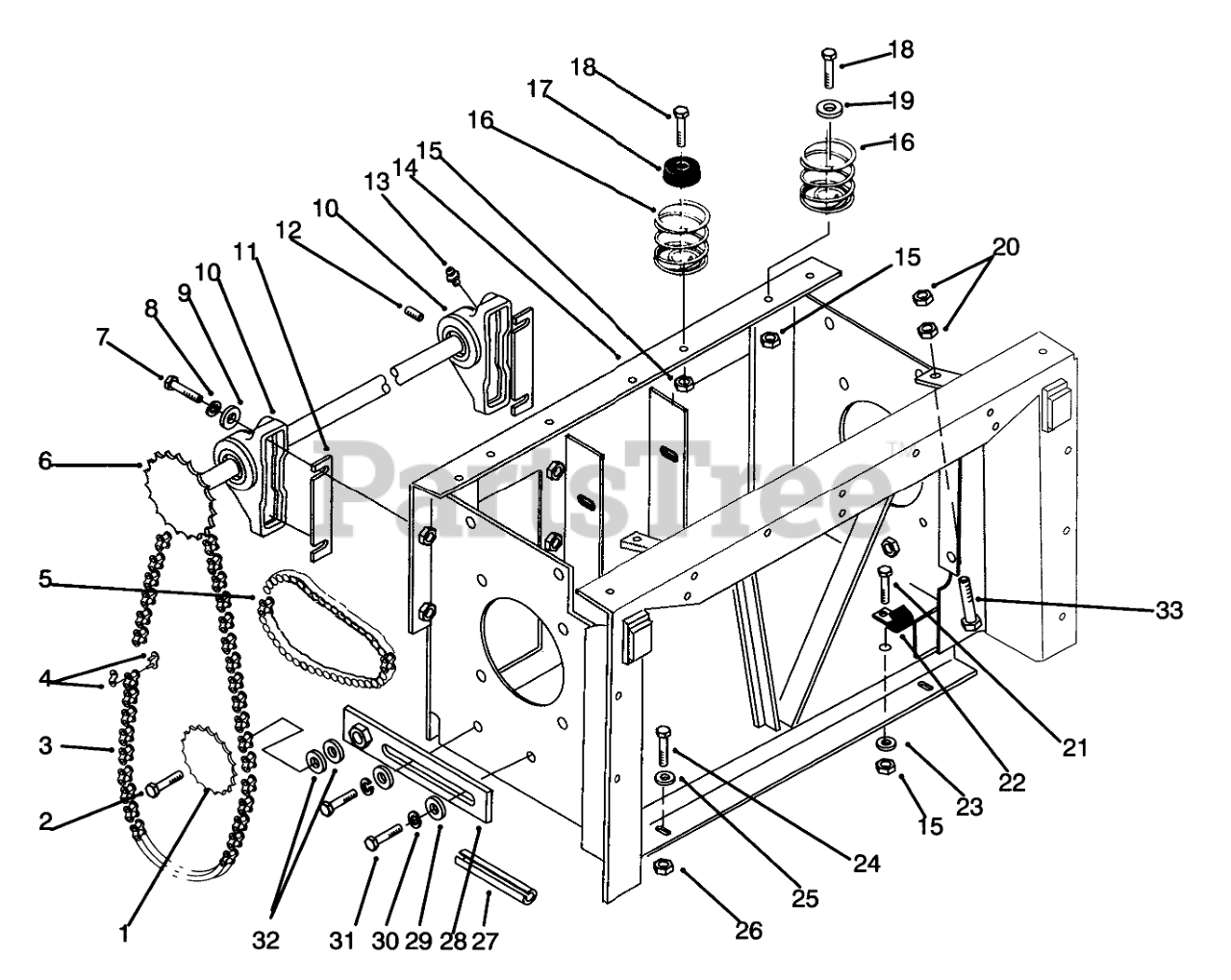

TRANSMISSION DRIVE FRAME Parts Diagram

  • Title
1

Toro 111887

IDLER SPROCKET 20288

$

$

Not available

2

Toro 327-4

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

3

Toro 116735

ROLLER-CHAIN #50 SEC

$

$

Not available

4

Toro 109002

CONNECTING LINK
(Superseded to 2710-16)

$8.49

$

Usually ships in 3-6 days

0

5

Toro 113691

CHAIN-#50 PRIMARY

$

$

Not available

6

Toro 113671

ASSY-JACKSHAFT PLT

$

$

Not available

7

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 113531

Bearing-Pillow Block (Incl. Ref. #12 & 13)

$

$

Not available

11

Toro 113567

SHIM-PILLOW BLOCK

$

$

Not available

12

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

13

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

14

Toro 116888

WLDMT-FRAME TRANS B

$2242.99

$

Usually ships in 3-6 days

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

16

Toro 114497

SPRING-SEAT NYLON

$62.99

$

Usually ships in 3-6 days

0

17

Toro 116839

BUMPER

$

$

Not available

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

20

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 17

0

27

Toro 115200

EDGE TRIM

$

$

Not available

28

Toro 112304

ASSY-CHAIN TENSIO B

$

$

Not available

29

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

30

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

31

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

32

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

33

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0
