74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) PISTON AND ROD Parts Diagram

Zero-Turn Mower, Drive Unit Only

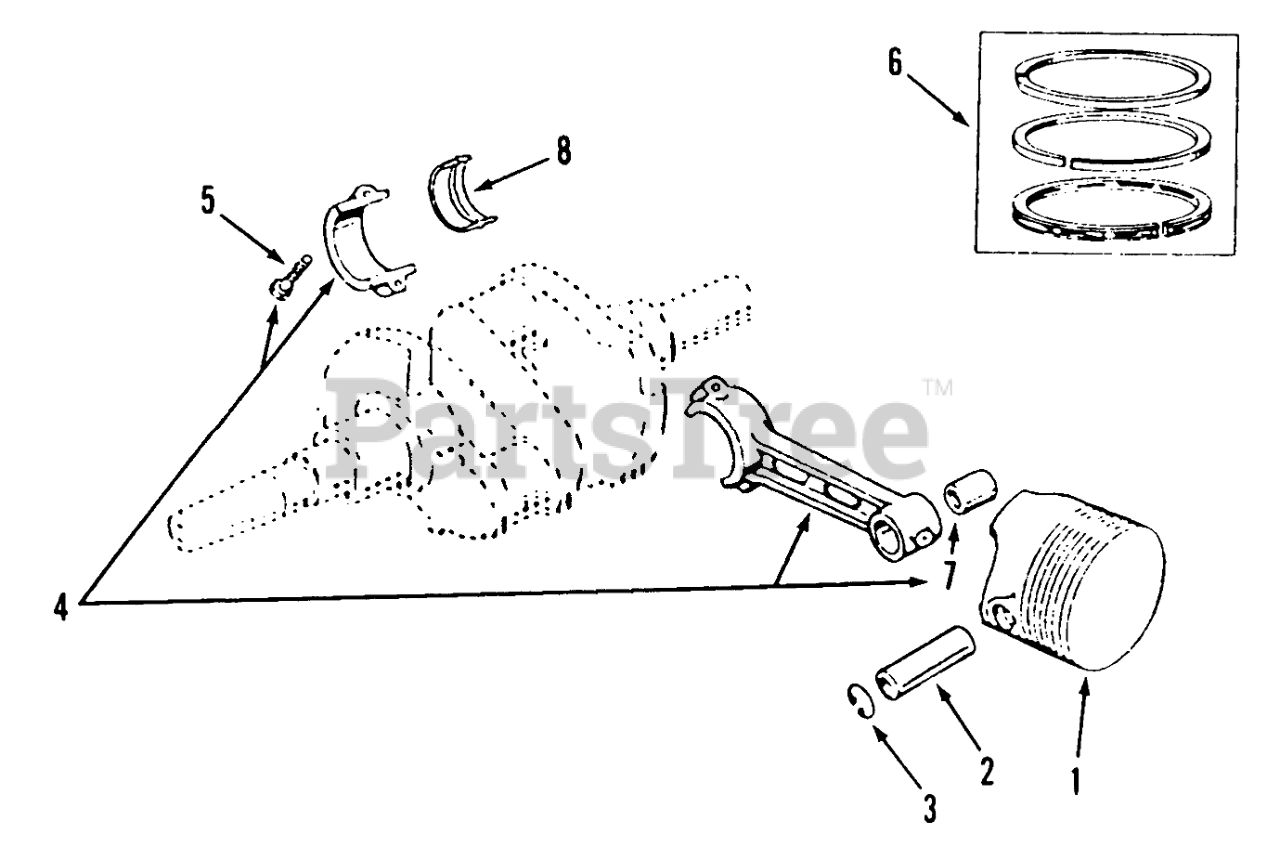

PISTON AND ROD Parts Diagram

  • Title

1

Piston & Pin (Incl. Pin & Retaining Ring)

$

$

Not available

Toro 92-9804

STD PISTON ASM

Note: Not illustrated

$592.99

$

Usually ships in 3-6 days

0

Toro 92-0934

PISTON (.005)

Note: Not illustrated

$

$

Not available

Toro 92-0935

PISTON (.010)

Note: Not illustrated

$

$

Not available

Toro 92-0936

PISTON (.020)

Note: Not illustrated

$

$

Not available

Toro 92-0937

PISTON (.030)

Note: Not illustrated

$

$

Not available

2

Toro 92-0938

PIN-PISTON

$

$

Not available

3

Toro 92-0933

RETAINING RING

$

$

Not available

4

Toro 82-0470

Rod-Connecting (Incl. Bolts)

$

$

Not available

5

Toro 82-1470

BOLT-PLACE

$

$

Not available

6

Set-Piston Ring

$

$

Not available

Toro 92-0939

PISTON RING KIT

Note: Not illustrated

$

$

Not available

Toro 92-0940

PISTON RING KIT (.005)

Note: Not illustrated

$

$

Not available

.0100versize

Note: Not illustrated

$

$

Not available

.020 Oversize

Note: Not illustrated

$

$

Not available

.030 Oversize

Note: Not illustrated

$

$

Not available

7

Toro 82-0410

BUSHING-PISTON PIN

$

$

Not available

8

Bearing-Connecting Rod, Half

$

$

Not available

Toro 82-0420

BEARING

Note: Not illustrated

$

$

Not available

Toro 82-0430

BEARING

Note: Not illustrated

$

$

Not available

Toro 82-0440

BEARING

Note: Not illustrated

$

$

Not available

Toro 82-0450

BEARING

Note: Not illustrated

$

$

Not available

Toro 82-0460

BEARING

Note: Not illustrated

$

$

Not available
