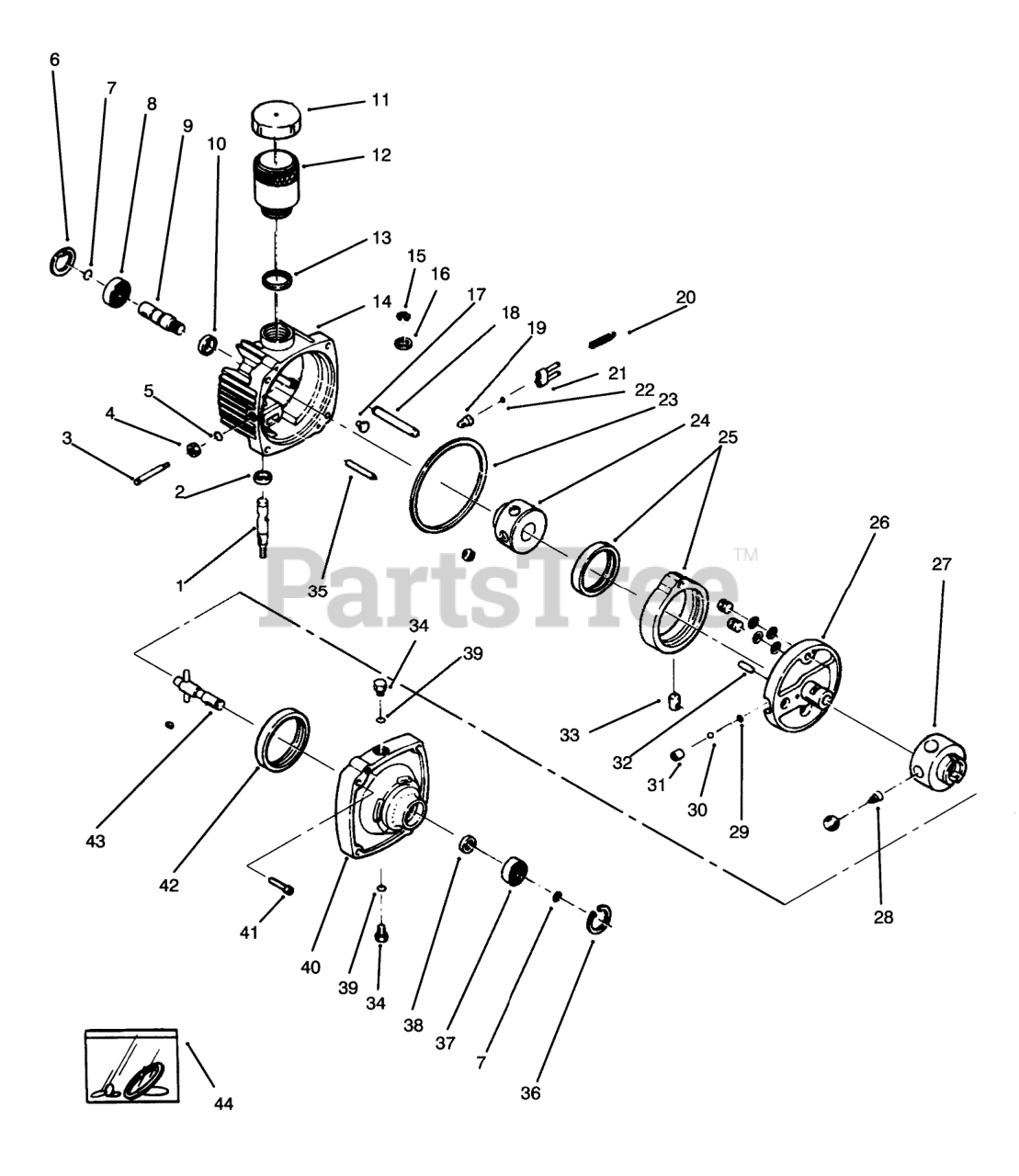

74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) HYDROSTATIC TRANSMISSION Parts Diagram

Zero-Turn Mower, Drive Unit Only

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 112606

KIT-CONTROL SHAFT

$

$

Not available

2

Toro 112605

SEAL-OIL

$18.99

$

Usually ships in 3-6 days

0

3

Toro 112633

SHAFT-DUMP VALVE

$

$

Not available

4

Nut

$

$

Not available

5

Toro 112631

O-RING

$

$

Not available

6

Toro 112600

Retaining Ring
(Superseded to 56-3290)

$

$

Not available

7

Toro 112601

SNAP-RING

$

$

Not available

8

Toro 112602

BEARING-BALL (INPUT)

$63.99

$

Usually ships in 3-6 days

0

9

Toro 112603

SHAFT-INPUT

$

$

Not available

10

Toro 56-2820

SEAL-OIL

$40.99

$

In Stock, only 2 left!

0

11

Toro 112589

RESERVOIR COVER

$

$

Not available

12

Toro 112590

BODY-RESERVOIR

$73.99

$

Usually ships in 3-6 days

0

13

Toro 112591

SEAL-RING SQUARE CUT

$3.99

$

Usually ships in 3-6 days

0

14

Toro 112625

Kit-Cover (Incl. Ref. # 1, 2, 10, 15, 16, 18 & 35)

$

$

Not available

15

Toro 112593

RETAINING-RING

$

$

Not available

16

Toro 112594

Washer-Control Shaft

$

$

Not available

17

Toro 112595

Button
(Superseded to 56-2880)

$

$

Not available

18

Dowel (Ref.)

$

$

Not available

19

Toro 112626

SUB-ASS'Y O-RING

$

$

Not available

20

Toro 112629

SPRING-VALVE

$

$

Not available

21

Toro 112628

SUB-ASS'Y BRACKET

$

$

Not available

22

Toro 112627

O-RING

$

$

Not available

23

Toro 112596

SEAL-RING SQUARE CUT

$

$

Not available

24

Toro 112597

SUB-ASS'Y PUMP ROTOR

$

$

Not available

25

Toro 112619

Ring Sub-Assembly-Cam (Incl. Pump Race & Cam Ring)

$

$

Not available

26

Toro 112630

Pintle Assembly-Used in CCW rotation trans. Model #00700-023 (Incl. Ref.#29-32)

$

$

Not available

27

Toro 112599

SUB-ASS'Y MOTOR

$

$

Not available

28

Toro 112612

SPRING-PISTON

$

$

Not available

29

Toro 112611

Ring-Retaining
(Superseded to 56-3000)

$4.49

$

In Stock, only 2 left!

0

30

Toro 112610

Ball
(Superseded to 56-3010)

$

$

Not available

31

Toro 112609

BODY-CHECK VALVE
(Superseded to 56-3020)

$

$

Not available

32

Toro 112608

Pin-Coil
(Superseded to 56-2980)

$

$

Not available

33

Toro 112607

INSERT-CAM RING

$

$

Not available

34

Toro 112613

Plug Assembly-O-Ring (Incl. Ref. #39)
(Superseded to 56-3250)

$

$

Not available

35

Dowel (Ref.)

$

$

Not available

37

Bearing-Ball

$

$

Not available

39

Toro 112614

O-Ring
(Superseded to 56-3260)

$

$

Not available

40

Toro 112620

Body Assembly (Incl. Ref.# 7, 34, 36-39, 41 & 43)

$1247.99

$

Usually ships in 3-6 days

0

41

Toro 112616

Screw
(Superseded to 56-3100)

$

$

Not available

42

Seal-Oil

$

$

Not available

43

Toro 112615

SUB-ASS'Y OUTPUT

$

$

Not available

44

Toro 112618

Kit-Overhaul Sealing (Incl.

$213.99

$

Usually ships in 3-6 days

0

Toro 112632

SUB-ASS'Y NUT GASKET

$

$

Not available

Toro 740315

Hydrostatic Transmission Repair Manual

Note: Not illustrated

$

$

Currently unavailable
