74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) ENGINE AND FUEL SYSTEMS Parts Diagram

Zero-Turn Mower, Drive Unit Only

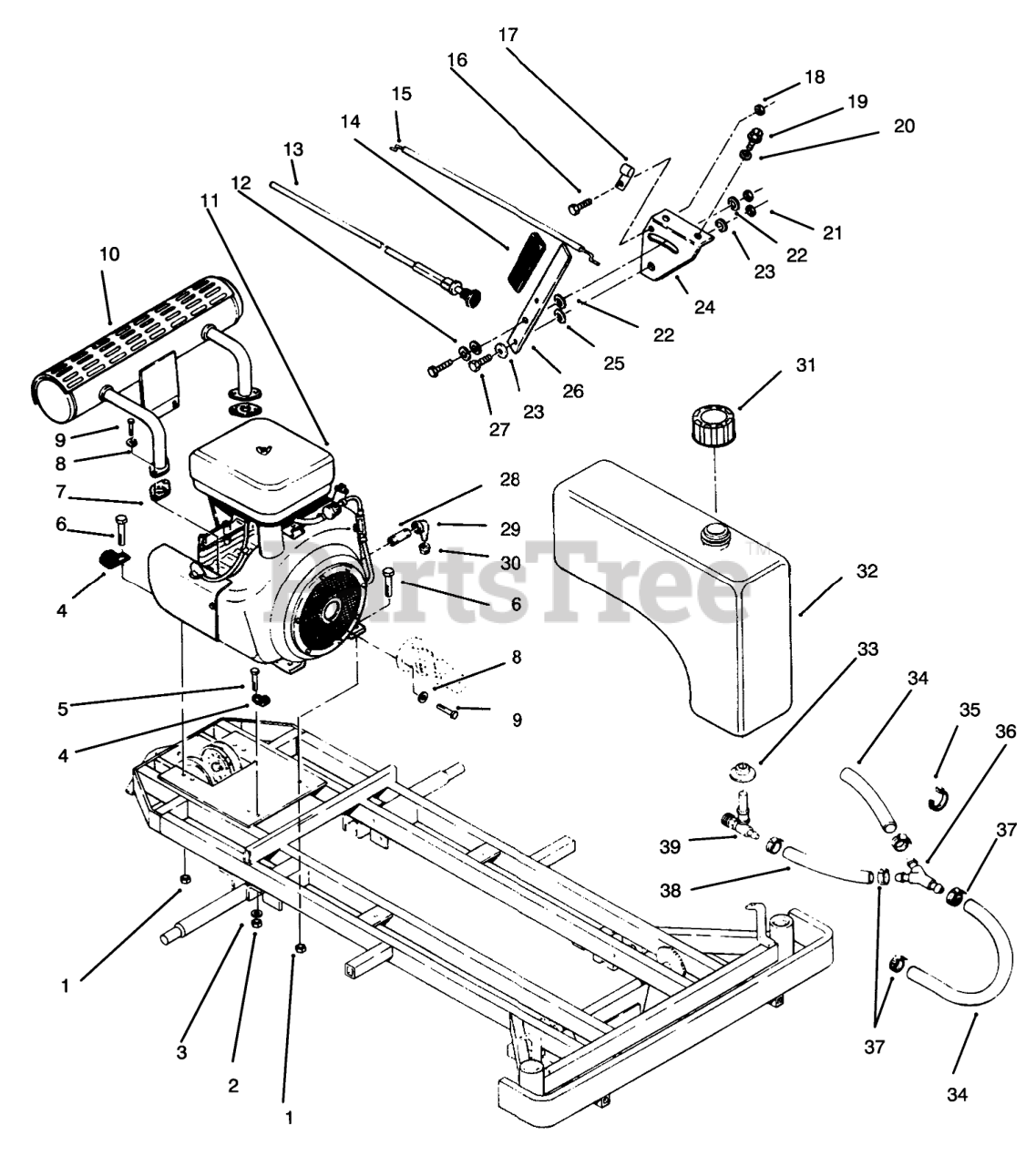

ENGINE AND FUEL SYSTEMS Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

7

Toro 82-1520

GASKET-EXHAUST

$19.99

$

Usually ships in 3-6 days

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 3274-22

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 117580

MUFFLER

$1416.99

$

Usually ships in 3-6 days

0

11

Toro 79-5250

Engine-24 HP Toro Power Plus P224 G I/10966 Spec. E Engine
(Superseded to 94-1814)

$

$

Not available

12

Toro 100365

WASHER-SPRING DISC

$

$

Not available

13

Toro 113693

CABLE-CHOKE

$74.99

$

Usually ships in 3-6 days

0

14

Toro 111922

GRIP BRAKE20258-K

$3.99

$

Usually ships in 3-6 days

0

15

Toro 105014

CABLE-CHOKE CONTROL

$

$

Not available

16

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

17

Toro 7059

CLIP BOWDEN WIRE

$2.99

$

Usually ships in 3-6 days

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

20

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

22

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 14-9079

CABLE/BRKT ASM

$

$

Not available

25

Toro 6331

SPACER CLUTCH ARM

$

$

Not available

26

Toro 79-4800

Handle
(Superseded to 79-4800-03)

$45.99

$

Usually ships in 3-6 days

0

27

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 289-45

NIPPLE-PIPE

$19.99

$

Usually ships in 3-6 days

0

29

Toro 2811-10

ELBOW-STREET, 90 DEG

$15.99

$

Usually ships in 3-6 days

0

30

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

31

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

32

Toro 78-3270

Tank-Fuel (Incl.Items #33 & 39)

$

$

Not available

33

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

34

Toro 47-2967

HOSE-GAS
(Superseded to 109-3491)

$25.99

$

Usually ships in 3-6 days

0

35

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

36

Toro 111879

FITTING-FUEL 45-Y

$

$

Not available

37

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

38

Toro 47-2966

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

39

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0
