74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 049000001 - 049999999) (1994) AIR CLEANER Parts Diagram

Zero-Turn Mower, Drive Unit Only

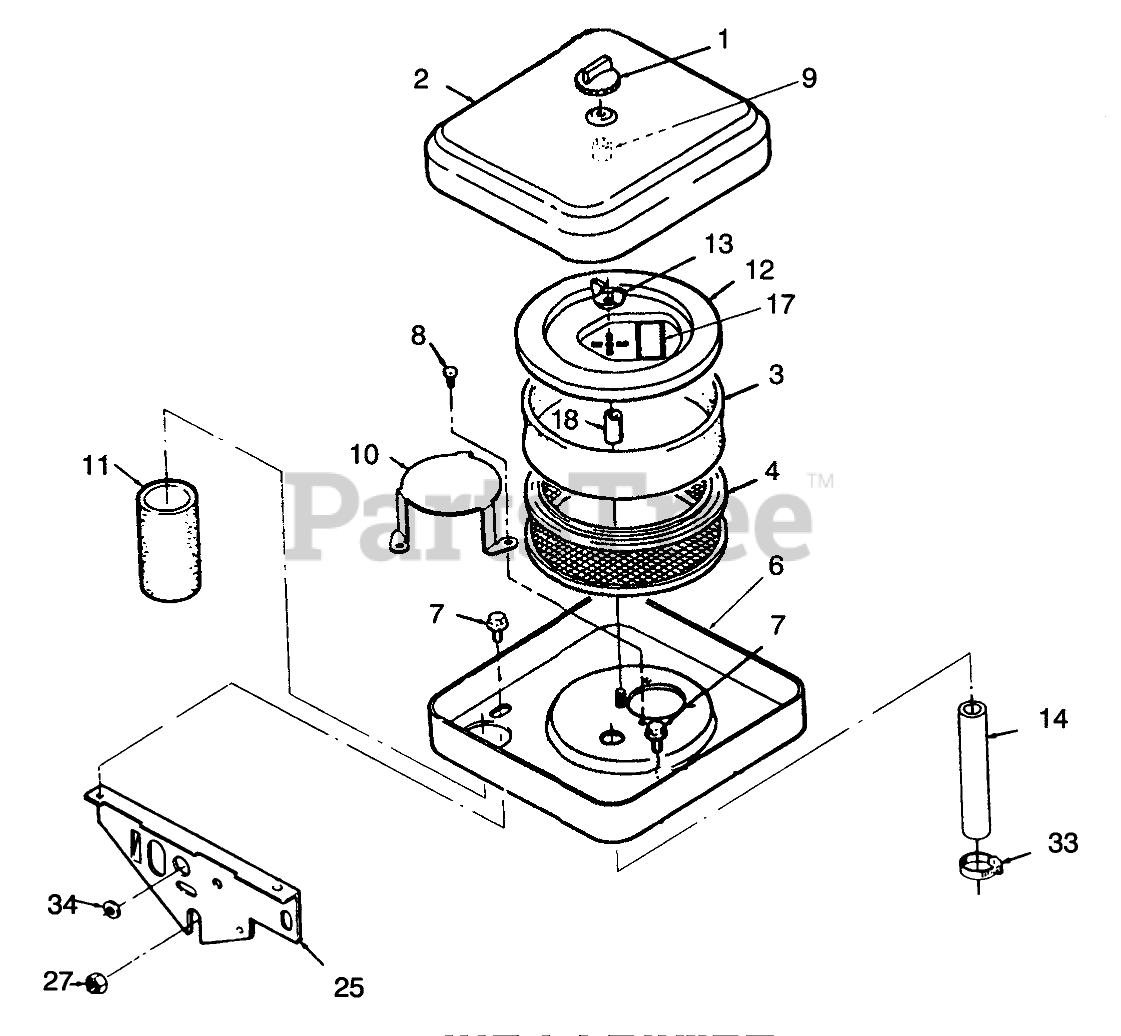

AIR CLEANER Parts Diagram

  • Title

1

Toro 79-6350

KNOB-TOOL LESS
(Superseded to 82-1670)

$

$

Not available

2

Toro 82-0690

COVER-AIR CLEANER

$

$

Not available

3

Toro 82-0670

WRAPPER-AIR CLEANER ELEMENT

$285.99

$

Usually ships in 3-6 days

0

4

Toro 82-0660

ELEMENT-AIR CLEANER

$33.99

$

Usually ships in 3-6 days

0

6

Toro NN10926

HOUSING-AIR CLEANER

$

$

Not available

7

Toro 82-1550

SCREW-TAPPING

$

$

Not available

8

Toro 92-0915

MACHINE SCREW

$

$

Not available

9

Toro 92-0915

MACHINE SCREW

$

$

Not available

10

Toro 92-0946

PLATE-AIR DEFLECTOR

$

$

Not available

11

Toro 82-0700

TUBE-AIR INTAKE

$

$

Not available

12

Toro 82-0650

ELEMENT COVER KIT

$

$

Not available

13

Toro 92-0913

1/4-20 WING NUT

$

$

Not available

14

Toro 92-0945

HOSE-BREATHER

$

$

Not available

17

Toro 82-0010

DECAL-PERIODIC MAINTENANCE

$

$

Not available

18

Toro 82-0980

SPACER-AIR CLEANER STUD

$

$

Not available

25

Toro 82-0720

SUPPORT-AIR CLEANER

$

$

Not available

27

Toro 82-1690

NUT

$

$

Not available

33

Toro 82-1090

CLAMP-HOSE, BREATHER

$

$

Not available

34

Toro 71-6140

GROMMET

$

$

Not available
