74140 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) P.T.O. ELECTRIC CLUTCH Parts Diagram

Zero-Turn Mower, Drive Unit Only

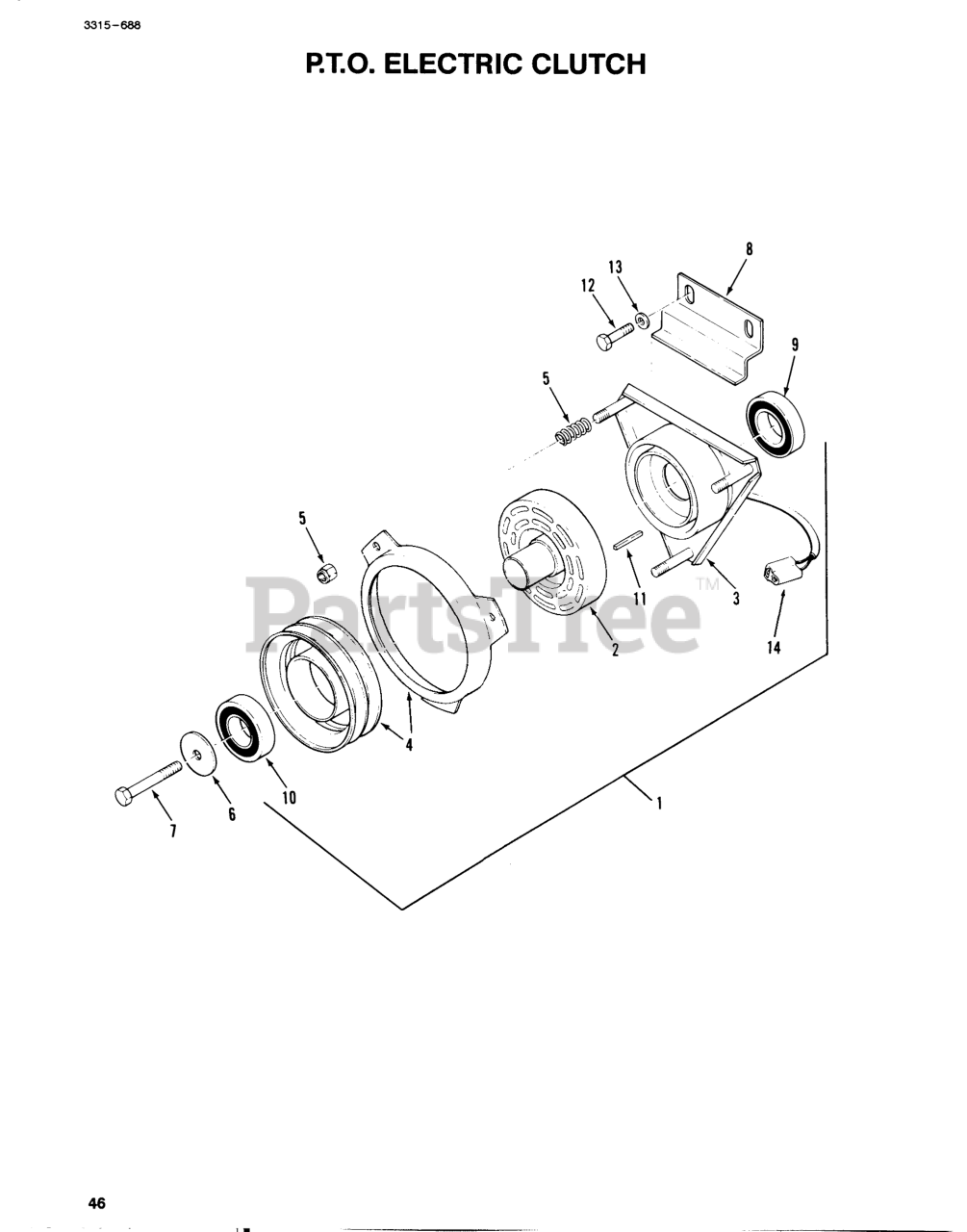

P.T.O. ELECTRIC CLUTCH Parts Diagram

  • Title

1

Toro 113997

Electric Clutch-Complete (Incl. Items #2, 3, 4, 5, 9, 10, & 14)
(Superseded to 93-3160)

$

$

Not available

2

Toro 115137

Rotor
(Superseded to 93-3176)

$1855.99

$

Usually ships in 3-6 days

0

3

Toro 115134

Field (Incl. Item #9)

$1249.99

$

Usually ships in 3-6 days

0

4

Toro 115136

Armature & Pulley (Incl. Item #10)
(Superseded to 93-3176)

$1855.99

$

Usually ships in 3-6 days

0

5

Toro 115135

Spring & Nuts
(Superseded to 113823)

$

$

Not available

6

Toro 113602

RETAINER-BEARING

$

$

Not available

7

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

8

Toro 113674

BRACKET-CLUTCH B

$

$

Not available

9

Toro 115170

BEARING-FIELD ASS'Y

$

$

Not available

10

Toro 115171

Bearing
(Superseded to 114064)

$78.99

$

In Stock, only 2 left!

0

11

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

12

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

14

Toro 110459

CONNECTOR BODY B

$1.99

$

In Stock, only 2 left!

0
