74120 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) ENGINE & FUEL SYSTEM ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

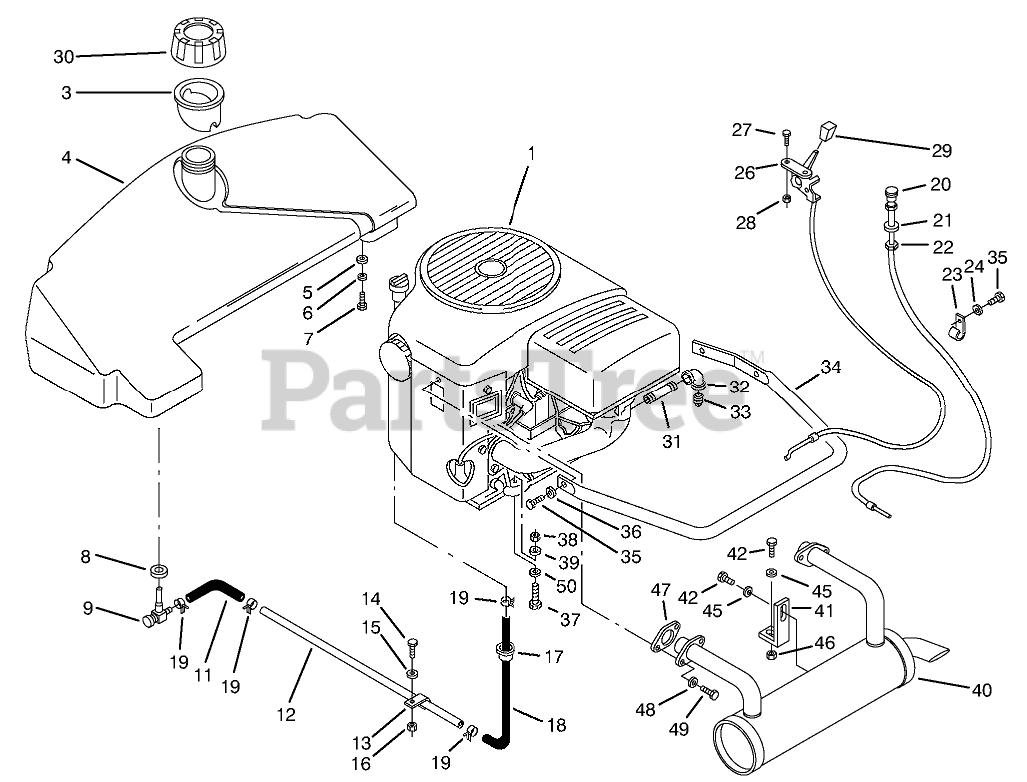

ENGINE & FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 79-5230

Engine-16HP Model P216V-1/11103-D
(Superseded to NN10766)

$8376.99

$

Usually ships in 3-6 days

0

Toro 79-5240

Engine-20HP Model P220V-I/11104-D
(Superseded to 94-1813)

Note: Not illustrated

$

$

Not available

3

Toro 115741

FUNNEL-FUEL TANK

$

$

Not available

4

Toro 116363

TANK-FUEL ASS'Y

$470.99

$

Usually ships in 3-6 days

0

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

9

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

11

Toro 47-2966

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

12

Toro 115780

TUBE FUEL LINE

$58.99

$

Usually ships in 3-6 days

0

13

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

14

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$0.99

$

Usually ships in 3-6 days

0

18

Toro 47-2968

Hose-18" Fuel

$

$

Currently unavailable

19

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

20

Toro 116289

CONTROL-CHOKE

$94.99

$

Usually ships in 3-6 days

0

21

Toro 3256-46

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

22

Toro 109530

NUT-HEX PALNUT

$0.99

$

In Stock, only 4 left!

0

23

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 78-2790

CONTROL-THROTTLE

$122.99

$

Usually ships in 3-6 days

0

27

Toro 3250-14

SCREW-PPH

$6.99

$

Usually ships in 3-6 days

0

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

30

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

31

Toro 116159

NIPPLE-3/8 X 2.5

$

$

Not available

32

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

33

Toro 943420

Plug
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

34

Toro 116708

GUARD-AIR CLEANER

$187.99

$

Usually ships in 3-6 days

0

35

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

38

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Toro 116030

EXHAUST-MUFFLER

$798.99

$

Usually ships in 3-6 days

0

41

Toro 116029

BRACKET-MUFFLER

$

$

Not available

42

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

43

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

45

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

46

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Toro 57-9210

GASKET

$17.99

$

In Stock, Qty 6

0

48

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

49

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

50

Toro 116531

WASHER

$

$

Not available
