74120 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) CARBURETOR & INTAKE MANIFOLD ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

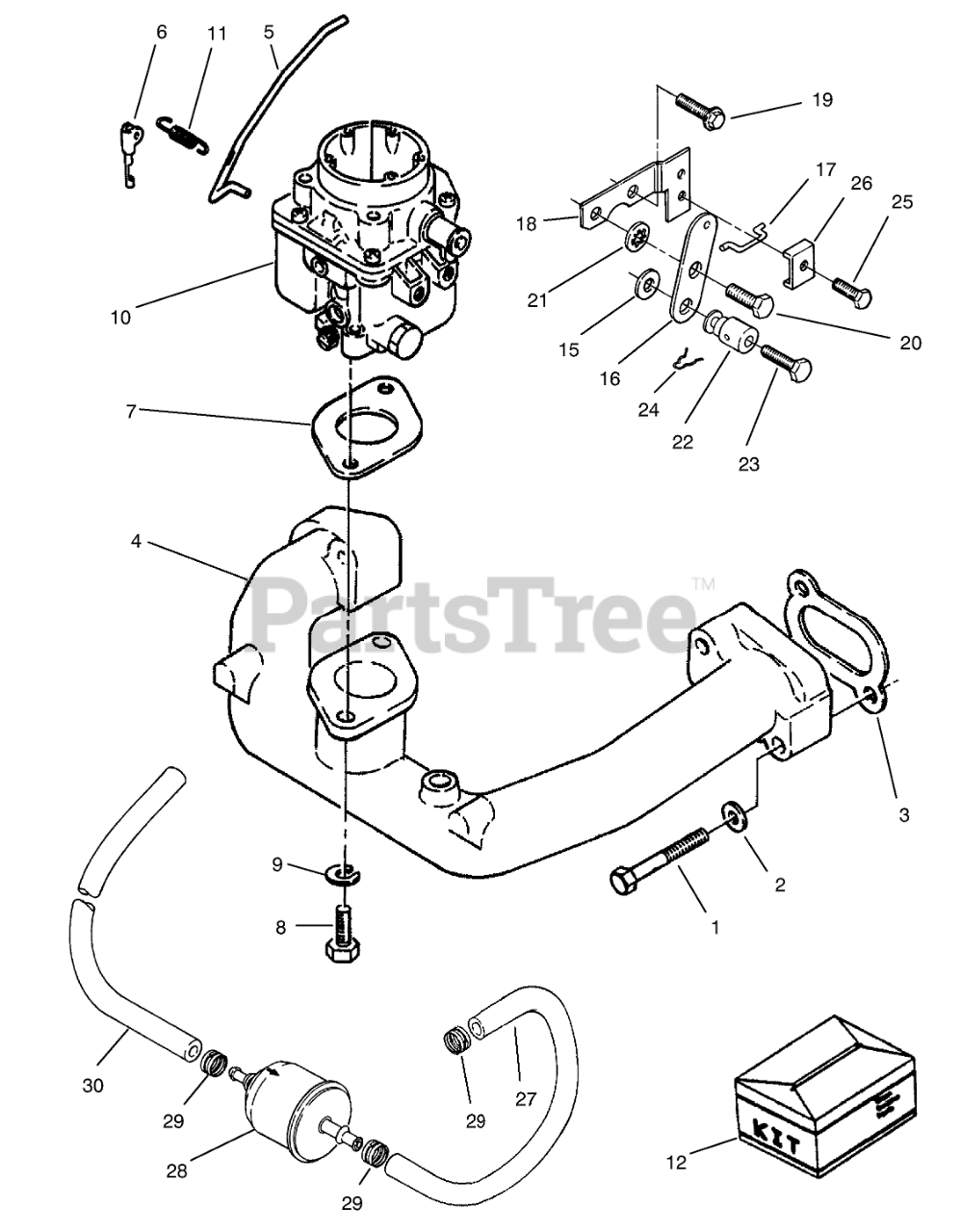

CARBURETOR & INTAKE MANIFOLD ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

3

Toro NN10550

Gasket
(Superseded to 71-5980)

$14.99

$

In Stock, only 3 left!

0

4

Toro NN10514

INTAKE-MANIFOLD

$

$

Not available

5

Toro NN10509

GOVERNOR-CONTROL ROD

$

$

Not available

6

Toro NN10538

CONTROL-ROD CLIP

$

$

Not available

7

Toro 57-9200

Gasket
(Superseded to 82-0850)

$12.99

$

In Stock, only 1 left!

0

8

Toro NN10544

HEX-HEAD CAP SCREW

$

$

Not available

9

Toro NN10420

Washer
(Superseded to 82-1630)

$

$

Not available

10

Toro NN10504

COMPLETE-CARBURETOR

$

$

Not available

Toro NN10855

Carburetor-620-Z
(Superseded to NN10204)

Note: Not illustrated

$

$

Not available

11

Toro NN10865

SPRING

$

$

Not available

12

Toro NN10206

Kit-Repair
(Superseded to 82-0780)

$716.99

$

Usually ships in 3-6 days

0

15

Toro 59-0850

Washer

$

$

Not available

16

Toro 59-0460

SWIVEL-CHOKE

$

$

Not available

17

Toro 57-9180

LINK-CHOKE

$

$

Not available

18

Toro 59-0470

BRACKET

$

$

Not available

19

Toro NN10412

Bolt
(Superseded to 72-3880)

$

$

Not available

20

Toro 59-1020

BOLT-SHOULDER

$

$

Not available

21

Toro NN10424

Lockwasher
(Superseded to 82-1660)

$

$

Not available

22

Toro 57-9170

SWIVEL

$

$

Not available

23

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

24

Toro 59-0720

PIN-COTTER

$

$

Not available

25

Toro NN10784

Bolt
(Superseded to 72-3900)

$

$

Not available

26

$

$

Not available

27

Toro NN10302

Hose
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

28

Toro NN10466

Filter-Fuel
(Superseded to 71-5960)

$32.99

$

In Stock, Qty 7

0

29

Toro NN10789

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 3 left!

0

30

Toro NN10527

Hose
(Superseded to 82-1100)

$

$

Not available
