74101 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) TRANSMISSION CONTROLS ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

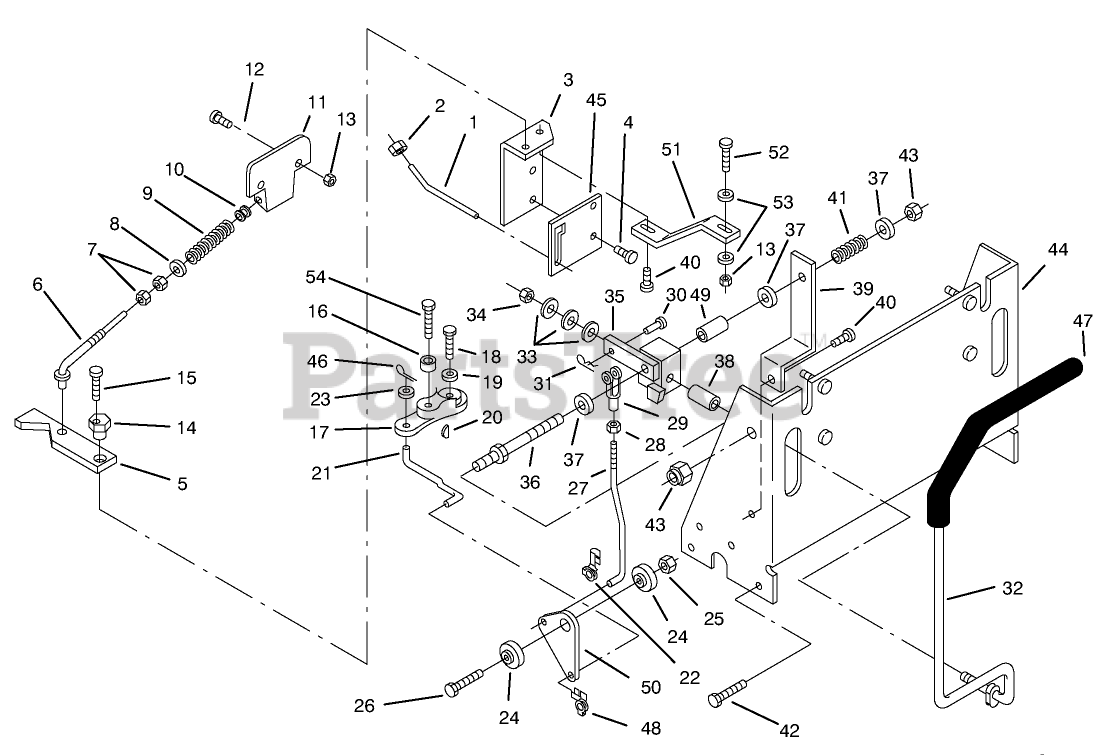

TRANSMISSION CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 115272

LEVER-TOW VALVE

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

3

Toro 116114

Bracket RH
(Superseded to 116114-03)

$

$

Not available

Toro 116113

Bracket LH
(Superseded to 116113-03)

Note: Not illustrated

$

$

Not available

4

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

5

Toro 116112

Arm
(Superseded to 116112-01)

$

$

Not available

6

Toro 116727

ROD-NEUTRAL RETURN

$65.99

$

Usually ships in 3-6 days

0

7

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

9

Toro 112113

SPRING COMPRESSION

$6.99

$

In Stock, only 2 left!

0

10

Toro 5977

NYLINER BUSHING

$6.99

$

Usually ships in 3-6 days

0

11

Toro 116196

Bracket
(Superseded to 116196-01)

$

$

Not available

12

Toro 3274-53

SCREW-HSH

$

$

Not available

13

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

14

$

$

Not available

15

$

$

Not available

16

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

17

Toro 79-1440

Arm-Control, RH
(Superseded to 79-1440-01)

$

$

Not available

Toro 79-1450

Arm-Control, LH
(Superseded to 79-1450-01)

Note: Not illustrated

$

$

Not available

18

Toro 9080066

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 9

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

21

Toro 115298

LINK-R.H.

$29.99

$

Usually ships in 3-6 days

0

Toro 115299

LINK-L.H.

Note: Not illustrated

$

$

Not available

22

Toro 115301

CLIP-CLEVIS L.H.

$

$

Not available

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 103409

SPACER-CLUTCH LINK

$

$

Not available

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

26

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 115296

ROD-HYDRO CTRL. ADJ.

$

$

Not available

28

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

29

$46.99

$

Usually ships in 3-6 days

0

30

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

31

Toro 9335034

Pin-Cotter
(Superseded to 93-3503)

$

$

Not available

32

Toro 116732

R/H STRG LEVER B

$224.99

$

Usually ships in 3-6 days

0

Toro 116731

Steering Lever LH
(Superseded to 116731-03)

Note: Not illustrated

$

$

Not available

33

Toro 113689

SPRING-BELLVILLE

$

$

Not available

34

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

35

Toro 115292

Lever Pivot RH
(Superseded to 115292-03)

$

$

Not available

Toro 115291

Lever Pivot LH
(Superseded to 115291-03)

Note: Not illustrated

$

$

Not available

36

Toro 116259

SHAFT-PIVOT

$65.99

$

In Stock, only 1 left!

0

37

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 113675

BUSHING-STR LVR PVT

$

$

Not available

39

Toro 116239

Bracket-Retainer
(Superseded to 116239-01)

$

$

Not available

40

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

41

Toro 113632

SPRING

$

$

Not available

42

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

43

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

44

Toro 117670

Lever Support
(Superseded to 117670-01)

$

$

Not available

45

Toro 115273

PLATE-TOW VALVE L

$

$

Not available

46

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

47

Toro 92-6519

GRIP-CUSHION

$

$

Not available

48

Toro 115300

CLIP-CLEVIS R.H.

$

$

Not available

Toro 115301

CLIP-CLEVIS L.H.

Note: Not illustrated

$

$

Not available

49

Toro 115295

BUSHING

$8.49

$

Usually ships in 3-6 days

0

50

Toro 115297

PLATE-CONTROL PIV

$

$

Not available

51

Toro 116263

Bracket-RH
(Superseded to 116263-03)

$

$

Not available

52

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

53

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

54

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
