74101 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) TRANSMISSION ASSEMBLY EATON MODEL 781-016 Parts Diagram

Zero-Turn Mower, Drive Unit Only

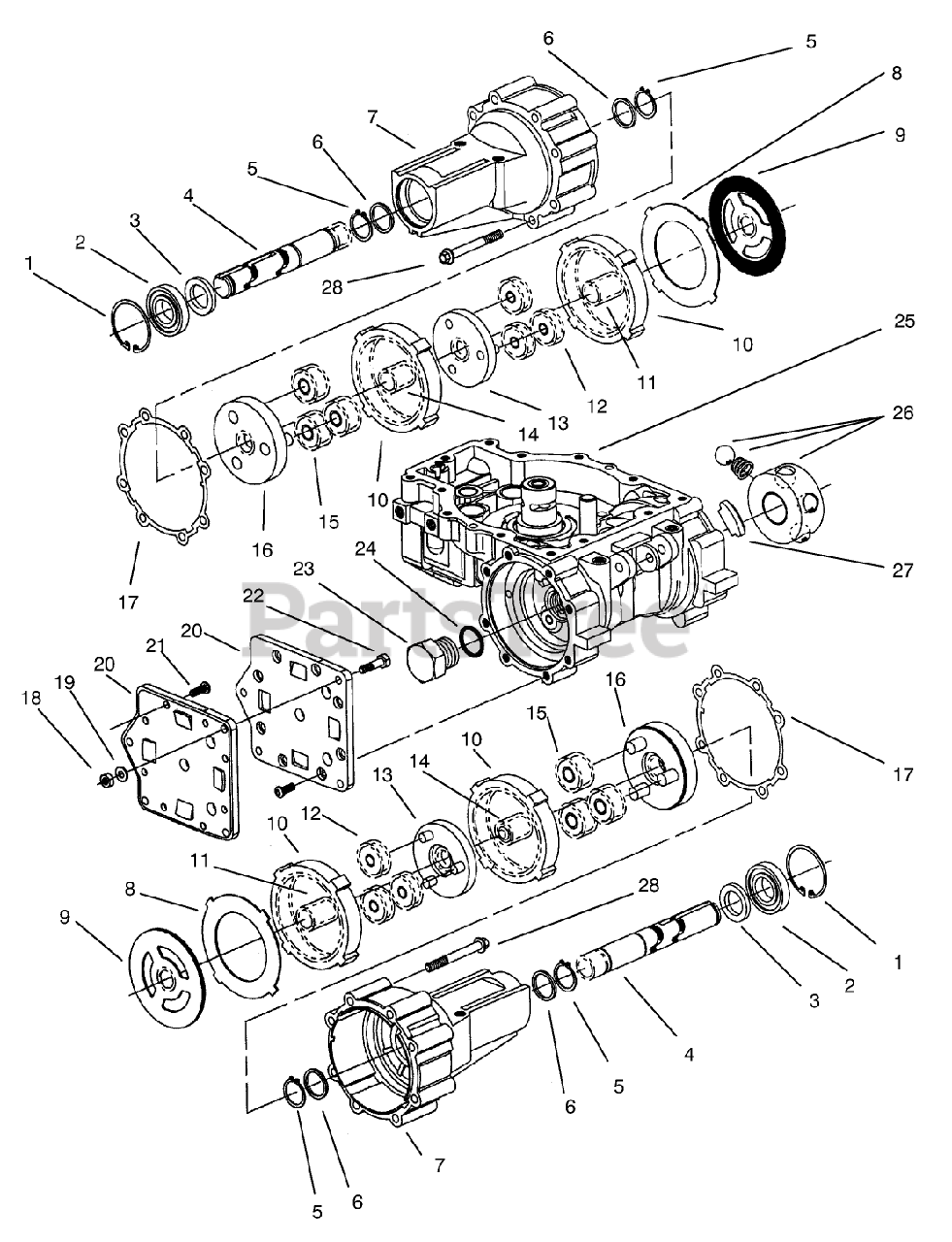

TRANSMISSION ASSEMBLY EATON MODEL 781-016 Parts Diagram

  • Title
1

Toro 88-2560

RETAINING RING

$

$

Not available

2

Toro 88-2570

BALL BEARING

$

$

Not available

3

Toro 88-2580

RADIAL LIP SEAL

$

$

Not available

4

Toro 88-2590

AXLE SHAFT

$

$

Not available

5

Toro 88-2600

RETAINING RING

$4.99

$

In Stock, only 2 left!

0

6

Toro 88-2610

THRUST WASHER

$

$

Not available

7

Toro 88-2620

AXLE HOUSING

$

$

Not available

Toro 88-3050

Axle Housing Assembly (Incl. Ref.# 1-7)

Note: Not illustrated

$

$

Not available

8

Toro 88-2660

BACKUP PLATE

$41.99

$

In Stock, only 1 left!

0

9

Toro 88-3060

REACTION PLATE

$85.99

$

In Stock, only 1 left!

0

10

Toro 88-2670

57 TOOTH RING GEAR

$149.99

$

In Stock, only 2 left!

0

11

Toro 88-2680

15 TOOTH FIRST GEAR

$42.99

$

In Stock, only 1 left!

0

12

Toro 88-2800

15 TOOTH PRIMARY CARR.

$337.99

$

In Stock, only 1 left!

0

13

Toro 88-2690

21 TOOTH PLANET. GEAR

$74.99

$

In Stock, only 1 left!

0

14

Toro 88-2810

15 TOOTH SECOND GEAR

$47.99

$

In Stock, only 2 left!

0

15

Toro 88-2820

21 TOOTH SECOND GEAR

$

$

Not available

16

Toro 88-2810

15 TOOTH SECOND GEAR

$47.99

$

In Stock, only 2 left!

0

17

Toro 88-2640

AXLE HOUSING GASKET

$29.99

$

In Stock, only 1 left!

0

18

Toro 88-3070

HEX NUT

$

$

Not available

19

Toro 88-3080

LOCKWASHER

$

$

Not available

20

Toro 88-3090

FLANGE

$

$

Not available

21

Toro 88-3100

1/4 TORX BUTRESS HD SC

$

$

Not available

22

Toro 88-3110

HEX HD CAPSCREW

$

$

Not available

23

Toro 88-3120

PLUG ASM

$161.99

$

Usually ships in 3-6 days

0

24

Toro 88-3000

"O" RING SEAL

$

$

Not available

25

Toro 88-3130

HOUSING ASM

$

$

Not available

Toro 88-3150

LH TRANSMISSION ASM

Note: Not illustrated

$

$

Not available

Toro 88-3160

RH TRANSMISSION ASM

Note: Not illustrated

$5552.99

$

Usually ships in 3-6 days

0

26

Motor Assembly

$

$

Not available

27

Pad Assembly

$

$

Not available

28

Toro 88-2840

5/16 HEX HEAD SCREW

$

$

Not available
