74101 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) GEARCASE & IGNITION ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

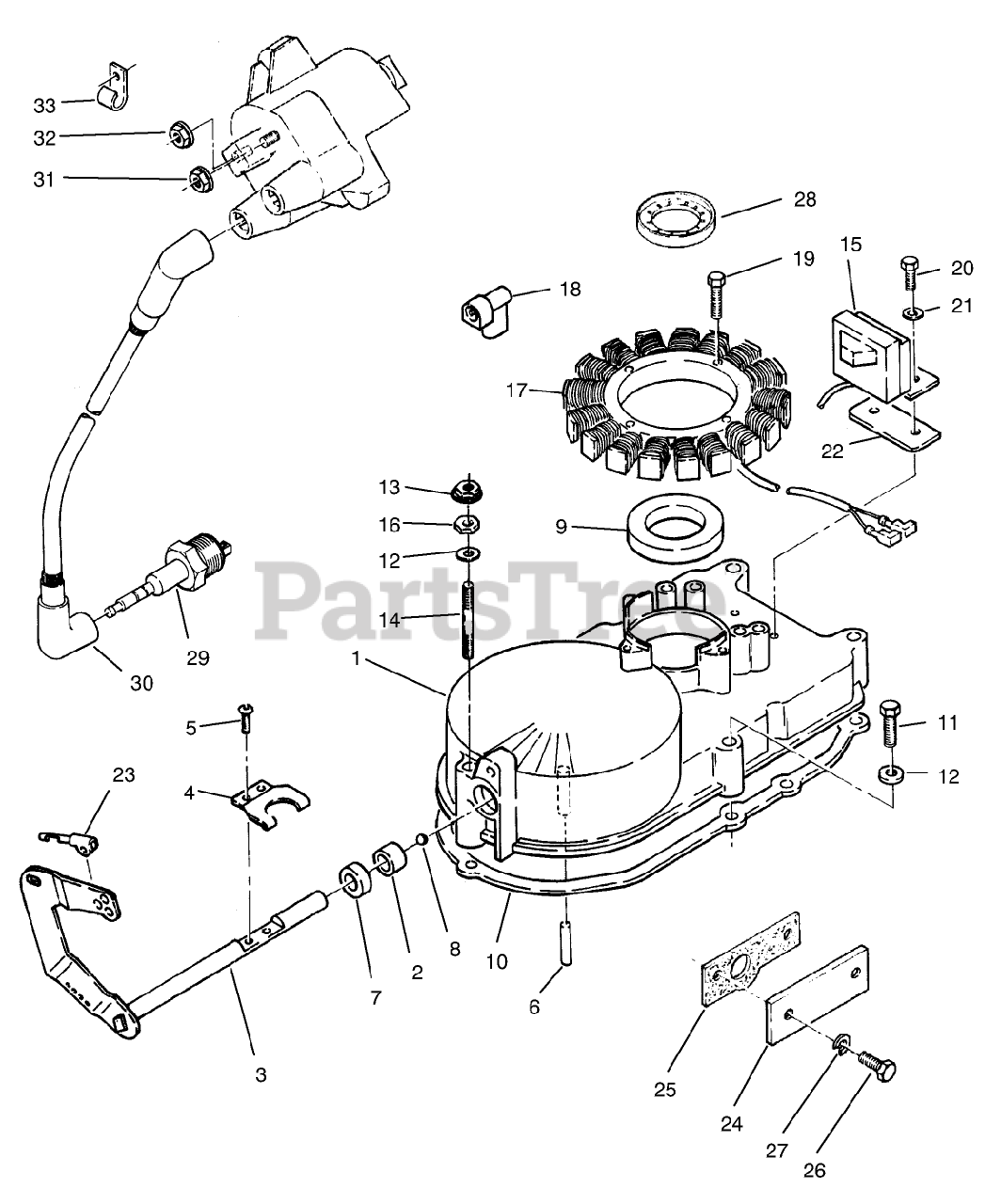

GEARCASE & IGNITION ASSEMBLY Parts Diagram

  • Title

1

Toro NN10559

Kit-Gearcase (Incl. Ref. #2-9)

$

$

Not available

2

Toro 57-9650

BEARING

$

$

Not available

3

Toro NN10510

GOVERNOR-SHAFT & ARM

$

$

Not available

4

Toro 59-0420

YOKE

$

$

Not available

5

Toro 59-0950

SCREW-PAN HD

$

$

Not available

6

Toro NN10335

Washer
(Superseded to 59-0740)

$6.49

$

In Stock, only 1 left!

0

7

Toro 57-9570

SEAL

$

$

Not available

8

Toro 57-9630

BALL

$

$

Not available

9

Toro 57-9580

SEAL

$

$

Not available

10

Toro NN10549

Gasket
(Superseded to 71-6360)

$

$

Not available

11

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

12

Toro 57-9750

WASHER

$

$

Not available

13

Toro NN10430

Nut
(Superseded to 82-1690)

$

$

Not available

14

Toro NN10352

Stud
(Superseded to 59-0790)

$

$

Not available

15

Toro NN10444

Control-Ignition
(Superseded to 71-6380)

$457.99

$

Usually ships in 3-6 days

0

16

Toro 59-1130

NUT-GEAR COVER

$

$

Not available

17

Toro 57-9440

Stator
(Superseded to 92-0967)

$394.99

$

Usually ships in 3-6 days

0

18

Toro NN10291

RECEPTACLE TERMINAL

$

$

Not available

19

Toro NN10389

Bolt
(Superseded to 71-6390)

$

$

Not available

20

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

21

Toro NN10424

Lockwasher
(Superseded to 82-1660)

$

$

Not available

22

Toro NN10516

Insulator
(Superseded to 71-6410)

$12.99

$

Usually ships in 3-6 days

0

23

Toro 57-9700

CLIP

$5.49

$

In Stock, only 1 left!

0

24

Toro NN10515

Plate
(Superseded to 71-5990)

$

$

Not available

25

Toro 57-9260

GASKET

$

$

Not available

26

Toro NN10368

Bolt
(Superseded to 82-1360)

$

$

Not available

27

Toro NN10542

Washer
(Superseded to 82-1340)

$

$

Not available

28

Toro NN10247

Rotor
(Superseded to 71-6010)

$107.99

$

Usually ships in 3-6 days

0

29

Toro 57-9340

SPARK PLUG

$3.49

$

In Stock, only 4 left!

0

30

Toro NN10253

Wire-Plug
(Superseded to 57-9350)

$93.99

$

Usually ships in 3-6 days

0

Toro NN10254

Wire-Plug
(Superseded to 57-9350)

Note: Not illustrated

$93.99

$

Usually ships in 3-6 days

0

31

Toro NN10249

Nut
(Superseded to 71-6440)

$

$

Not available

32

Toro NN10248

Nut
(Superseded to 71-6430)

$

$

Not available

33

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available
