74101 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 069000001 - 069999999) (1996) CRANKSHAFT, CAMSHAFT & FLYWHEEL ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

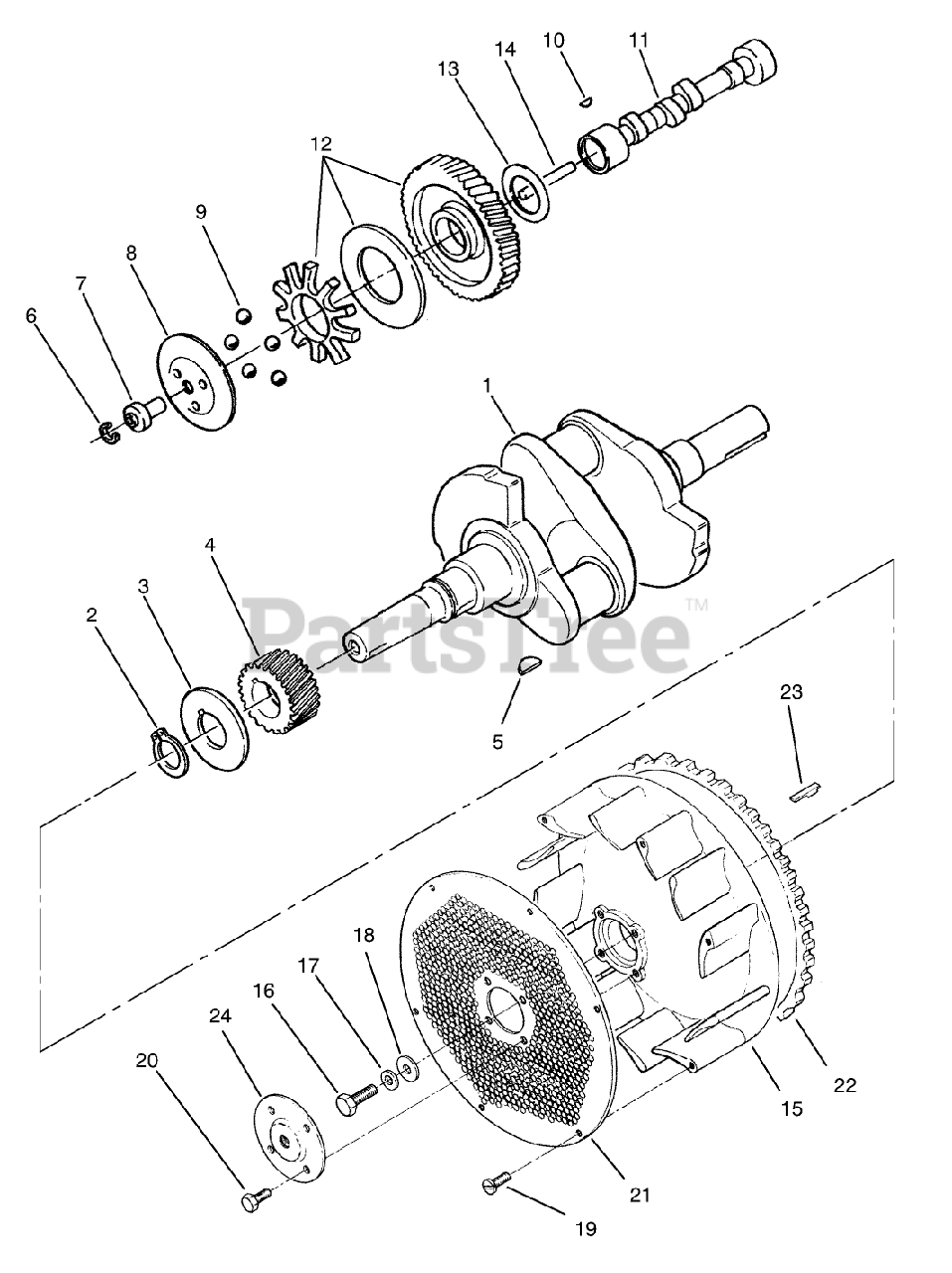

CRANKSHAFT, CAMSHAFT & FLYWHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro NN10477

CRANKSHAFT

$

$

Not available

Toro NN10917

Crankshaft-620-Z
(Superseded to 92-0959)

Note: Not illustrated

$

$

Not available

2

Toro 57-9710

RING

$

$

Not available

3

Toro 57-8140

WASHER

$

$

Not available

4

Toro 57-8130

GEAR

$

$

Not available

5

Toro 57-9660

KEY

$7.99

$

Usually ships in 3-6 days

0

6

Toro 57-9090

RING

$

$

Not available

7

Toro 57-9130

HUB-GOVERNOR CUP

$

$

Not available

8

Toro 59-0450

CUP-GOVERNOR

$

$

Not available

9

Toro 57-9640

BEARING

$

$

Not available

10

Toro 57-9660

KEY

$7.99

$

Usually ships in 3-6 days

0

11

Toro NN10032

CAMSHAFT (16&18HP)

$

$

Not available

Toro NN10033

Camshaft (Includes item 13)
(Superseded to 71-6320)

Note: Not illustrated

$1016.99

$

Usually ships in 3-6 days

0

12

Toro 57-8210

GEAR ASM

$

$

Not available

13

Toro 57-8230

WASHER-THRUST

$

$

Not available

14

Toro 59-0400

PIN-CENTER

$

$

Not available

15

Toro NN10171

Flywheel-w/Ring Gear
(Superseded to 71-5920)

$

$

Not available

16

Toro 57-8150

SCREW

$

$

Not available

17

Toro NN10541

Washer
(Superseded to 82-1320)

$

$

Not available

18

Toro 59-0810

WASHER-FLAT

$

$

Not available

19

Toro NN10409

Bolt
(Superseded to 71-6340)

$

$

Not available

20

Toro 59-1120

HX HD LOCK CAPSCREW

$

$

Not available

21

Toro 79-6440

Screen

$166.99

$

Usually ships in 3-6 days

0

22

Toro 57-8180

GEAR

$

$

Not available

23

Toro NN10332

Key
(Superseded to 71-6190)

$

$

Not available

24

Toro NN10524

LIFTING-BRKT (ZINC)

$

$

Not available
