74101 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 039000001 - 039999999) (1993) CARBURETOR COMPONENTS ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

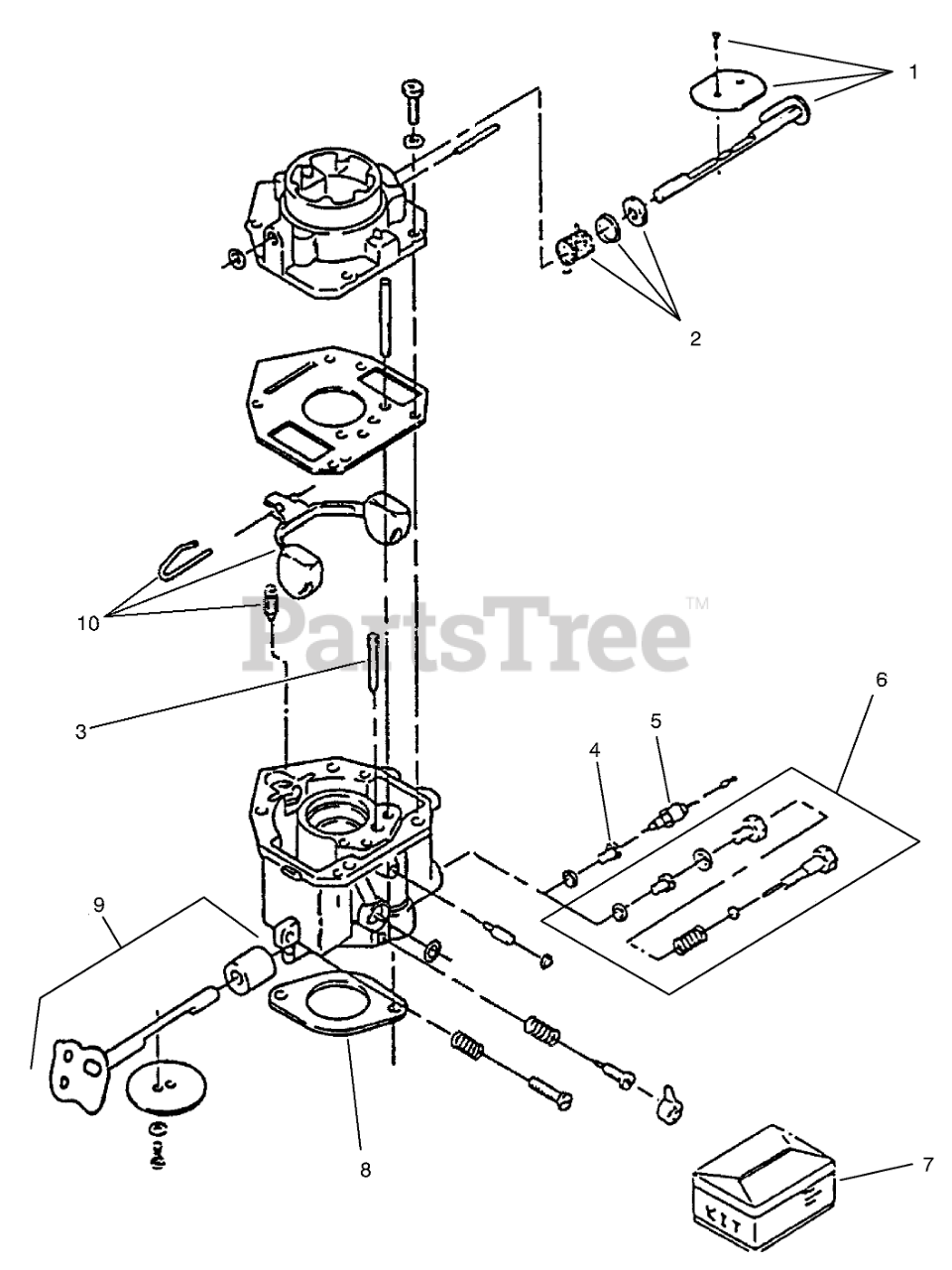

CARBURETOR COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro NN10207

Choke Shaft Kit
(Superseded to 72-3860)

$

$

Not available

2

Toro NN10809

CHOKE-LEVER KIT

$114.99

$

Usually ships in 3-6 days

0

Toro NN10208

Choke Lever Kit 620-Z
(Superseded to 72-3870)

Note: Not illustrated

$

$

Not available

3

Toro NN10201

Idle Jet
(Superseded to 62-2820)

$

$

Not available

Toro NN10859

IDLE-JET

Note: Not illustrated

$

$

Not available

4

Toro NN10199

POWER JET

$

$

Not available

Toro 57-9050

POWER JET

Note: Not illustrated

$

$

Not available

Toro NN10858

FIXED-JET

Note: Not illustrated

$

$

Not available

Toro NN10810

FIXED-JET PKG

Note: Not illustrated

$

$

Not available

5

Toro NN10808

Solenoid
(Superseded to 82-0800)

$240.99

$

In Stock, only 1 left!

0

6

Toro NN10810

FIXED-JET PKG

$

$

Not available

7

Toro NN10807

Carburetor Repair Kit
(Superseded to 82-0780)

$412.99

$

Usually ships in 3-6 days

0

8

Toro 57-9200

Gasket
(Superseded to 82-0850)

$11.99

$

In Stock, only 1 left!

0

9

Toro NN10811

SHAFT-THROTTLE KIT

$

$

Not available

10

Toro NN10209

Kit-Float (Includes Float Pin)
(Superseded to 62-2800)

$145.99

$

Usually ships in 3-6 days

0
