74096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 403247447 - 999999999) Center Deck Spindle, Blade and Baffle Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

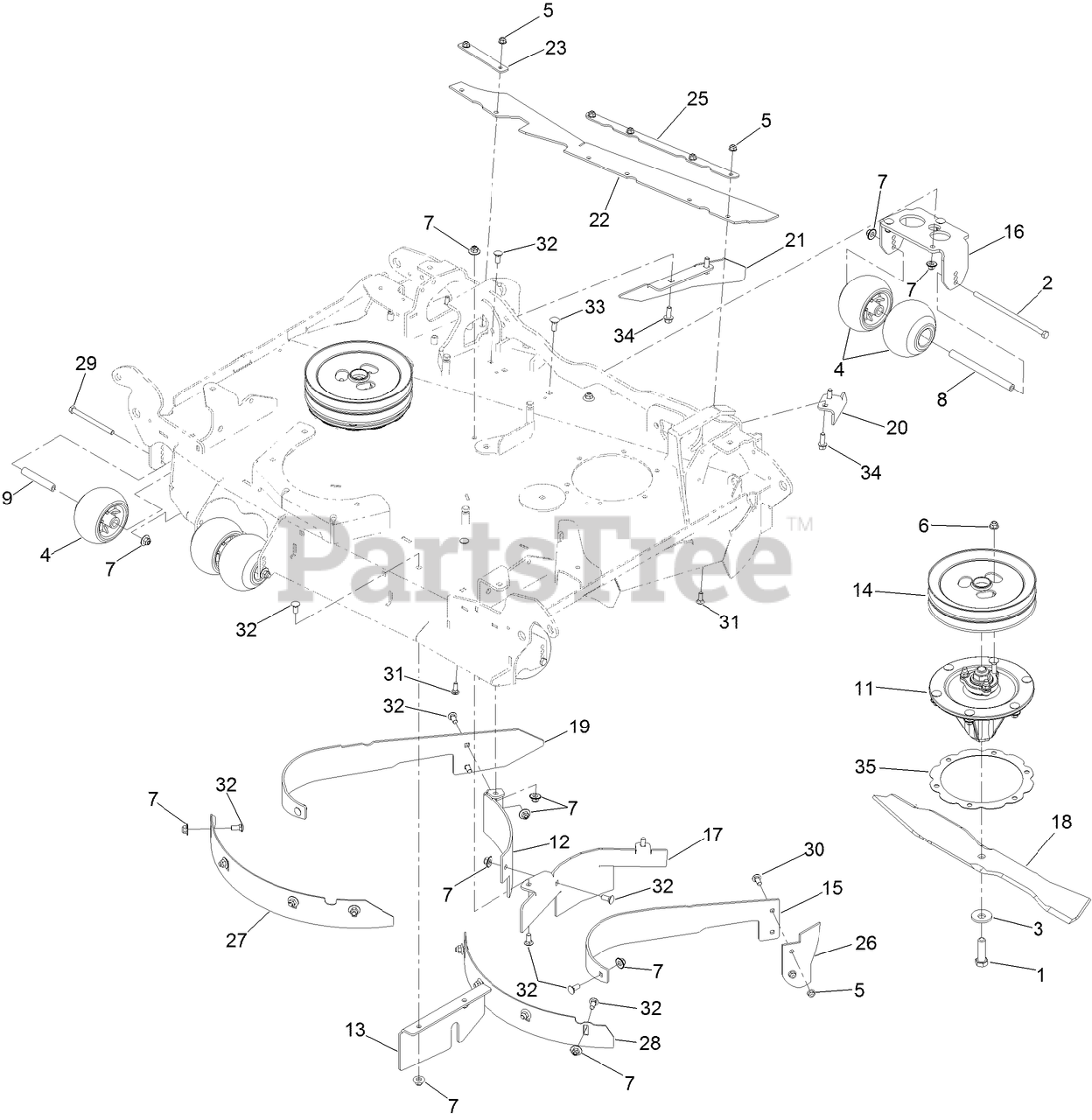

Center Deck Spindle, Blade and Baffle Assembly Parts Diagram

  • Title
1

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

2

Toro 99-7203

SCREW-HH

$9.99

$

In Stock, Qty 10

0

3

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

4

Toro 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 126-6115

SPACER-WHEEL

$11.99

$

In Stock, Qty 18

0

9

Toro 126-7140

SPACER-WHEEL SHORT

$15.99

$

In Stock, only 3 left!

0

11

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 2 left!

0

12

Toro 135-0601-01

BAFFLE-CENTER, REAR (RH)

$60.99

$

Usually ships in 3-6 days

0

13

Toro 135-0603-01

PLATE-BLOCK, FRONT

$28.99

$

Usually ships in 3-6 days

0

14

Toro 135-0746

SHEAVE-DOUBLE

$205.99

$

Usually ships in 3-6 days

0

15

Toro 135-0792-01

BAFFLE-DOGLEG, CENTER (LH)

$69.99

$

Usually ships in 3-6 days

0

16

Toro 135-1036-01

BRACKET-ANTISCALP, REAR

$53.99

$

Usually ships in 3-6 days

0

17

Toro 135-1827-01

BAFFLE-CENTER

$52.99

$

Usually ships in 3-6 days

0

18

Toro 135-2446

BLADE-MULCH, 24.5IN

$49.99

$

In Stock, only 4 left!

0

19

Toro 135-2451-01

BAFFLE-DOGLEG, CENTER (RH)

$69.99

$

Usually ships in 3-6 days

0

20

Toro 135-2452-01

BAFFLE-BREAKER

$15.99

$

Usually ships in 3-6 days

0

21

Toro 135-2453-01

PLATE-FIN, DISCHARGE

$31.99

$

Usually ships in 3-6 days

0

22

Toro 135-2618

FLAP-DISCHARGE

$35.99

$

Usually ships in 3-6 days

0

23

Toro 135-2455-03

SUPPORT-FLAP, LH

$7.99

$

Usually ships in 3-6 days

0

25

Toro 135-2457-03

SUPPORT-FLAP, LH

$13.99

$

Usually ships in 3-6 days

0

26

Toro 135-2458

GUARD-DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

27

Toro 135-2459-01

BAFFLE-DEPTH, LH

$34.99

$

Usually ships in 3-6 days

0

28

Toro 135-2460-01

BAFFLE-DEPTH, RH

$34.99

$

Usually ships in 3-6 days

0

29

Toro 323-38

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

30

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

31

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

32

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

33

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

34

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

35

Toro 135-2639

RING-SPACER, HOUSING
(Superseded to 140-0986)

$17.99

$

Usually ships in 3-6 days

0
