74096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 403247447 - 999999999) Center Deck Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

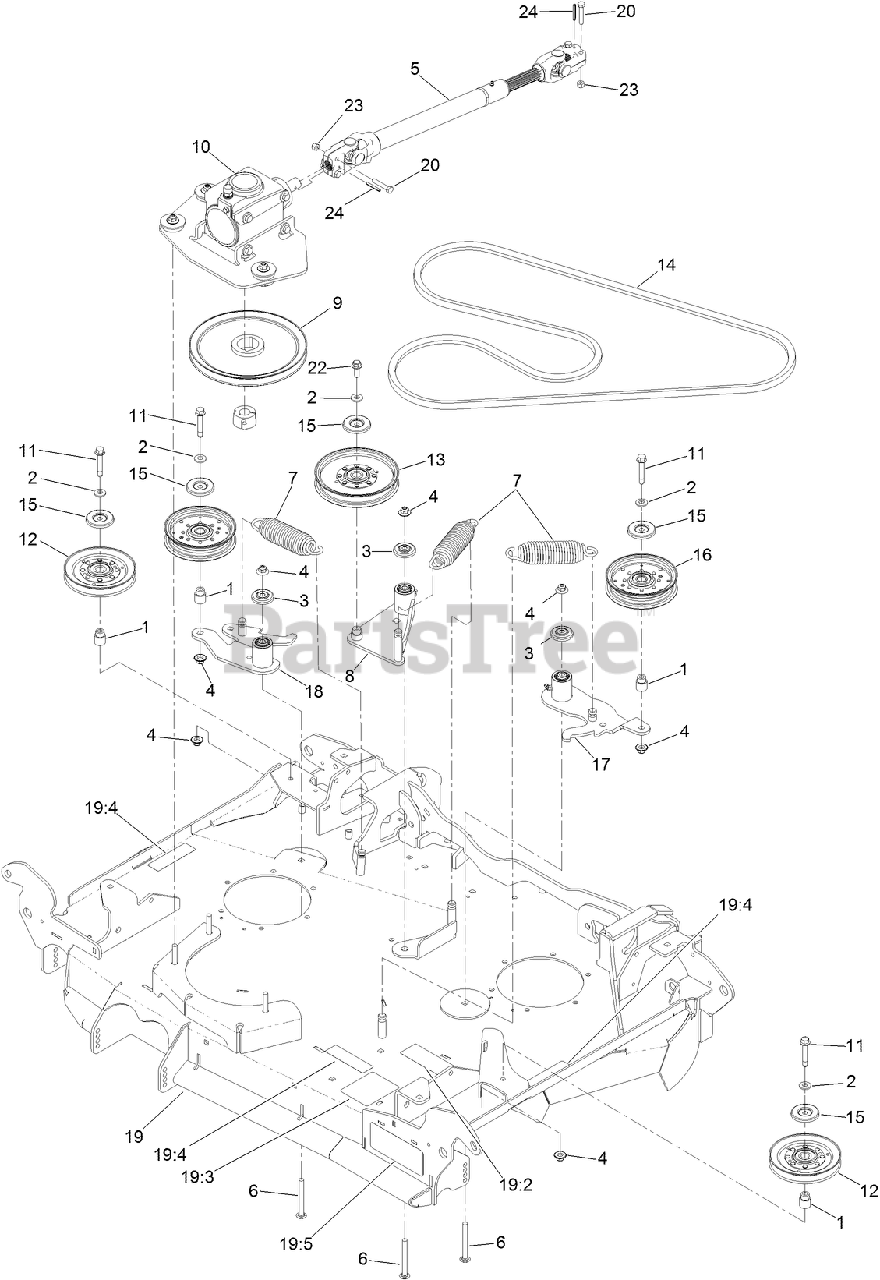

Center Deck Assembly Parts Diagram

  • Title

1

Toro 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

2

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 10

0

4

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 110-3575

DRIVESHAFT ASM

$949.99

$

In Stock, only 2 left!

0

6

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$7.99

$

In Stock, only 2 left!

0

7

Toro 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

8

Toro 126-2585

IDLER ARM ASM

$192.99

$

In Stock, only 2 left!

0

9

Toro 126-2822

PULLEY

$140.99

$

Usually ships in 3-6 days

0

10

Toro 126-2951

See Supercession: 130-8659
(Superseded to 130-8659)

$961.99

$

Usually ships in 3-6 days

0

11

Toro 126-2956

SCREW-HHF W/ PATCH

$6.99

$

In Stock, only 1 left!

0

12

Toro 126-2960

IDLER-V

$68.99

$

In Stock, only 2 left!

0

13

Toro 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 20+

0

14

Toro 126-7924

V-BELT

$126.99

$

In Stock, Qty 20+

0

15

Toro 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

16

Toro 126-9187

PULLEY-IDLER, FLAT

$63.99

$

In Stock, Qty 5

0

17

Toro 126-9435

IDLER ASM

$181.99

$

Usually ships in 3-6 days

0

18

Toro 126-9438

IDLER ASM

$174.99

$

Usually ships in 3-6 days

0

19

Toro 135-0359

CENTER DECK ASM

$

$

Not available

19:2

Toro 126-9127

DECAL-ROUTING, BELT

$8.99

$

Usually ships in 3-6 days

0

19:3

Toro 109-6036

DECAL-ROLLER, ANTI-SCALP

$7.49

$

In Stock, only 1 left!

0

19:4

Toro 112-9028

DECAL-COVER, MISSING

$23.99

$

Usually ships in 3-6 days

0

19:5

Toro 136-9041

DECAL

$38.99

$

Usually ships in 3-6 days

0

20

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 19

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0
