74096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 403247446) RH Wing Deck Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

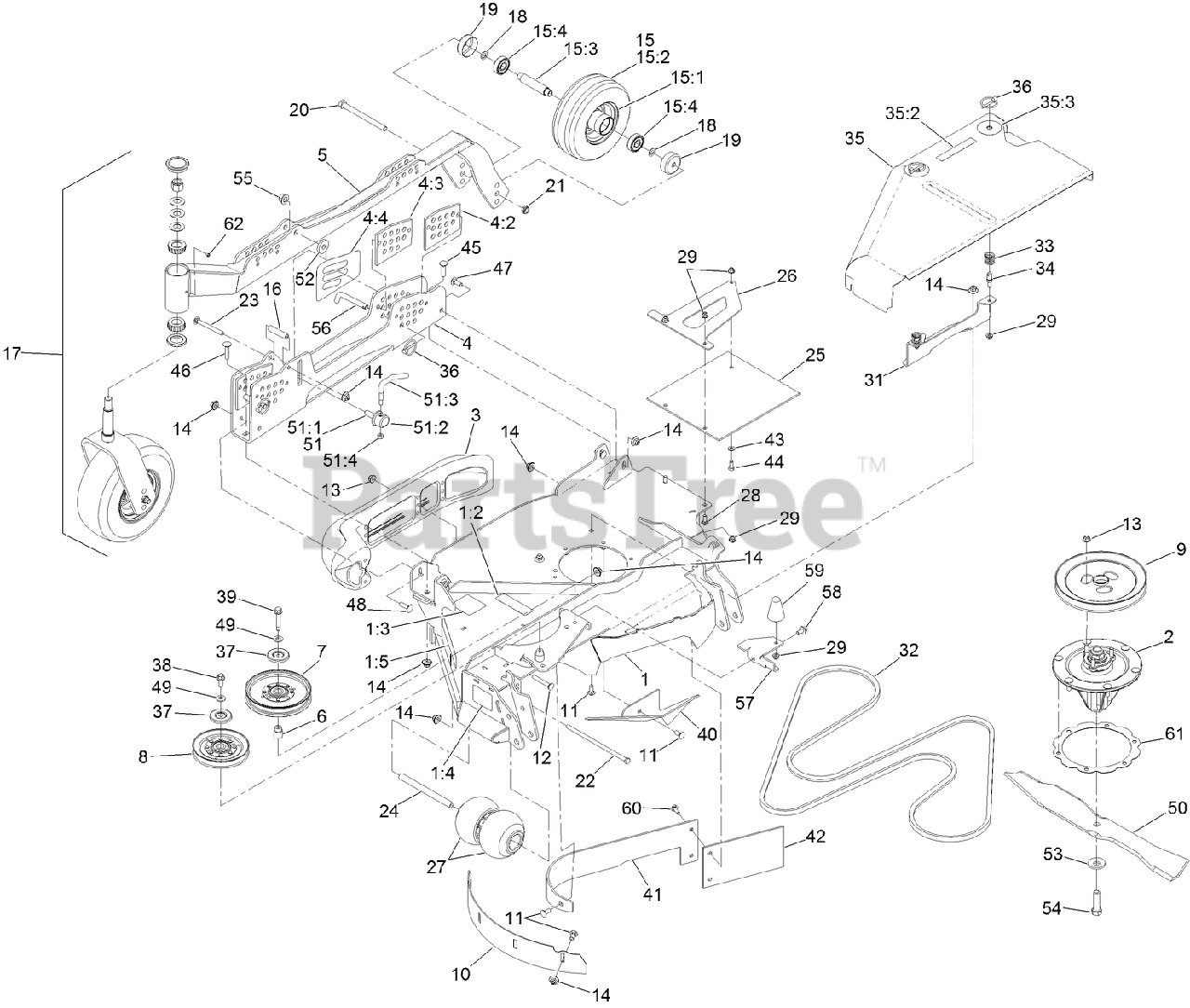

RH Wing Deck Assembly Parts Diagram

  • Title

1

Toro 135-0718

RH WING DECK DECAL ASM

$

$

Not available

1:2

Toro 112-9028

DECAL-COVER, MISSING

$22.99

$

Usually ships in 3-6 days

0

1:3

Toro 135-0664

DECAL-DANGER, THROWN OBJECT

$20.99

$

Usually ships in 3-6 days

0

1:4

Toro 135-0670

DECAL-WARNING, PINCH POINT

$5.49

$

Usually ships in 3-6 days

0

1:5

Toro 136-9042

DECAL

$42.99

$

Usually ships in 3-6 days

0

2

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 2 left!

0

3

Toro 112-1479

SKID-BUMPER, DECK

$101.99

$

Usually ships in 3-6 days

0

4

Toro 135-2432

RH HOC CHANNEL ASM
(Superseded to 135-5595)

$626.99

$

Usually ships in 3-6 days

0

4:2

Toro 135-2422

PLATE-GUIDE, HOC (LH)

$78.99

$

In Stock, Qty 5

0

4:3

Toro 135-2423

PLATE-GUIDE, HOC (RH)

$78.99

$

In Stock, Qty 5

0

4:4

Toro 126-8760

DECAL-HEIGHT OF CUT, RH

$14.99

$

Usually ships in 3-6 days

0

5

Toro 135-2434-01

See Supercession: 135-3788-01
(Superseded to 135-3788-01)

$681.99

$

Usually ships in 3-6 days

0

6

Toro 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

7

Toro 126-7685

IDLER-PULLEY

$62.99

$

In Stock, Qty 7

0

8

Toro 126-2960

IDLER-V

$64.99

$

In Stock, only 4 left!

0

9

Toro 135-0745-03

SHEAVE-SINGLE 96 RD (TORO)
(Superseded to 135-0745)

$193.99

$

In Stock, only 1 left!

0

10

Toro 135-2460-01

BAFFLE-DEPTH, RH

$34.99

$

Usually ships in 3-6 days

0

11

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

12

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 135-2645

WHEEL AND TIRE ASM

$109.99

$

Usually ships in 3-6 days

0

15:1

Toro 135-2646

WHEEL
(Superseded to 135-2645)

$109.99

$

Usually ships in 3-6 days

0

15:2

Toro 112-7065

TIRE

$

$

Currently unavailable

15:3

Toro 126-7904

AXLE-CASTER

$23.99

$

In Stock, only 2 left!

0

15:4

Toro 116-4004

BEARING

$19.99

$

In Stock, only 3 left!

0

16

Toro 135-2424

SPACER

$15.99

$

Usually ships in 3-6 days

0

17

CASTER WHEEL ASM

Note: Not serviced separately

$

$

Not available

18

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

0

19

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

20

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

21

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

22

Toro 99-7203

SCREW-HH

$9.99

$

In Stock, Qty 10

0

23

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

24

Toro 126-6115

SPACER-WHEEL

$11.99

$

In Stock, Qty 18

0

25

Toro 135-2068

GUARD-TIRE

$25.99

$

In Stock, only 1 left!

0

26

Toro 135-2067-03

SUPPORT-FLAP, RH

$20.99

$

In Stock, only 1 left!

0

27

Toro 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

28

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

29

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Toro 135-2653-03

BRACKET-SHIELD MOUNT, OUTER

$24.99

$

Usually ships in 3-6 days

0

32

Toro 126-6447

BELT-V

$128.99

$

In Stock, Qty 8

0

33

Toro 126-1503

SPRING

$2.99

$

In Stock, only 1 left!

0

34

Toro 126-1504

PIN-SPRING
(Superseded to 135-7455)

$5.49

$

Usually ships in 3-6 days

0

35

Toro 135-1816

RH WING SHIELD ASM

$291.99

$

Usually ships in 3-6 days

0

35:2

Toro 93-6687

DECAL-NO STEP

$18.99

$

Usually ships in 3-6 days

0

35:3

Toro 135-3165

DECAL-SCRATCH COVER

$3.49

$

Usually ships in 3-6 days

0

36

Toro 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

37

Toro 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

38

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

39

Toro 126-2956

SCREW-HHF W/ PATCH

$6.49

$

In Stock, only 2 left!

0

40

Toro 135-2448-01

BAFFLE-DEFLECT, RH

$39.99

$

Usually ships in 3-6 days

0

41

Toro 135-0795-01

BAFFLE-DOGLEG, RH

$58.99

$

Usually ships in 3-6 days

0

42

Toro 135-0091

FLAP-RUBBER

$13.99

$

Usually ships in 3-6 days

0

43

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

44

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

45

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

46

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

47

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

48

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

49

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

50

Toro 135-2446

BLADE-MULCH, 24.5IN

$49.99

$

In Stock, only 4 left!

0

51

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

51:1

Toro 106-3239

SCREW-LOCK

$52.99

$

Usually ships in 3-6 days

0

51:2

Toro 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

51:3

Toro 106-3241

See Supercession: 107-1664
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

51:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

52

Toro 30-8770

WASHER

$11.99

$

In Stock, only 2 left!

0

53

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

54

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

55

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

56

Toro 135-2073

PIN-HOC

$27.99

$

In Stock, Qty 13

0

57

Toro 135-2611-01

BRACKET-COVER RETAINER

$17.99

$

Usually ships in 3-6 days

0

58

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

59

Toro 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 1 left!

0

60

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

61

Toro 135-2639

RING-SPACER, HOUSING
(Superseded to 140-0986)

$17.99

$

Usually ships in 3-6 days

0

62

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11
