74096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 403247446) Rear Caster Wheel Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

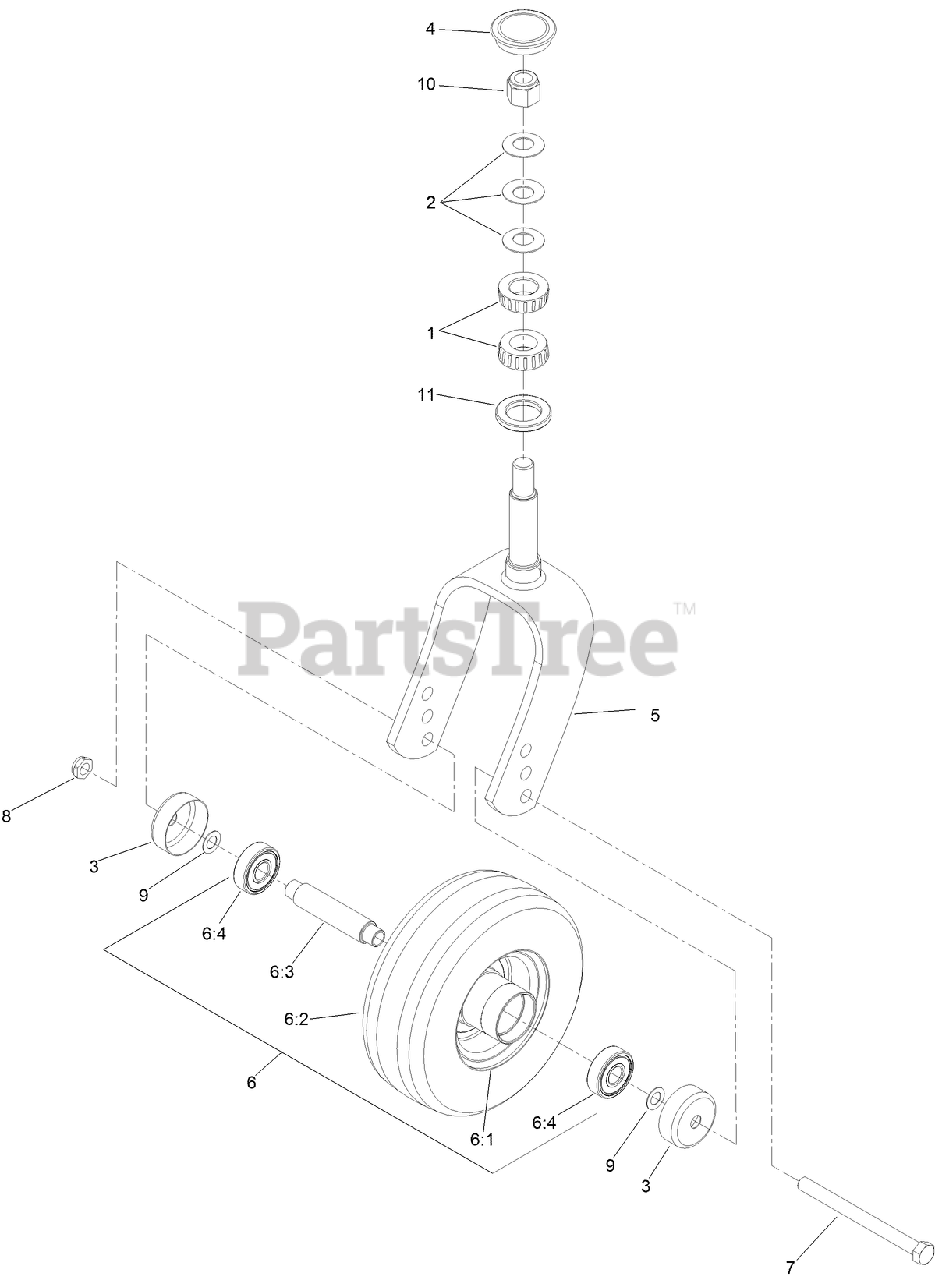

Rear Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

2

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

4

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

5

Toro 126-7902-01

FORK-CASTER
(Superseded to 135-3793-01)

$184.99

$

In Stock, only 2 left!

0

6

Toro 135-2645

WHEEL AND TIRE ASM

$109.99

$

In Stock, only 2 left!

0

6:1

Toro 135-2646

WHEEL
(Superseded to 135-2645)

$109.99

$

In Stock, only 2 left!

0

6:2

Toro 112-7065

TIRE

$

$

Currently unavailable

6:3

Toro 126-7904

AXLE-CASTER

$23.99

$

In Stock, only 2 left!

0

6:4

Toro 116-4004

BEARING

$19.99

$

In Stock, Qty 20+

0

7

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

8

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

10

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

11

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0
