74096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 403247446) Folding Deck Hydraulic Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

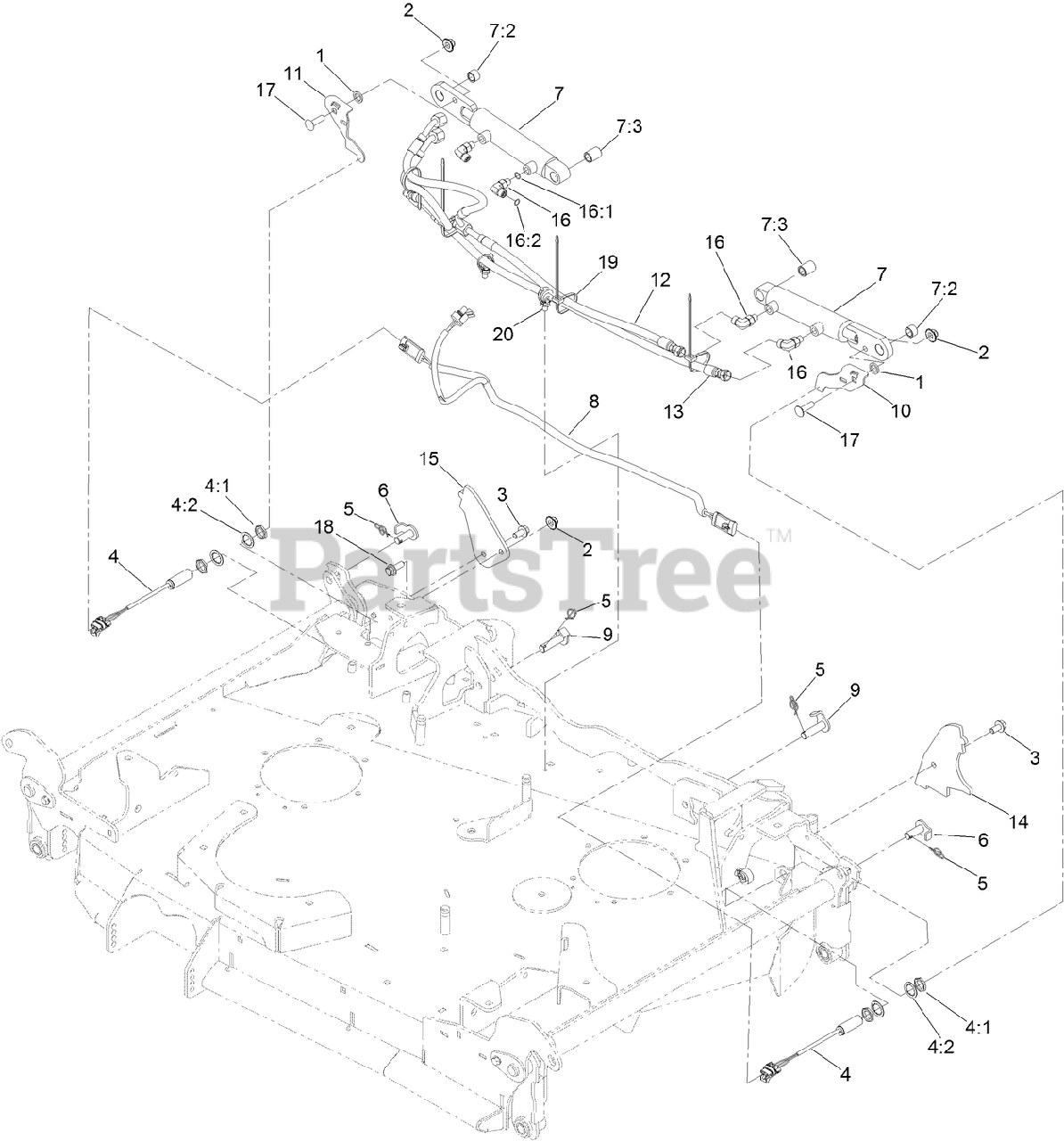

Folding Deck Hydraulic Assembly Parts Diagram

  • Title
1

Toro 62-7120

WASHER

$1.99

$

Usually ships in 3-6 days

0

2

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

4

Toro 115-5300

PROXIMITY SWITCH ASM

$148.99

$

In Stock, Qty 20+

0

4:1

Toro 117-3207

NUT-HEX

$17.99

$

Usually ships in 3-6 days

0

4:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

Usually ships in 3-6 days

0

5

Toro 126-8417

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 17

0

6

Toro 126-8448

EYE-PIN, CYLINDER

$27.99

$

In Stock, only 2 left!

0

7

Toro 126-9000

DECK FOLD CYLINDER ASM

$575.99

$

Usually ships in 3-6 days

0

7:2

Toro 126-8439

BUSHING

$43.99

$

In Stock, only 2 left!

0

7:3

Toro 126-8440

BUSHING

$56.99

$

Usually ships in 3-6 days

0

8

Toro 126-9372

HARNESS-WIRE

$47.99

$

Usually ships in 3-6 days

0

9

Toro 126-9403

BASE-PIN, CYLINDER
(Superseded to 142-3762)

$27.99

$

In Stock, only 2 left!

0

10

Toro 126-9441

See Supercession: 135-3774
(Superseded to 135-3774)

$47.99

$

Usually ships in 3-6 days

0

11

Toro 126-9446

See Supercession: 135-3775
(Superseded to 135-3775)

$58.99

$

Usually ships in 3-6 days

0

12

Toro 135-1760

HOSE ASM

$149.99

$

Usually ships in 3-6 days

0

13

Toro 135-1761

HOSE ASM

$149.99

$

Usually ships in 3-6 days

0

14

Toro 135-2628-01

BRACKET-DECK STOP, LH

$22.99

$

Usually ships in 3-6 days

0

15

Toro 135-2629-01

BRACKET-DECK STOP, RH

$22.99

$

Usually ships in 3-6 days

0

16

Toro 340-132

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

16:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

17

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

18

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

19

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

20

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0
