74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) RH Hydro Assembly No. 135-7910 Parts Diagram

96" Z Master Zero-Turn Mower

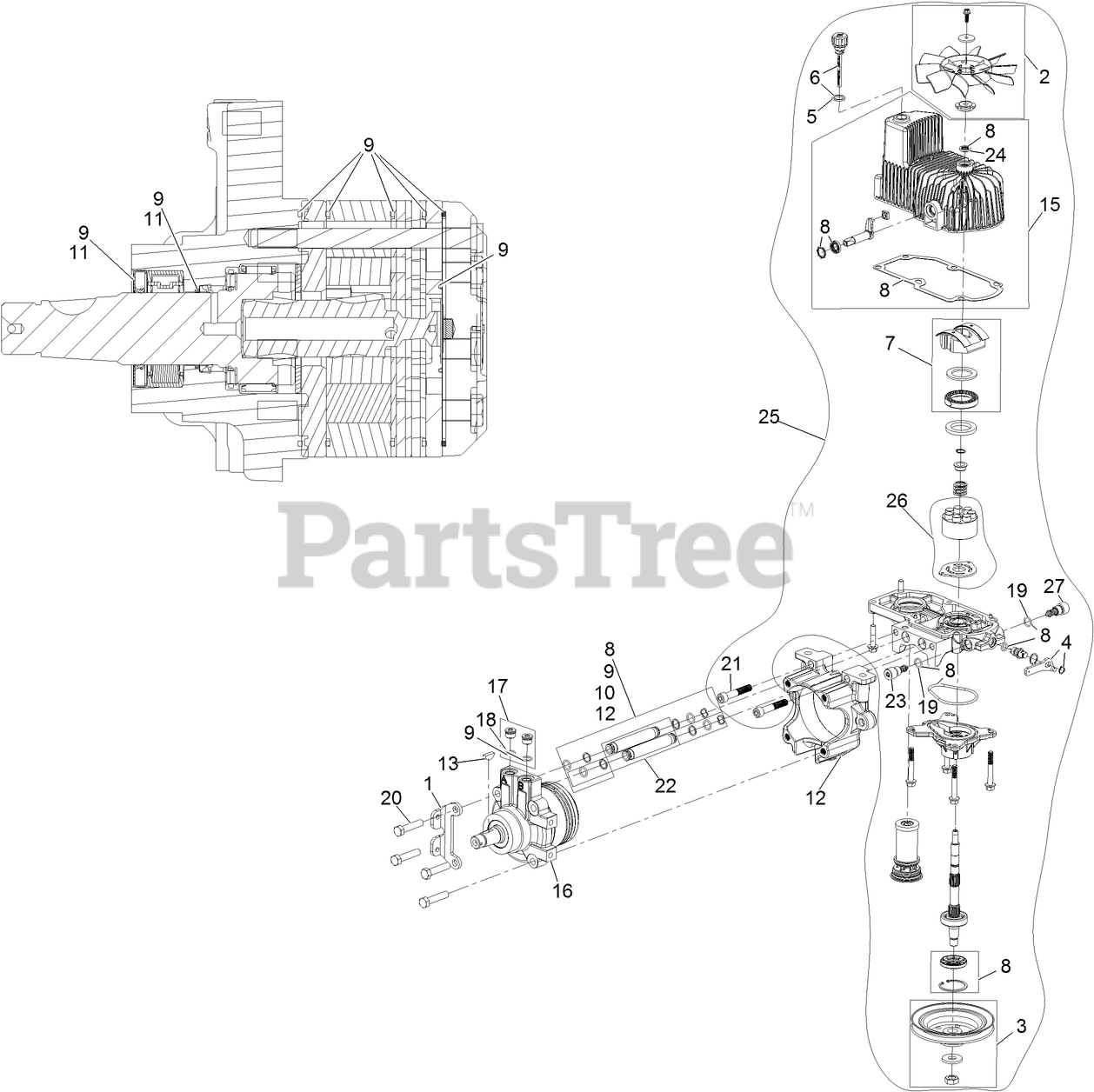

RH Hydro Assembly No. 135-7910 Parts Diagram

  • Title
1

Toro 135-7827

PLATE, HORSE SHOE MOUNT

$31.99

$

In Stock, only 2 left!

0

2

Toro 142-3603

KIT, 7.8 IN FAN

$118.99

$

In Stock, only 4 left!

0

3

Toro 116-0234

PULLEY KIT

$172.99

$

Usually ships in 3-6 days

0

4

Toro 116-0235

HANDLE-BYPASS VALVE, HYDRO

$15.99

$

Usually ships in 3-6 days

0

5

Toro 116-0236

DIPSTICK-HYDRO W/GASKET

$50.99

$

In Stock, only 4 left!

0

6

Toro 116-0237

GASKET-DIPSTICK, HYDRO

$14.99

$

In Stock, only 2 left!

0

7

Toro 116-1367

SWASH BLOCK KIT

$505.99

$

Usually ships in 3-6 days

0

8

Toro 142-3604

KIT, PUMP SEAL

$152.99

$

In Stock, Qty 8

0

9

Toro 116-1369

MOTOR SEAL KIT

$269.99

$

Usually ships in 3-6 days

0

10

Toro 116-1370

TUBE SEAL KIT

$30.99

$

In Stock, only 1 left!

0

11

Toro 116-1371

OUTPUT SHAFT SEAL KIT

$139.99

$

In Stock, only 1 left!

0

12

Toro 116-5469

NOSE CUP-UHT

$295.99

$

Usually ships in 3-6 days

0

13

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

15

Toro 142-4461

KIT, HOUSING-HYDRO RH

$683.99

$

Usually ships in 3-6 days

0

16

Toro 142-3617

KIT, MOTOR TG310CC RH

$1868.99

$

Usually ships in 3-6 days

0

17

Toro 116-7901

MAGNETIC PLUGS SERVICE KIT

$99.99

$

Usually ships in 3-6 days

0

18

Toro 76-1900

O-RING

$4.49

$

Usually ships in 3-6 days

0

19

Toro 116-8662

O-RING-CHECK VALVE

$2.99

$

In Stock, Qty 20+

0

20

Toro 116-8974

SCREW HH

$5.49

$

In Stock, only 3 left!

0

21

Toro 116-8975

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

22

Toro 116-9922

HYDRAULIC TUBE KIT

$144.99

$

Usually ships in 3-6 days

0

23

Toro 126-7466

SHOCK VALVE, 12CC HYDRO

$103.99

$

Usually ships in 3-6 days

0

24

Toro 126-7711

SEAL-FAN DRIVE

$22.99

$

In Stock, Qty 6

0

25

Toro 142-3606

KIT, PUMP SECTION 16CC RH

$1905.99

$

Usually ships in 3-6 days

0

26

Toro 142-4501

KIT - 16CC PORT PLATE,ROTATE GRP

$495.99

$

Usually ships in 3-6 days

0

27

Toro 142-4459

SHOCK VALVE ORIFICED 3800

$110.99

$

Usually ships in 3-6 days

0

99

Toro 116-4245

PULLER-PULLEY

Note: Not illustrated

$215.99

$

Usually ships in 3-6 days

0

99

Toro 116-1373

FLOW TEST KIT

Note: Not illustrated

$1127.99

$

Usually ships in 3-6 days

0
