74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) LH Wing Deck Assembly Parts Diagram
96" Z Master Zero-Turn Mower

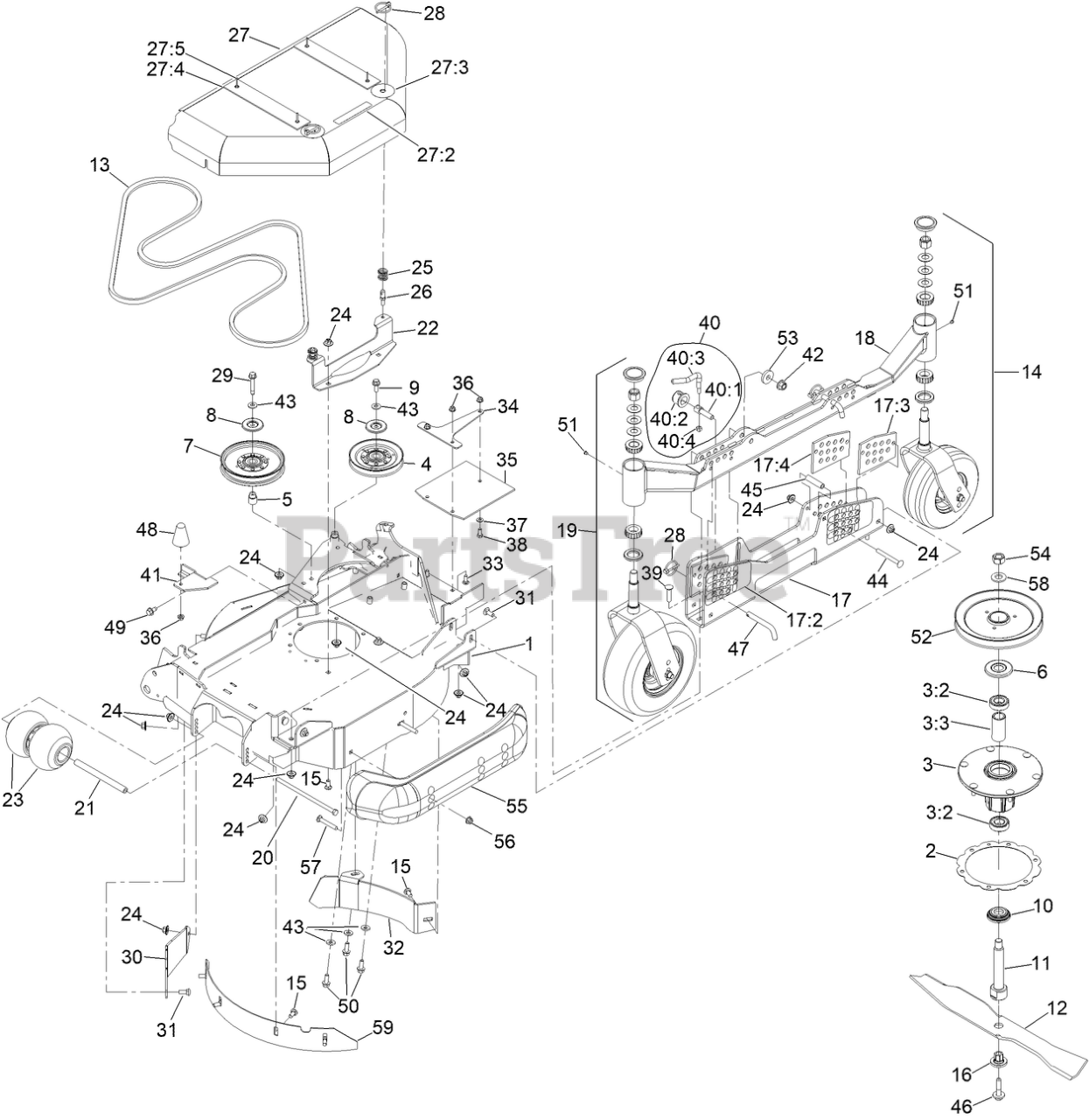

LH Wing Deck Assembly Parts Diagram
Toro 142-5475
$2081.99
$
Toro 140-0986
$17.99
$
Toro 137-9780
$147.99
$
Toro 116-0720
$22.99
$
Toro 138-6042
$9.49
$
Toro 126-2960
$64.99
$
Toro 1-633456
$4.99
$
Toro 103-1330
$5.49
$
Toro 126-7685
$62.99
$
Toro 126-8043
$2.99
$
Toro 3234-42
$3.49
$
Toro 137-9784
$6.49
$
138-6045
$
$
Not available
Toro 140-1246
$39.99
$
Toro 126-6442
$123.99
$
Note: Not serviced separately
$
$
Not available
Toro 3231-12
$6.49
$
Toro 137-9787
$7.99
$
Toro 135-2433
$748.99
$
Toro 126-8597
$14.99
$
Toro 135-2422
$79.99
$
Toro 135-2423
$79.99
$
Toro 135-2436-01
$536.99
$
Note: Not serviced separately
$
$
Not available
Toro 99-7203
$10.99
$
Toro 126-6115
$11.99
$
Toro 135-2653-03
$25.99
$
Toro 103-8415
$23.99
$
Toro 109-6658
$1.49
$
Toro 126-1503
$2.99
$
Toro 135-7455
$5.49
$
Toro 135-6170
$348.99
$
Toro 93-6687
$18.99
$
Toro 135-3165
$3.49
$
Toro 135-6706
$32.99
$
Toro 133-7130
$1.49
$
Toro 92-1298
$3.99
$
Toro 126-2956
$6.49
$
Toro 126-9757-01
$27.99
$
Toro 3231-2
$1.99
$
Toro 135-3461-01
$57.99
$
Toro 3230-16
$2.99
$
Toro 135-0618-03
$11.99
$
Toro 135-1849
$15.99
$
Toro 104-8300
$1.49
$
Toro 3256-23
$2.49
$
Toro 322-3
$0.99
$
Toro 3231-5
$1.49
$
Toro 107-1664
$75.99
$
Toro 106-3239
$53.99
$
Toro 107-1644
$40.99
$
$75.99
$
Toro 3296-29
$2.49
$
Toro 135-2611-01
$17.99
$
Toro 99-5107
$1.99
$
Toro 98-5975
$3.49
$
Toro 3231-11
$5.49
$
Toro 135-2424
$15.99
$
Toro 109-9220
$8.49
$
Toro 135-2073
$27.99
$
Toro 114-1925
$26.99
$
Toro 110-9380
$2.99
$
Toro 3234-11
$4.49
$
Toro 1-811010
$5.49
$
Toro 140-1185
$85.99
$
Toro 30-8770
$11.99
$
Toro 116-7306
$2.99
$
Toro 112-1479
$104.99
$
Toro 104-8301
$1.49
$
Toro 3231-31
$7.49
$
Toro 103-2802
$5.49
$
Toro 135-2459-01
$34.99
$
