74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Center Folding Deck Hydraulic Assembly Parts Diagram

96" Z Master Zero-Turn Mower

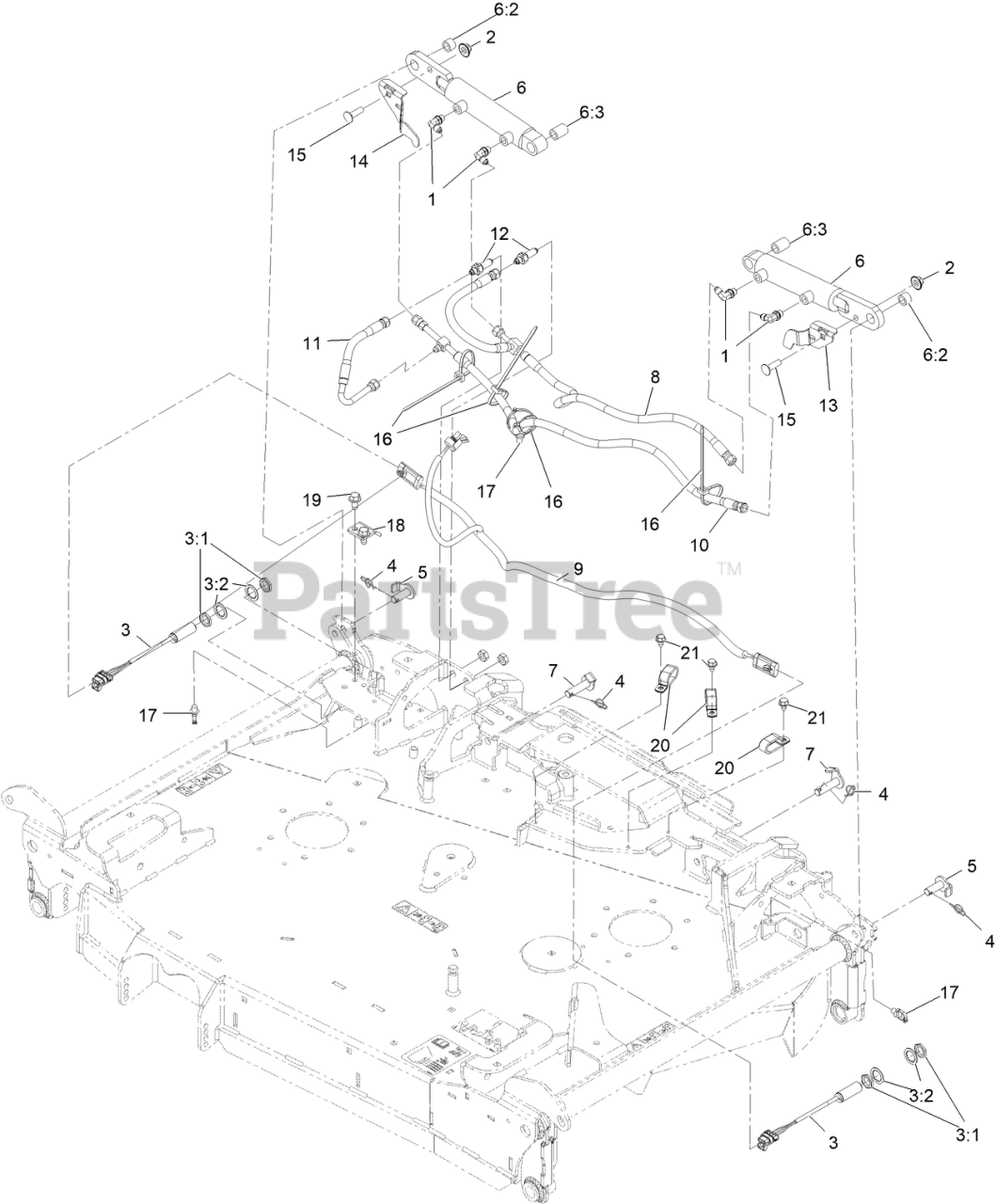

Center Folding Deck Hydraulic Assembly Parts Diagram

  • Title

1

Toro 109-0760

Adapter, 90?

$26.99

$

In Stock, Qty 6

0

2

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 115-5300

PROXIMITY SWITCH ASM

$148.99

$

In Stock, only 1 left!

0

3:1

Toro 117-3207

NUT-HEX

$17.99

$

Usually ships in 3-6 days

0

3:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

Usually ships in 3-6 days

0

4

Toro 126-8417

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 17

0

5

Toro 126-8448

EYE-PIN, CYLINDER

$27.99

$

In Stock, only 2 left!

0

6

Toro 126-9000

DECK FOLD CYLINDER ASM

$575.99

$

Usually ships in 3-6 days

0

6:1:1

Toro 142-2768

KIT, CYL REPAIR

Note: Not illustrated

$113.99

$

Usually ships in 3-6 days

0

6:2

Toro 126-8439

BUSHING

$43.99

$

In Stock, only 2 left!

0

6:3

Toro 126-8440

BUSHING

$56.99

$

Usually ships in 3-6 days

0

7

Toro 142-3762

PIN-CYLINDER

$27.99

$

In Stock, only 2 left!

0

8

Toro 142-6790

HOSE ASM

$236.99

$

In Stock, only 1 left!

0

9

Toro 135-1552

HARNESS-WIRE

$56.99

$

Usually ships in 3-6 days

0

10

Toro 142-6789

HOSE ASM

$216.99

$

In Stock, only 4 left!

0

11

Toro 135-4526

HOSE ASM

$92.99

$

Usually ships in 3-6 days

0

12

Toro 135-5077

FITING-STRAIGHT

$17.99

$

Usually ships in 3-6 days

0

13

Toro 135-5922

PLATE-PROXIMITY, LH

$50.99

$

In Stock, Qty 5

0

14

Toro 135-5923

PLATE-PROXIMITY, RH

$50.99

$

In Stock, only 1 left!

0

15

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

18

Toro 135-6586

BRACKET-GUARD, SWITCH (RH)

$13.99

$

Usually ships in 3-6 days

0

19

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

20

Toro 120-1959

CLAMP

$3.49

$

Usually ships in 3-6 days

0

21

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0
