74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 410000000 - 412999999) Seat Mounting Assembly Parts Diagram

96" Z Master Zero-Turn Mower

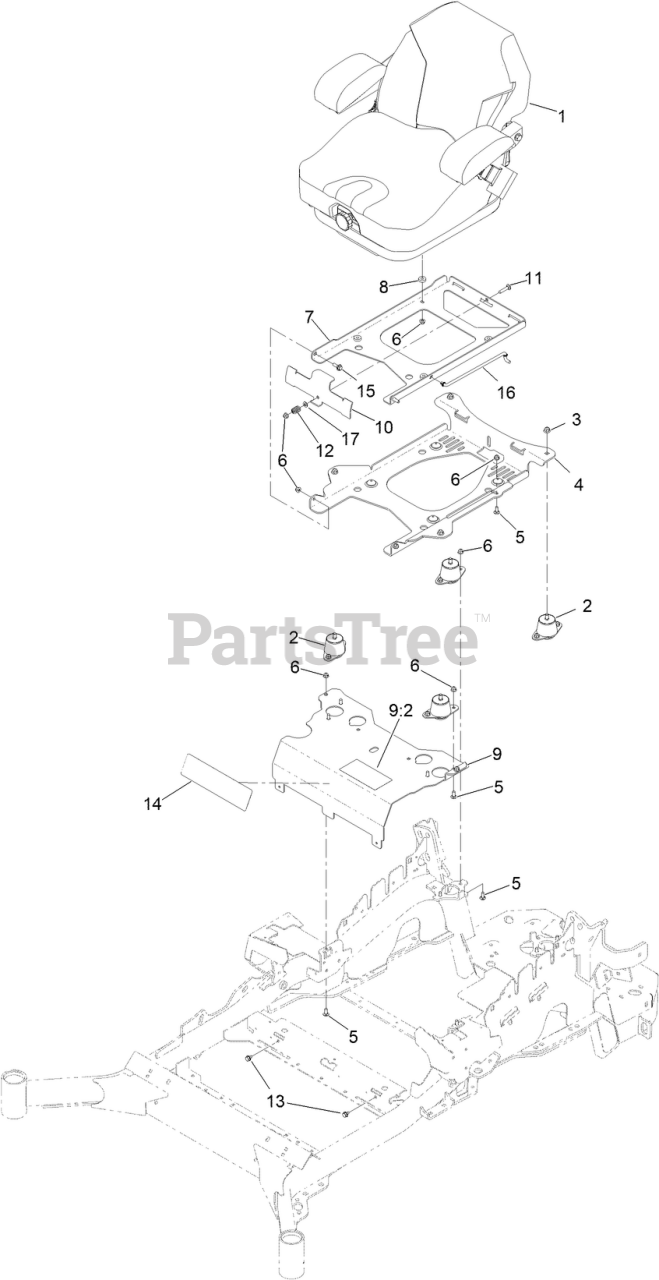

Seat Mounting Assembly Parts Diagram

  • Title

1

Toro 140-8003

SEAT-SUSPENSION

$995.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 116-3860-03

PLATE-TILT, SEAT SUPPORT

$190.99

$

Usually ships in 3-6 days

0

5

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 116-3859-03

PLATE-FRAME, SEAT

$133.99

$

Usually ships in 3-6 days

0

8

Toro 26-4840

See Supercession: 5-0652

$6.99

$

Usually ships in 3-6 days

0

9

Toro 142-3315

MOUNT-SEAT W/DECALS

$274.99

$

Usually ships in 0 days

0

9:2

Toro 142-2935

DECAL-LAZER 96 SERVICE AID

$7.99

$

Usually ships in 3-6 days

0

10

Toro 109-9881-03

PLATE-LATCH, SEAT

$19.99

$

Usually ships in 3-6 days

0

11

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

12

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

13

Toro 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

14

Toro 140-1215

DECAL-CONSOLE

$9.99

$

In Stock, only 1 left!

0

15

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

16

Toro 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
