74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 410000000 - 412999999) Hydraulic Drive Assembly Parts Diagram

96" Z Master Zero-Turn Mower

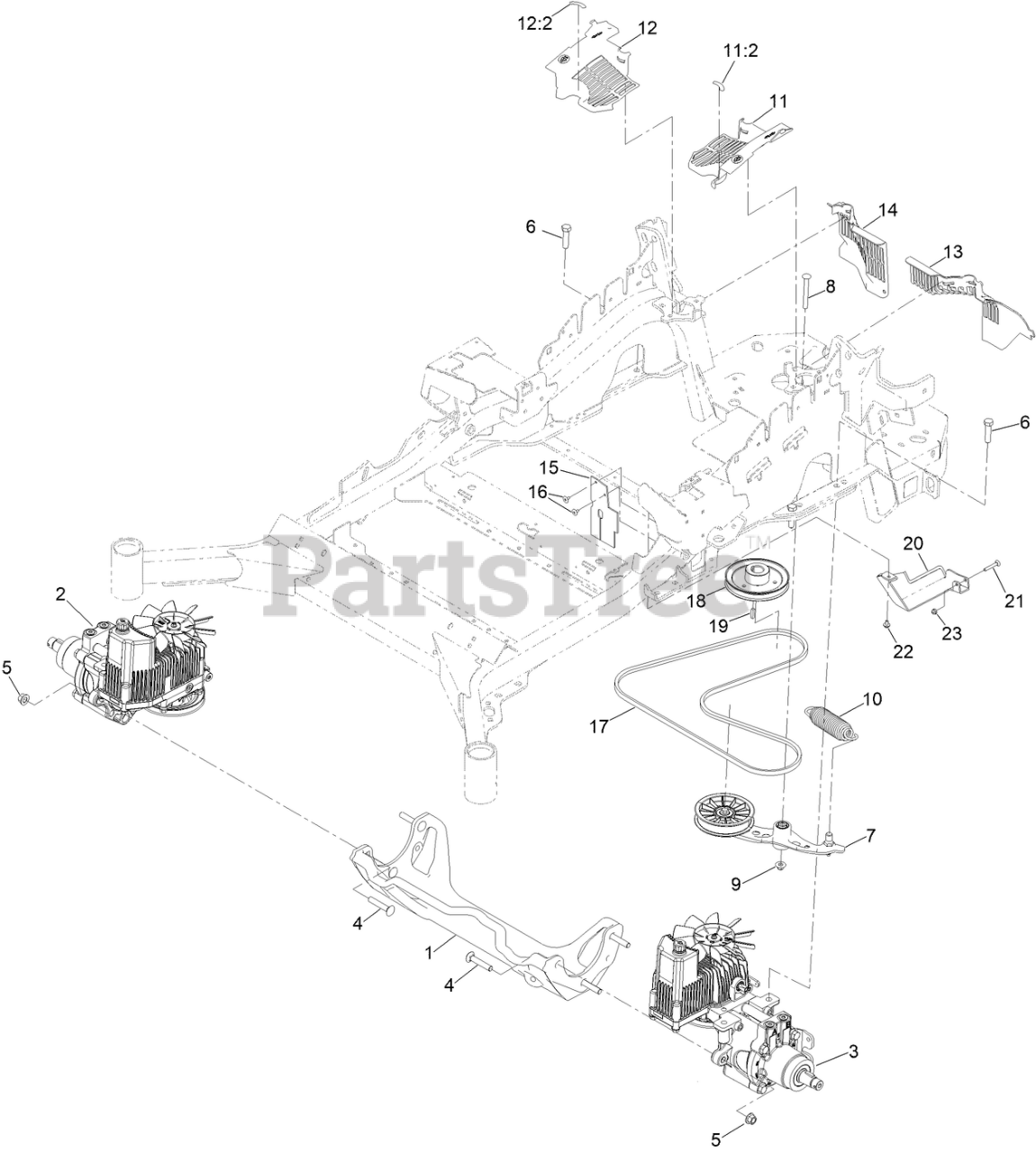

Hydraulic Drive Assembly Parts Diagram

  • Title
1

Toro 116-7558

CRADLE-HYDRO

$227.99

$

Usually ships in 3-6 days

0

2

Toro 135-7910

HYDRO-RH

$3567.99

$

Usually ships in 3-6 days

0

3

Toro 135-7909

HYDRO-LH

$3567.99

$

Usually ships in 3-6 days

0

4

Toro 126-0095

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

5

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

6

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

7

Toro 116-1255

PUMP IDLER ASM

$217.99

$

In Stock, Qty 12

0

8

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$7.99

$

In Stock, Qty 14

0

9

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

0

11

Toro 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

11:2

Toro 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

12

Toro 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

12:2

Toro 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

13

Toro 109-9709

GUARD-HYDRO REAR, LH TRIM

$19.99

$

Usually ships in 3-6 days

0

14

Toro 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 3 left!

0

15

Toro 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

16

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

17

Toro 126-9835

BELT-V

$47.99

$

In Stock, Qty 20+

0

18

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

19

$2.49

$

In Stock, Qty 20+

0

20

Toro 142-3469

TANK GUARD WLDMNT

$119.99

$

Usually ships in 3-6 days

0

21

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, only 3 left!

0

22

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, Qty 11

0

23

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

99

Toro 114-4713

HYPR-OIL 500 (QUART)

Note: Not illustrated

$16.99

$

In Stock, Qty 8

0

99

Toro 114-4714

HYPR-OIL 500 (GALLON)

Note: Not illustrated

$60.99

$

In Stock, only 1 left!

0

99

Toro 114-4715

HYPR-OIL 500-5 (5 GALLON)

Note: Not illustrated

$313.99

$

Usually ships in 3-6 days

0

99

Toro 117-0390

FILTER-HYDRO

Note: Not illustrated

$56.99

$

In Stock, Qty 20+

0
