74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 400000000 - 409999999) RH Wing Deck Assembly Parts Diagram

96" Z Master Zero-Turn Mower

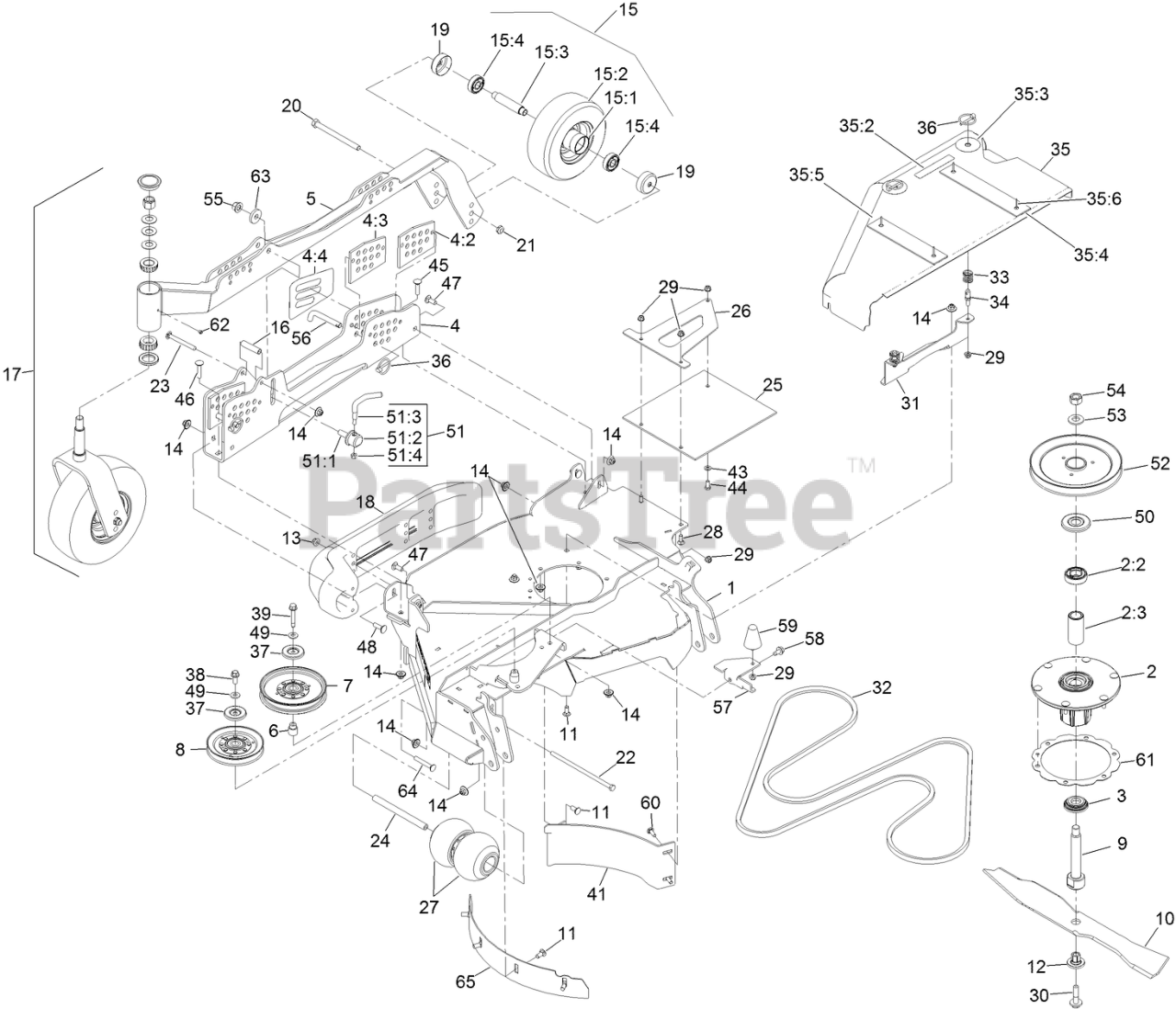

RH Wing Deck Assembly Parts Diagram

  • Title

1

Toro 140-0978

RH WING DECK ASM

$2758.99

$

Usually ships in 3-6 days

0

2

Toro 137-9780

SPINDLE ASM

$156.99

$

In Stock, Qty 10

0

2:2

Toro 116-0720

BEARING-BALL

$23.99

$

In Stock, Qty 20+

0

2:3

Toro 138-6042

SPACER-BEARING

$9.99

$

Usually ships in 3-6 days

0

3

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, Qty 12

0

4

Toro 135-5595

RH HOC CHANNEL ASM

$733.99

$

Usually ships in 3-6 days

0

4:2

Toro 135-2422

PLATE-GUIDE, HOC (LH)

$84.99

$

In Stock, Qty 5

0

4:3

Toro 135-2423

PLATE-GUIDE, HOC (RH)

$84.99

$

In Stock, Qty 5

0

4:4

Toro 126-8760

DECAL-HEIGHT OF CUT, RH

$

$

Not available

5

Toro 135-3788-01

TUBE-HOC , RH

$797.99

$

Usually ships in 3-6 days

0

6

Toro 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

7

Toro 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 20+

0

8

Toro 126-2960

IDLER-V

$68.99

$

In Stock, only 4 left!

0

9

138-6045

SHAFT-SPINDLE

$

$

Not available

10

Toro 140-1246

BLADE-24.50 MULCH

$42.99

$

In Stock, Qty 19

0

11

Toro 3231-12

BOLT-CARR

$6.99

$

In Stock, only 3 left!

0

12

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

15

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

15:1

Toro 135-2646

WHEEL
(Superseded to 135-2645)

$116.99

$

In Stock, only 4 left!

0

15:2

Toro 112-7065

TIRE

$

$

Currently unavailable

15:3

Toro 126-7904

AXLE-CASTER

$25.99

$

In Stock, only 2 left!

0

15:4

Toro 116-4004

BEARING

$20.99

$

In Stock, Qty 20+

0

16

Toro 135-2424

SPACER

$17.99

$

Usually ships in 3-6 days

0

17

CASTER WHEEL ASM

Note: Not serviced separately

$

$

Not available

18

Toro 112-1479

SKID-BUMPER, DECK

$110.99

$

Usually ships in 3-6 days

0

19

Toro 135-3218

GUARD, SEAL

$5.99

$

Usually ships in 3-6 days

0

20

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

21

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

22

Toro 99-7203

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

23

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, Qty 9

0

24

Toro 126-6115

SPACER-WHEEL

$12.99

$

In Stock, only 4 left!

0

25

Toro 135-2068

GUARD-TIRE

$28.99

$

In Stock, only 1 left!

0

26

Toro 135-2067-03

SUPPORT-FLAP, RH

$21.99

$

In Stock, only 1 left!

0

27

Toro 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

28

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

29

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

31

Toro 135-2653-03

BRACKET-SHIELD MOUNT, OUTER

$26.99

$

Usually ships in 3-6 days

0

32

Toro 126-6447

BELT-V

$136.99

$

In Stock, Qty 15

0

33

Toro 126-1503

SPRING

$2.99

$

Usually ships in 3-6 days

0

34

Toro 135-7455

PIN, SPRING

$5.49

$

In Stock, only 3 left!

0

35

Toro 135-6171

RH WING SHIELD ASM

$370.99

$

Usually ships in 3-6 days

0

35:2

Toro 93-6687

DECAL-NO STEP

$20.99

$

Usually ships in 3-6 days

0

35:3

Toro 135-3165

DECAL-SCRATCH COVER

$3.99

$

Usually ships in 3-6 days

0

35:4

Toro 135-6706

PLATE

$35.99

$

Usually ships in 3-6 days

0

35:5

Toro 135-6707

PLATE-FRONT

$36.99

$

Usually ships in 3-6 days

0

35:6

Toro 133-7130

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

36

Toro 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

37

Toro 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

38

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

39

Toro 126-2956

SCREW-HHF W/ PATCH

$6.99

$

In Stock, only 2 left!

0

41

Toro 135-3540-01

BAFFLE-BLOCK, RH WING

$61.99

$

Usually ships in 3-6 days

0

43

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

44

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

45

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

46

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

47

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

48

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

49

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

50

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 12

0

51

Toro 107-1664

LEVER ASM

$79.99

$

Usually ships in 3-6 days

0

51:1

Toro 106-3239

SCREW-LOCK

$56.99

$

Usually ships in 3-6 days

0

51:2

Toro 107-1644

CAP-LOCK

$42.99

$

In Stock, only 2 left!

0

51:3

Toro 106-3241

See Supercession: 107-1664
(Superseded to 107-1664)

$79.99

$

Usually ships in 3-6 days

0

51:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

52

Toro 140-1185

SHEAVE-DRIVE, BLADE

$90.99

$

In Stock, only 2 left!

0

53

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

54

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

55

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

56

Toro 135-2073

PIN-HOC

$28.99

$

In Stock, Qty 18

0

57

Toro 135-2611-01

BRACKET-COVER RETAINER

$18.99

$

Usually ships in 3-6 days

0

58

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 12

0

59

Toro 114-1925

BUMPER-RUBBER

$27.99

$

In Stock, Qty 13

0

60

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

61

Toro 140-0986

RING-SPACER, HOUSING

$18.99

$

Usually ships in 3-6 days

0

62

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

63

Toro 30-8770

WASHER

$12.99

$

In Stock, only 2 left!

0

64

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

65

Toro 135-2460-01

BAFFLE-DEPTH, RH

$36.99

$

Usually ships in 3-6 days

0

99

Toro 112-9028

DECAL-COVER, MISSING

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0
