74074 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 402252614) Hydraulic Drive Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

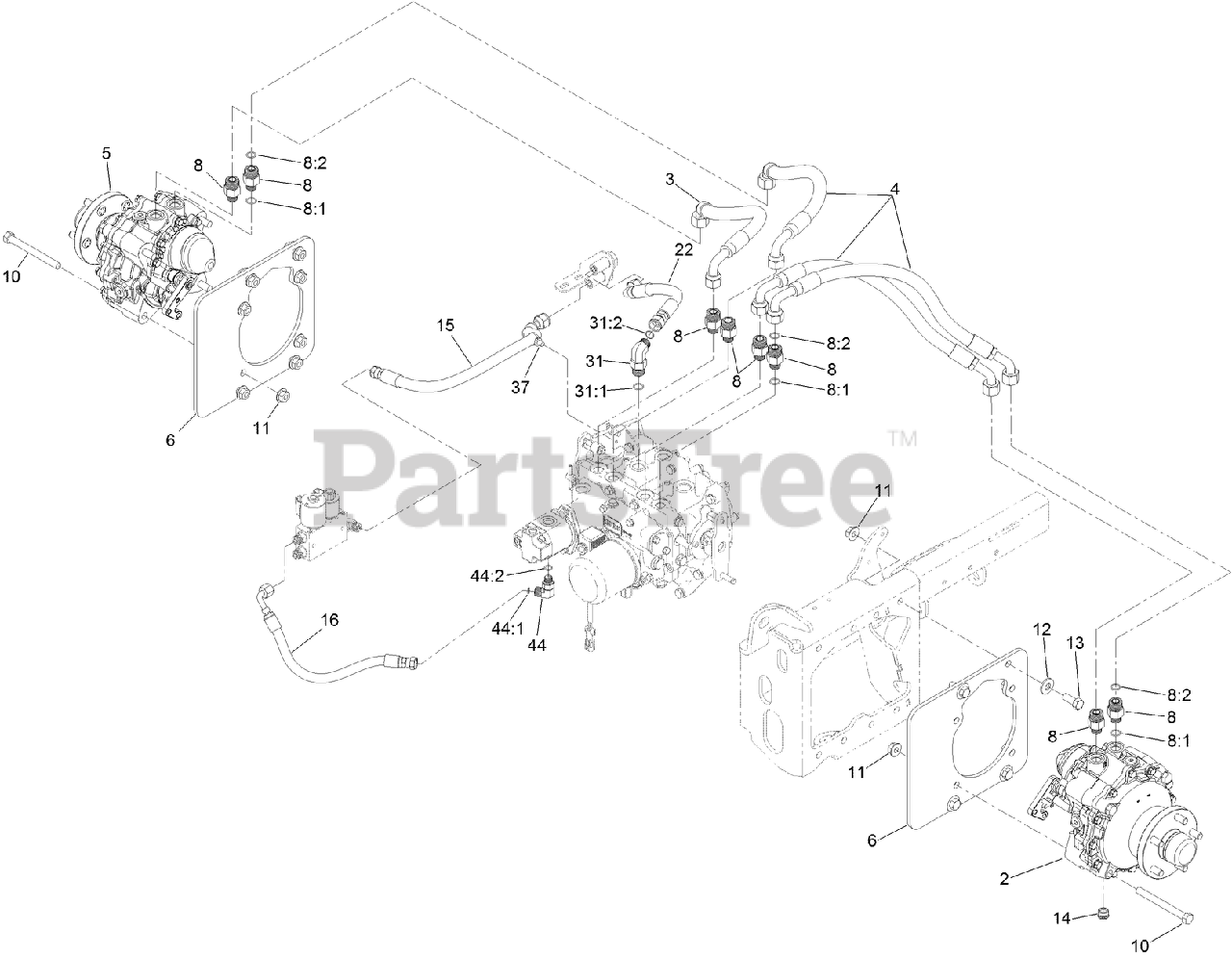

Hydraulic Drive Assembly Parts Diagram

  • Title

2

Toro 126-8134

MOTOR-HYD, LH

$1566.99

$

Usually ships in 3-6 days

0

3

Toro 126-8686

HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

4

Toro 126-8687

HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

5

Toro 126-8133

MOTOR-HYD, RH

$1566.99

$

Usually ships in 3-6 days

0

6

Toro 126-7469-03

PLATE-MOTOR

$96.99

$

Usually ships in 3-6 days

0

8

Toro 340-155

FITTING-STRAIGHT

$30.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

8:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

10

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

11

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

12

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

13

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

14

Toro 126-8282

PLUG-MAGNETIC
(Superseded to 142-2435)

$12.99

$

In Stock, only 3 left!

0

15

Toro 126-8685

HOSE ASM

$78.99

$

In Stock, only 1 left!

0

16

Toro 126-8684

HOSE ASM

$59.99

$

In Stock, only 1 left!

0

22

Toro 126-8682

HOSE ASM

$66.99

$

Usually ships in 3-6 days

0

31

Toro 340-105

FITTING-ELBOW, 90 DEG

$42.99

$

In Stock, only 1 left!

0

31:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

31:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

37

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

44

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

44:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

44:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0
