74060 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 404400000 - 999999999) Deck Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

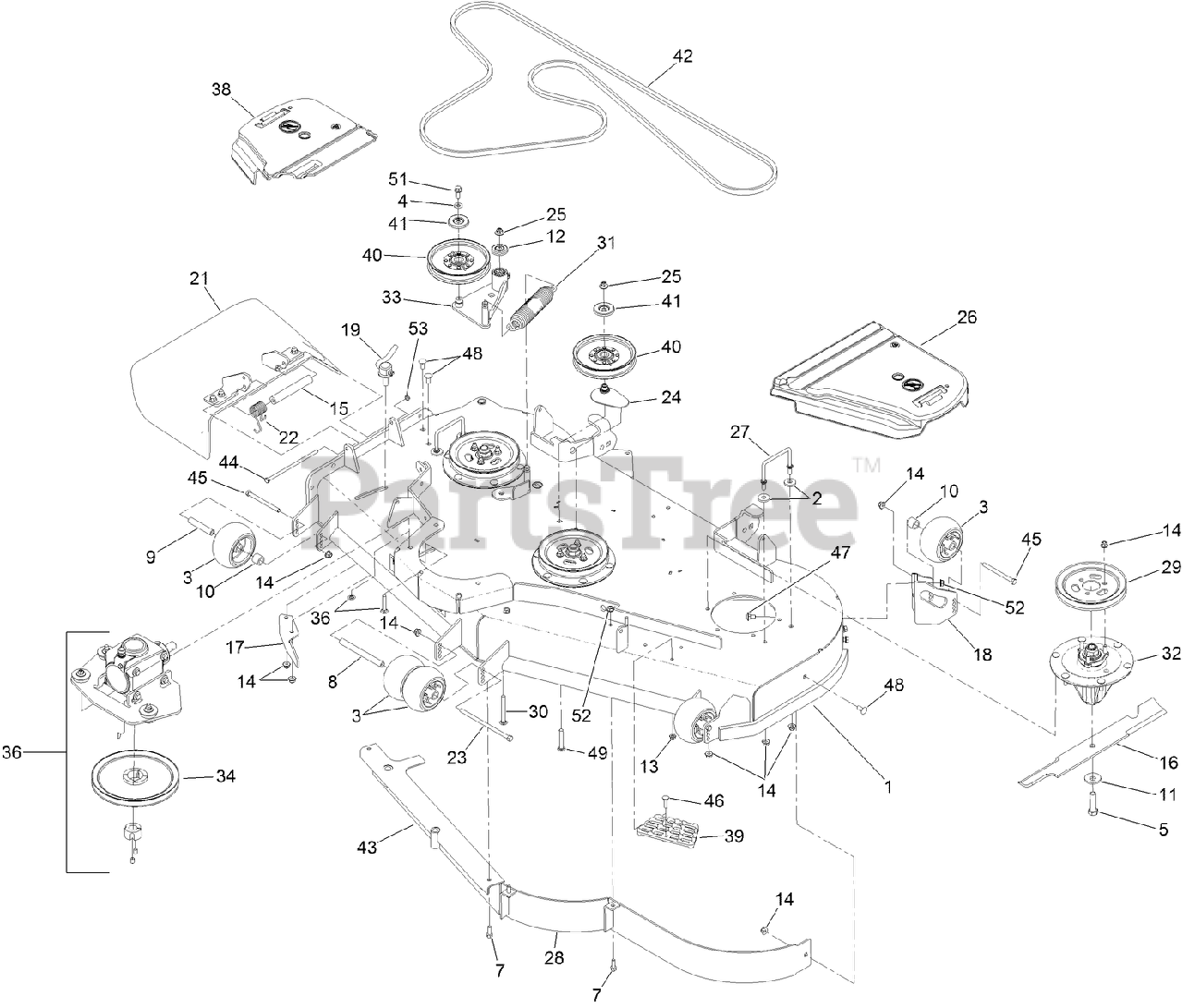

Deck Assembly Parts Diagram

  • Title

1

Toro 126-7719

DECK DECAL ASM

$2815.99

$

Usually ships in 3-6 days

0

2

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

3

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

4

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

5

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

7

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

8

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

9

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

10

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

11

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

12

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

16

Toro 105-7718-03

BLADE-HI FLOW

$25.99

$

In Stock, Qty 9

0

17

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

18

Toro 106-7354-01

MOUNT-WHEEL, LH

$107.99

$

In Stock, only 1 left!

0

19

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

21

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

Usually ships in 3-6 days

0

22

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

23

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

24

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

25

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

27

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

28

Toro 114-5842-01

BAFFLE

$216.99

$

In Stock, only 1 left!

0

29

Toro 105-7734

PULLEY

$49.99

$

In Stock, Qty 9

0

30

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$7.99

$

In Stock, only 4 left!

0

31

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

32

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 2 left!

0

33

Toro 126-2585

IDLER ARM ASM

$174.99

$

In Stock, only 1 left!

0

34

Toro 126-2822

PULLEY

$132.99

$

Usually ships in 3-6 days

0

36

GEARBOX ASM

Note: Not serviced separately

$

$

Not available

38

Toro 126-3182

BELTSHIELD-RT, 60

$117.99

$

Usually ships in 3-6 days

0

39

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

40

Toro 126-7685

IDLER-PULLEY

$62.99

$

In Stock, Qty 20+

0

41

Toro 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 2 left!

0

42

Toro 126-2528

BELT-V, B

$163.99

$

Usually ships in 3-6 days

0

43

Toro 127-4858-01

BAFFLE ASM

$104.99

$

Usually ships in 3-6 days

0

44

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

45

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

46

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

47

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

48

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

49

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 14

0

51

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

52

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

53

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0
