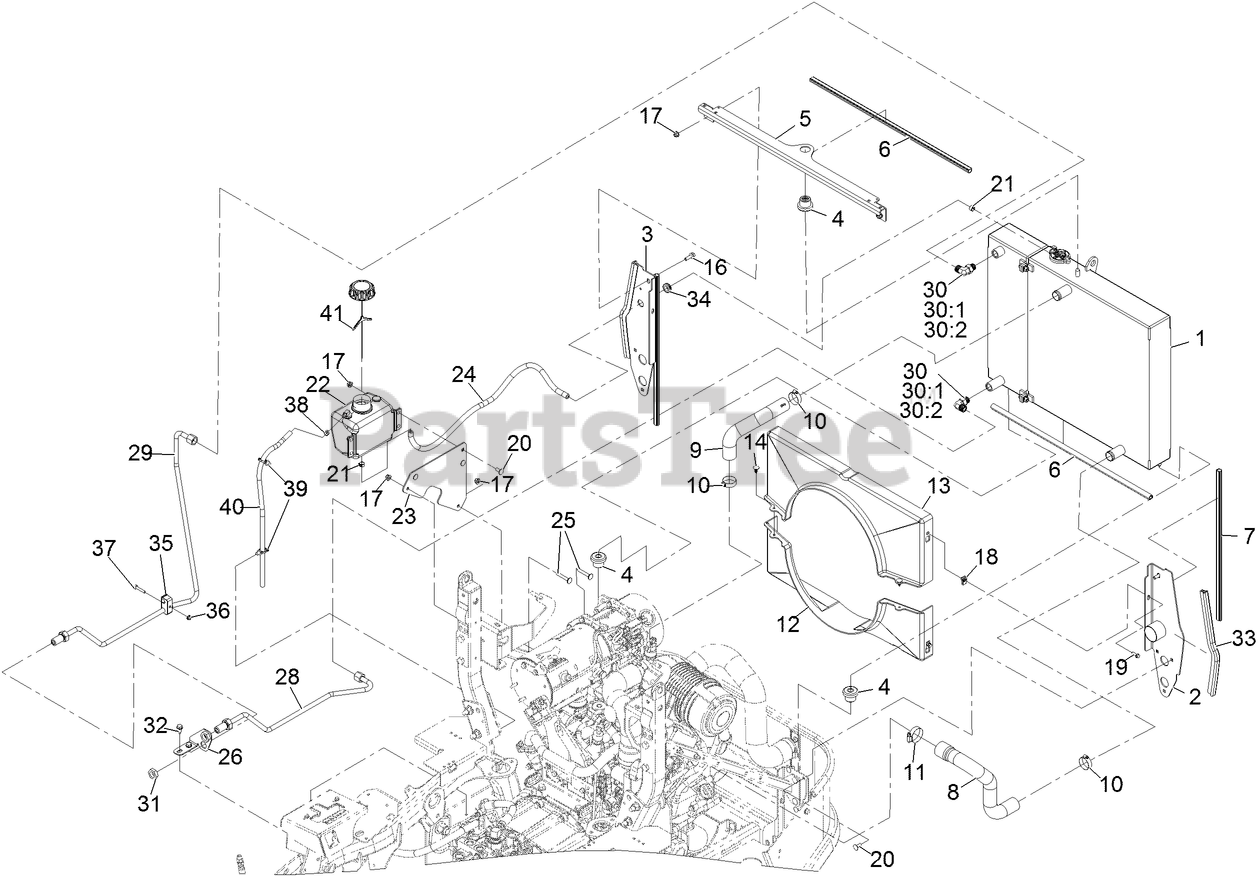

74060 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 402252575 - 404399999) Cooling Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

Cooling Assembly Parts Diagram

  • Title

1

Toro 121-3330

COOLING ASM

$1949.99

$

Usually ships in 3-6 days

0

2

Toro 126-9026-03

SUPPORT-RADIATOR, LH

$58.99

$

Usually ships in 3-6 days

0

3

Toro 126-9028-03

SUPPORT-RADIATOR, RH

$38.99

$

Usually ships in 3-6 days

0

4

Toro 119-1422

MOUNT-ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

5

Toro 120-0068-03

BRACKET-COOLING, TOP

$54.99

$

Usually ships in 3-6 days

0

6

Toro 119-1427

SEAL-BULB

$16.99

$

Usually ships in 3-6 days

0

7

Toro 119-1426

SEAL-BULB

$14.99

$

Usually ships in 3-6 days

0

8

Toro 121-3322

HOSE-RADIATOR, LOWER

$91.99

$

Usually ships in 3-6 days

0

9

Toro 121-3321

HOSE-RADIATOR, UPPER

$91.99

$

In Stock, only 4 left!

0

10

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 4 left!

0

11

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

12

Toro 121-3311

SHROUD-BOTTOM

$149.99

$

Usually ships in 3-6 days

0

13

Toro 121-3312

SHROUD-TOP

$149.99

$

Usually ships in 3-6 days

0

14

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0

16

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

19

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

20

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

22

Toro 135-4692

TANK-OVERFLOW, W/CAP

$76.99

$

Usually ships in 3-6 days

0

23

Toro 126-9178-03

BRACKET-BOTTLE

$21.99

$

Usually ships in 3-6 days

0

24

Toro 126-7648

HOSE

$19.99

$

Usually ships in 3-6 days

0

25

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

26

Toro 126-6781-03

BRACKET-BULKHEAD

$13.99

$

Usually ships in 3-6 days

0

28

Toro 126-8691

HYDRAULIC TUBE ASM

$69.99

$

Usually ships in 3-6 days

0

29

Toro 126-8690

HYDRAULIC TUBE ASM

$74.99

$

Usually ships in 3-6 days

0

30

Toro 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

30:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

30:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

31

Toro 340-127

NUT-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

33

Toro 126-6847

SEAL-BULB

$12.99

$

Usually ships in 3-6 days

0

34

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

35

Toro 135-0641

CLAMP-TWIN

$6.49

$

Usually ships in 3-6 days

0

36

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

38

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

39

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

40

Toro 110-4103

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

41

Toro 135-4693

CAP-W/TETHER

$22.99

$

In Stock, only 4 left!

0
