74056 TE (4000) - Toro 152cm Z Master Zero-Turn Mower (SN: 409854776 - 411423980) Hydraulic Drive Assembly Parts Diagram

152cm Z Master Zero-Turn Mower

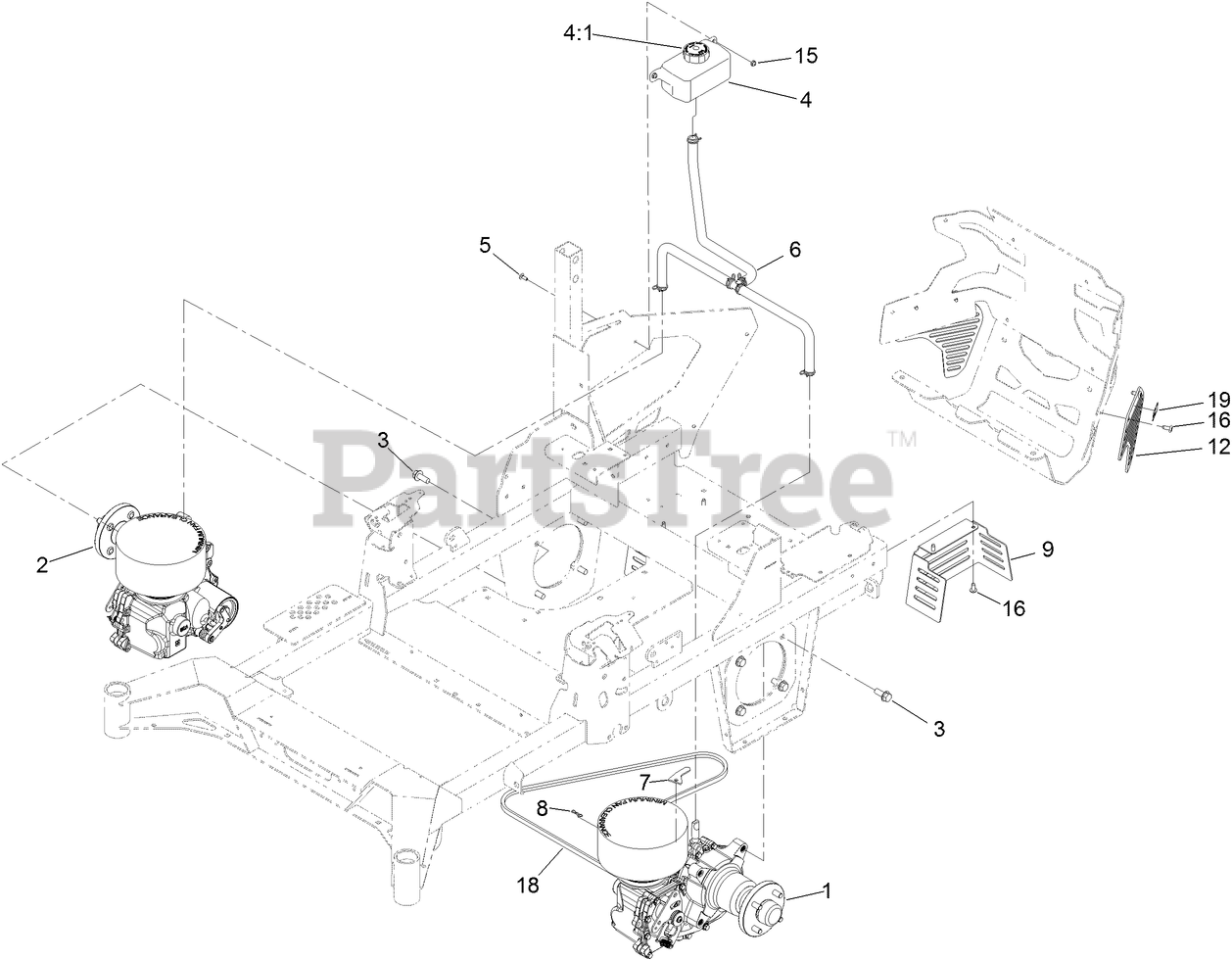

Hydraulic Drive Assembly Parts Diagram

  • Title

1

Toro 139-1074

LH TRANSAXLE ASM
(Superseded to 145-3696)

$2226.99

$

Usually ships in 3-6 days

0

2

Toro 139-1075

RH TRANSAXLE ASM
(Superseded to 145-3695)

$2226.99

$

Usually ships in 3-6 days

0

3

Toro 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

4

Toro 119-9908

HYDRAULIC RESERVOIR ASM

$64.99

$

Usually ships in 3-6 days

0

4:1

Toro 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

5

Toro 3229-28

SCREW-CARR

$7.49

$

Usually ships in 3-6 days

0

6

Toro 140-1225

ASM-HOSE, HYDRAULIC

$118.99

$

Usually ships in 3-6 days

0

7

Toro 139-8091

PLATE-LEVER, BYPASS

$16.99

$

Usually ships in 3-6 days

0

8

Toro 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 20+

0

9

Toro 145-1949-03

GUARD-CLUTCH

$28.99

$

Usually ships in 3-6 days

0

12

Toro 144-6591-03

GUARD-MUFFLER, TE

$24.99

$

Usually ships in 3-6 days

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 138-9753

SCREW

$1.49

$

In Stock, only 2 left!

0

18

Toro 140-7994

BELT-V

$61.99

$

In Stock, only 2 left!

0

19

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0
