74056 TE (4000) - Toro 152cm Z Master Zero-Turn Mower (SN: 408907973 - 409854759) Deck Lift Assembly Parts Diagram

152cm Z Master Zero-Turn Mower

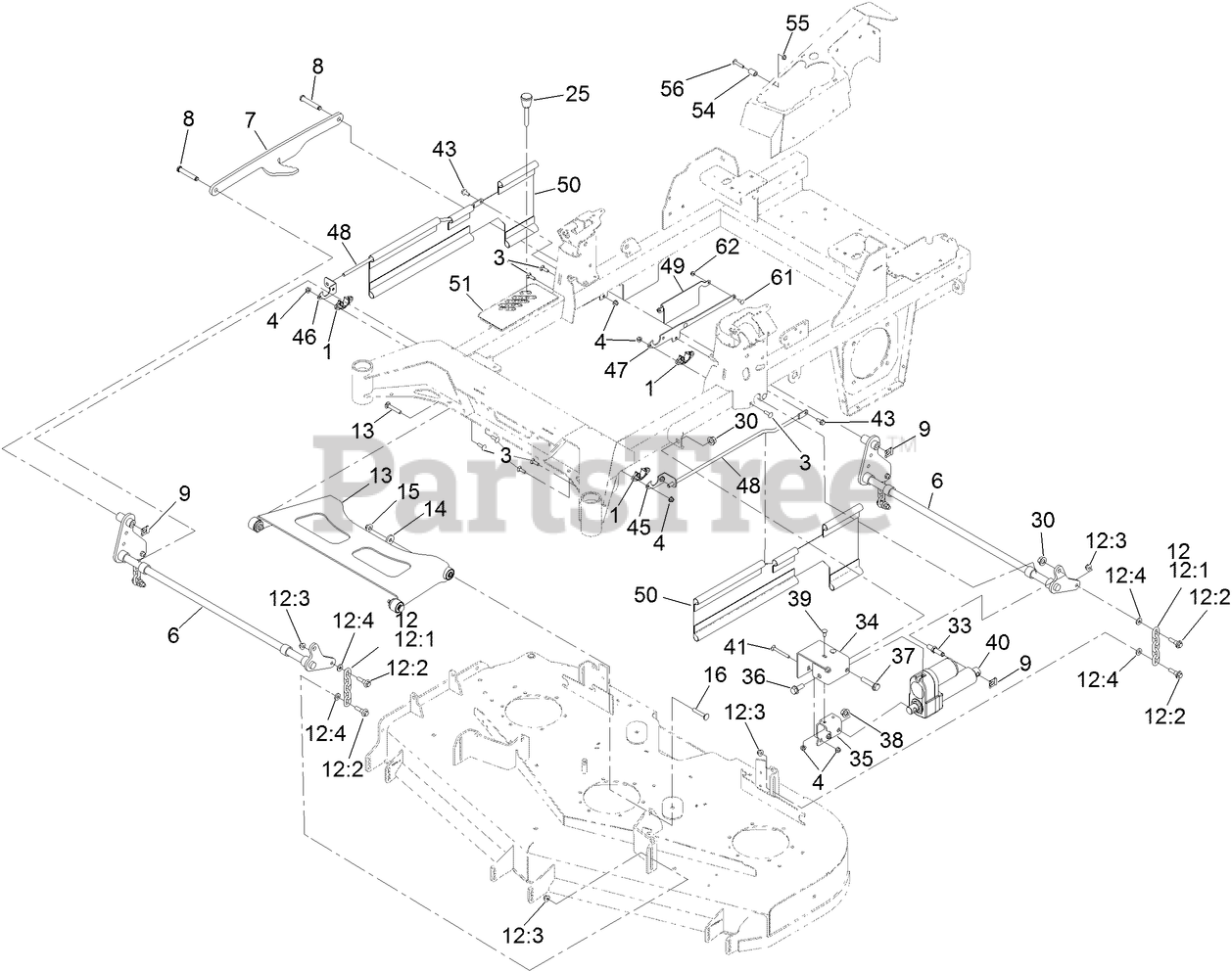

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 115-5065

BUSHING-FLANGE

$8.49

$

In Stock, Qty 20+

0

3

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 140-4975-03

DECK LIFT SHAFT ASM [BLACK]

$100.99

$

Usually ships in 3-6 days

0

7

Toro 126-4639-03

LINK-LIFT

$72.99

$

Usually ships in 3-6 days

0

8

Toro 126-9181

PIN-CLEVIS

$8.99

$

In Stock, only 2 left!

0

9

Toro 138-8491

CLIP-PIN

$7.49

$

In Stock, Qty 19

0

12

Toro 126-8877

DECK CHAIN ASM

$14.99

$

Usually ships in 3-6 days

0

12:1

Toro 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 8

0

12:2

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 13

0

12:3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12:4

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 13

0

13

Toro 140-1179

ASM-DECK STRUT W/ BUSHINGS

$145.99

$

In Stock, only 1 left!

0

14

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

15

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3231-7

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

25

Toro 126-5401

PIN-HOC

$22.99

$

In Stock, only 2 left!

0

30

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro 139-8135

PIN-PIVOT, ACTUATOR

$19.99

$

Usually ships in 3-6 days

0

34

Toro 144-2667-01

BRACKET-MOUNT, OUTER
(Superseded to 145-3663-01)

$32.99

$

Usually ships in 0 days

0

35

Toro 144-2668-01

BRACKET-MOUNT, INNER
(Superseded to 145-3664-01)

$28.99

$

Usually ships in 0 days

0

36

Toro 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

37

Toro 3234-46

SCREW-HHF

$15.99

$

Usually ships in 3-6 days

0

38

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

39

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

40

Toro 139-8111

ACTUATOR-LINEAR

$

$

Not available

41

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 13

0

43

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

45

Toro 140-4918

BRACKET-MOUNT, UPPER FRONT (LH)

$29.99

$

Usually ships in 3-6 days

0

46

Toro 140-4919

BRACKET-MOUNT, UPPER FRONT (RH)

$29.99

$

Usually ships in 3-6 days

0

47

Toro 145-1275

BRACKET-MOUNTING, UPPER

$14.99

$

Usually ships in 3-6 days

0

48

Toro 126-7760

ROD-SUPPORT, UPPER

$98.99

$

Usually ships in 3-6 days

0

49

Toro 145-1276-03

BRACKET-FLAG

$16.99

$

Usually ships in 0 days

0

50

Toro 126-8561

GUARD-SIDE

$179.99

$

Usually ships in 3-6 days

0

51

Toro 140-4927

DECAL-HOC, MM

$43.99

$

Usually ships in 3-6 days

0

54

Toro 114-2754

SPACER

$12.99

$

In Stock, only 4 left!

0

55

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

56

Toro 126-7439

SCREW-TORX

$2.99

$

In Stock, Qty 11

0

61

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 9

0

62

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
