Toro 74056 TE (4000) - Toro 152cm Z Master Zero-Turn Mower (SN: 408907973 - 409854759) Deck Assembly Parts Lookup with Diagrams

1

Toro 144-6588

DECK DECAL ASM

$2186.99

$

Usually ships in 3-6 days

2

Toro 137-9780

SPINDLE ASM

$147.99

$

In Stock, only 3 left!

3

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, only 2 left!

4

138-6045

SHAFT-SPINDLE

$

Not available 

5

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 12

6

Toro 138-6059

SHEAVE-DRIVE, BLADE

$29.99

$

In Stock, only 2 left!

7

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

8

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

9

Toro 140-1240

BLADE

$26.99

$

In Stock, Qty 14

10

Toro 137-9787

BUSHING-HEX

$7.99

$

In Stock, only 3 left!

11

Toro 109-9220

SCREW-SEMS

$8.49

$

In Stock, Qty 20+

12

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 10

13

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

15

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

16

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

17

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

18

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

19

Toro 323-17

SCREW-HH

$5.99

$

In Stock, Qty 8

20

Toro 133-2129

TUBE-SHAFTING

$14.99

$

In Stock, only 2 left!

21

Toro 133-2128

TUBE-SPACER

$17.99

$

In Stock, only 1 left!

26

Toro 144-2635

RUBBER DEFLECTOR ASM

$165.99

$

Usually ships in 3-6 days

27

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

28

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

29

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

30

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, Qty 5

31

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

32

Toro 126-4781-03

STEP-DECK

$28.99

$

In Stock, only 1 left!

33

Toro 132-9424

PULLEY-IDLER, FLAT

$43.99

$

In Stock, Qty 20+

34

Toro 139-8061

BUSHING, IDLER

$6.49

$

In Stock, only 1 left!

35

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

36

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 11

37

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

38

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

39

Toro 144-0357

BELT-V

$165.99

$

Usually ships in 3-6 days

40

Toro 139-1087

IDLER ARM ASM

$143.99

$

Usually ships in 3-6 days

41

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

42

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

47

Toro 140-4913

SUPPORT-LOWER LH

$182.99

$

Usually ships in 3-6 days

48

Toro 140-4914

SUPPORT-LOWER RH

$182.99

$

Usually ships in 3-6 days

49

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

50

Toro 145-1271-03

GUARD-CENTER BELT 60

$153.99

$

Usually ships in 3-6 days

51

Toro 114-5882-01

BRACKET-COVER, BELT

$83.99

$

Usually ships in 3-6 days

52

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

53

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

54

Toro 73-0041

WASHER-THRUST

$1.99

$

Usually ships in 3-6 days

55

Toro 117-7816

LH BELT COVER ASM

$90.99

$

Usually ships in 3-6 days

55:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

56

Toro 117-7815

RH BELT COVER ASM

$90.99

$

Usually ships in 3-6 days

56:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

57

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

58

Toro 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 20+

59

Toro 140-8027

ROD-SKIRT, LOWER

$31.99

$

Usually ships in 3-6 days

60

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

61

Toro 144-0420

SHIELD-RUBBER

$16.99

$

Usually ships in 3-6 days

62

Toro 132-5064

RIVET-POP

$1.49

$

Usually ships in 3-6 days

63

Toro 126-9646

BRACKET-GUARD

$27.99

$

Usually ships in 3-6 days

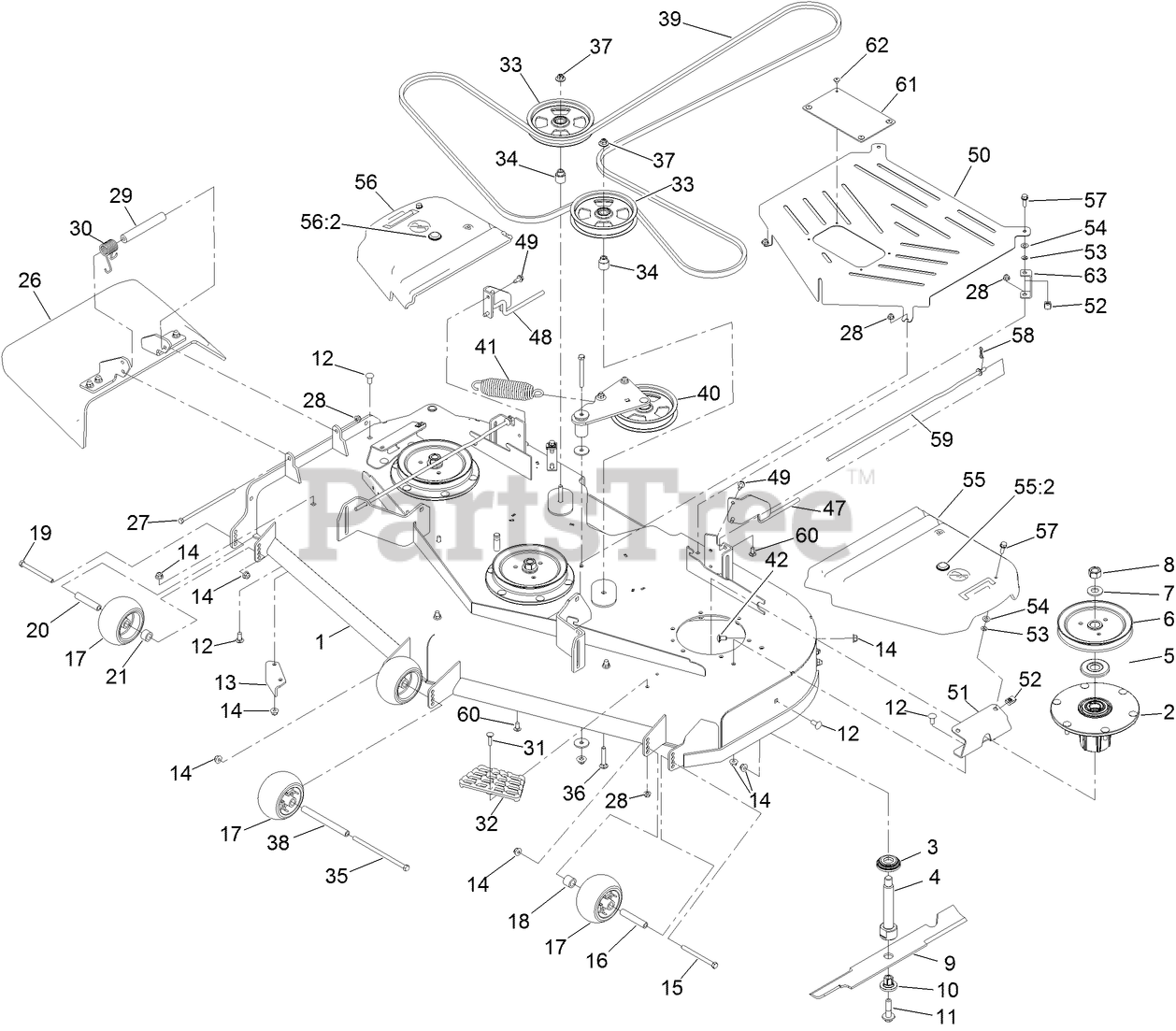

74056 TE (4000) - Toro 152cm Z Master Zero-Turn Mower (SN: 408907973 - 409854759) Deck Assembly Parts Diagram

Deck Assembly Parts Diagram

138-6045
