74055 TA (4000) - Toro 60" Z Master Zero-Turn Mower (SN: 414328043 - 415399999) Deck Lift Assembly Parts Diagram

60" Z Master Zero-Turn Mower

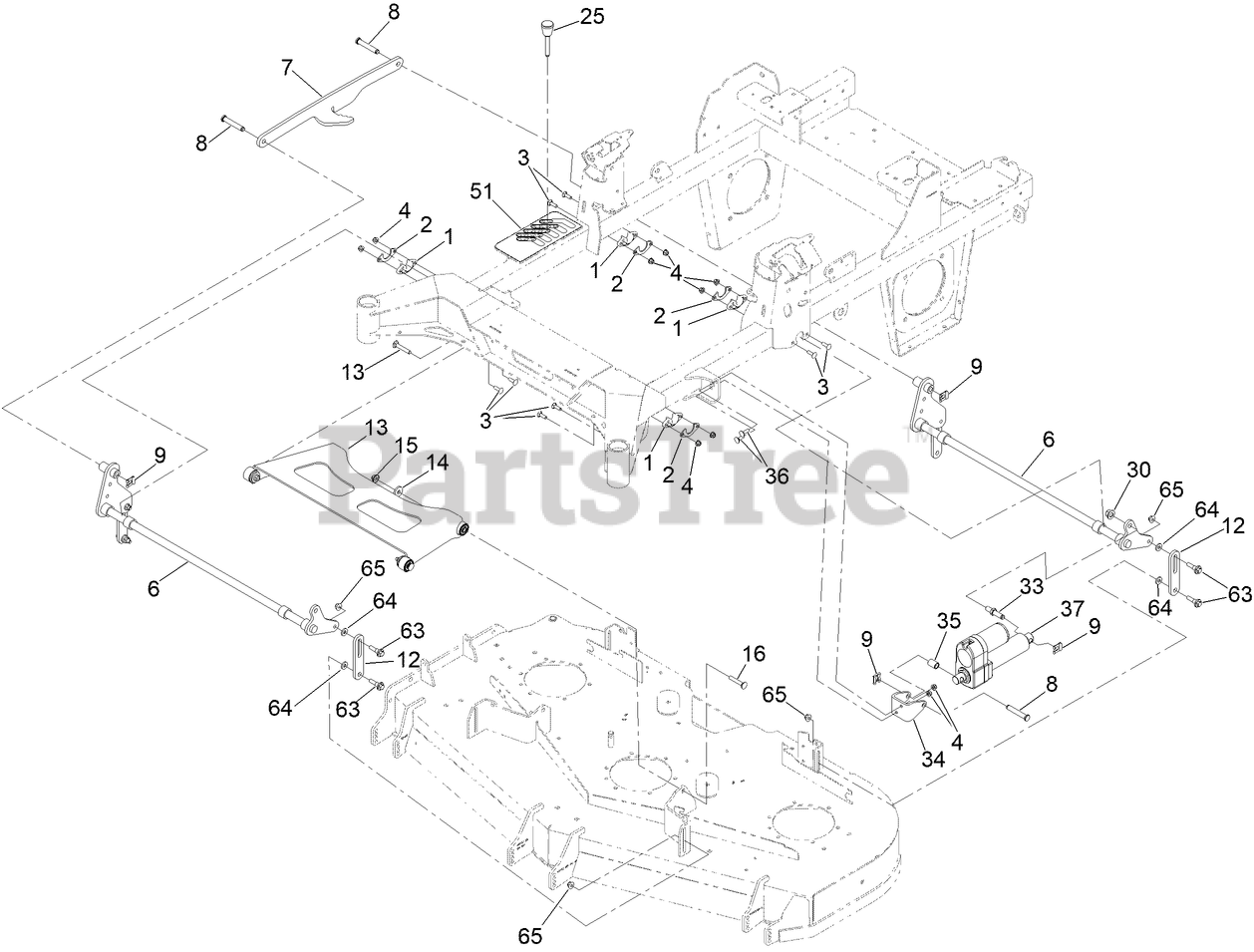

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 139-5872

BEARING-FLANGE

$1.99

$

Usually ships in 3-6 days

0

2

Toro 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 20+

0

3

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 140-4975-03

DECK LIFT SHAFT ASM [BLACK]

$100.99

$

Usually ships in 3-6 days

0

7

Toro 126-4639-03

LINK-LIFT

$72.99

$

Usually ships in 3-6 days

0

8

Toro 126-9181

PIN-CLEVIS

$8.99

$

In Stock, only 2 left!

0

9

Toro 138-8491

CLIP-PIN

$7.49

$

In Stock, Qty 19

0

12

Toro 145-5702-03

LINK-LIFT, DECK

$10.99

$

Usually ships in 3-6 days

0

13

Toro 140-1179

ASM-DECK STRUT W/ BUSHINGS

$145.99

$

In Stock, only 1 left!

0

14

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

15

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3231-7

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

25

Toro 126-5401

PIN-HOC

$22.99

$

In Stock, only 2 left!

0

30

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro 139-8135

PIN-PIVOT, ACTUATOR

$19.99

$

Usually ships in 3-6 days

0

34

Toro 147-0271-01

CYL MOUNT PLATE

$15.99

$

Usually ships in 0 days

0

35

Toro 127-6751

SPACER-ALUMINUM

$9.99

$

Usually ships in 3-6 days

0

36

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

37

Toro 139-8111

ACTUATOR-LINEAR

$

$

Not available

51

Toro 139-6699

DECAL-HOC

$14.99

$

Usually ships in 3-6 days

0

63

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 13

0

64

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 13

0

65

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
