74055 (4000) - Toro 60" Z Master Zero-Turn Mower (SN: 410147886 - 411425684) Seat Suspension Platform Assembly Parts Diagram

60" Z Master Zero-Turn Mower

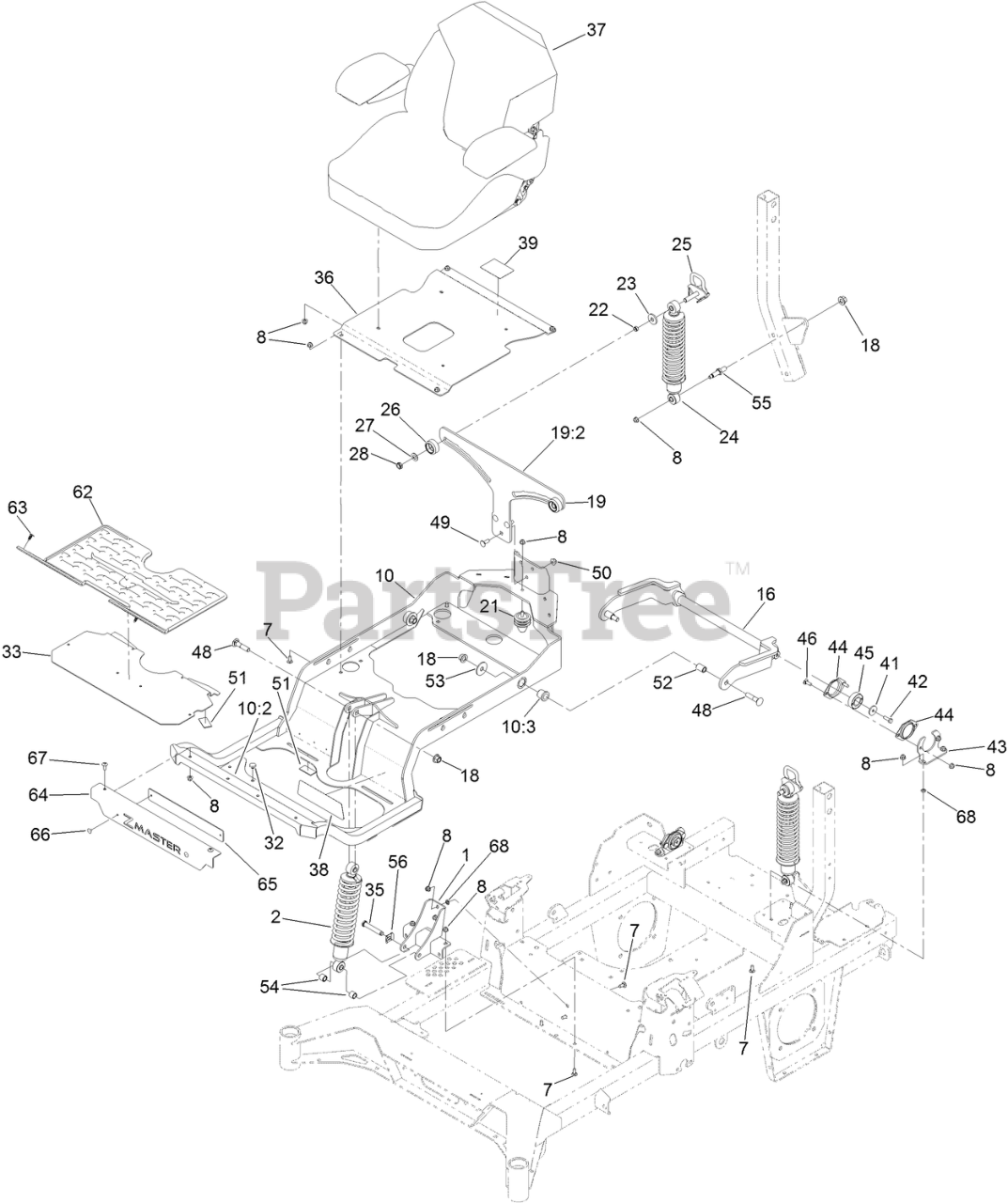

Seat Suspension Platform Assembly Parts Diagram

  • Title

1

Toro 139-6691-03

MOUNT-SHOCK, LOWER [BLACK]

$

$

Currently unavailable

2

Toro 136-1719

SHOCK ASM-FRONT

$131.99

$

Usually ships in 3-6 days

0

7

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Toro 140-4868

SUBFRAME ASM

$1132.99

$

Usually ships in 3-6 days

0

10:2

Toro 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 1 left!

0

10:3

Toro 127-6745

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

16

Toro 127-6754-03

ARM-TRAILING

$270.99

$

Usually ships in 3-6 days

0

18

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

19

Toro 144-2602

BRACKET-MOUNTING

$102.99

$

Usually ships in 3-6 days

0

19:2

Toro 132-5067

DECAL-ADJUSTMENT, RIDE

$25.99

$

Usually ships in 3-6 days

0

21

Toro 126-5491

ISOLATOR

$19.99

$

Usually ships in 3-6 days

0

22

Toro 133-5109

BEARING-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

23

Toro 131-4699

WASHER-PLASTIC

$5.49

$

Usually ships in 3-6 days

0

24

Toro 133-1815

SHOCK/SPRING ASM

$131.99

$

In Stock, only 2 left!

0

25

Toro 136-9017

CAM LOCK ASM

$38.99

$

Usually ships in 3-6 days

0

26

Toro 136-5636

KNOB-LOCK, CAM

$12.99

$

Usually ships in 3-6 days

0

27

Toro 3-6803

WASHER-ADJUSTING

$8.49

$

Usually ships in 3-6 days

0

28

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

32

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

33

Toro 144-0381-01

FLOORPAN

$39.99

$

Usually ships in 3-6 days

0

35

Toro 126-9181

PIN-CLEVIS

$8.49

$

In Stock, only 1 left!

0

36

Toro 140-1197-03

PAN-SEAT

$81.99

$

Usually ships in 3-6 days

0

37

Toro 144-2631

SEAT ASM-STANDARD

$921.99

$

Usually ships in 3-6 days

0

38

Toro 144-0437

DECAL-MYRIDE

$14.99

$

Usually ships in 3-6 days

0

39

Toro 144-2669

DECAL-SERVICE AID

$5.49

$

Usually ships in 3-6 days

0

41

Toro 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 12

0

42

Toro 116-0648

SCREW-HH, THREAD LOCKING

$1.49

$

In Stock, Qty 20+

0

43

Toro 127-6759-03

BRACKET-BEARING

$23.99

$

Usually ships in 3-6 days

0

44

Toro 127-6743

HOUSING-BEARING, FLANGE

$5.49

$

Usually ships in 3-6 days

0

45

Toro 1-653346

BEARING

$71.99

$

Usually ships in 3-6 days

0

46

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

48

Toro 127-6768

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

49

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

50

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

51

Toro 130-0733

PAD-RUBBER

$1.99

$

Usually ships in 3-6 days

0

52

Toro 127-6751

SPACER-ALUMINUM

$9.49

$

Usually ships in 3-6 days

0

53

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

0

54

Toro 140-4869

SPACER-TUBE

$5.99

$

Usually ships in 3-6 days

0

55

Toro 133-4401

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

56

Toro 138-8491

CLIP-PIN

$7.49

$

In Stock, only 2 left!

0

62

Toro 144-0355

FLOORMAT-MYRIDE

$46.99

$

Usually ships in 3-6 days

0

63

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 6

0

64

Toro 144-0382-03

PLATE-BADGE

$29.99

$

Usually ships in 3-6 days

0

65

Toro 144-0422-01

PLATE-BACKER

$6.99

$

Usually ships in 3-6 days

0

66

Toro 132-5064

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

67

Toro 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

68

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0
