74055 (4000) - Toro 60" Z Master Zero-Turn Mower (SN: 410147886 - 411425684) Motion Control Assembly Parts Diagram

60" Z Master Zero-Turn Mower

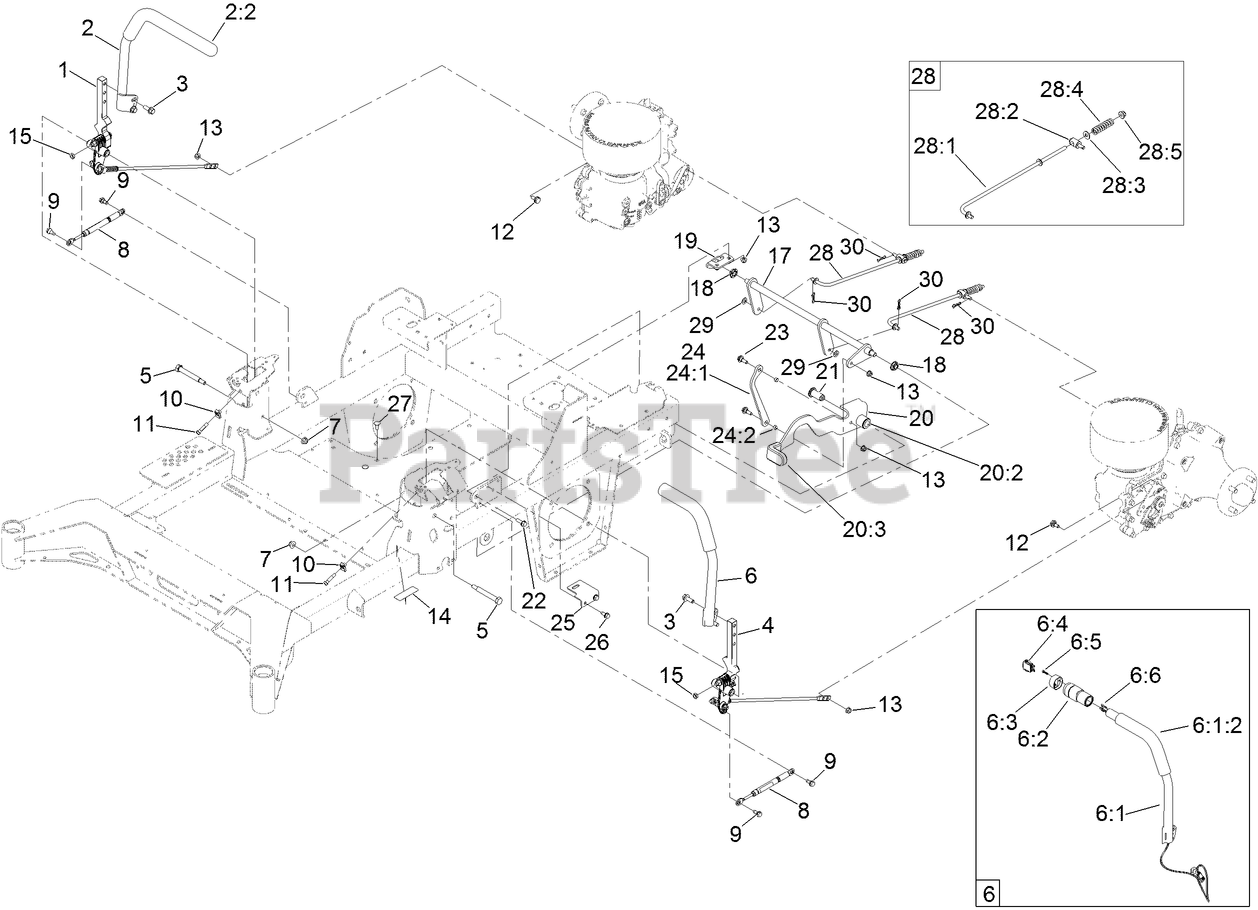

Motion Control Assembly Parts Diagram

  • Title

1

Toro 139-6697

MOTION CONTROL ASM-RH

$112.99

$

Usually ships in 3-6 days

0

2

Toro 139-1089

HANDLE ASM - RH

$67.99

$

Usually ships in 3-6 days

0

2:2

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0

3

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

4

Toro 139-6696

MOTION CONTROL ASM-LH

$112.99

$

Usually ships in 3-6 days

0

5

Toro 115-5099

BOLT-PIVOT

$5.49

$

Usually ships in 3-6 days

0

6

Toro 140-8020

HANDLE ASM-LH

$224.99

$

Usually ships in 3-6 days

0

6:1

HANDLE ASM - LH

Note: Not serviced separately

$

$

Not available

6:1:2

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0

6:2

Toro 125-2662

CASE ASM

$53.99

$

Usually ships in 3-6 days

0

6:3

Toro 121-3399

CAP-SWITCH

$10.99

$

Usually ships in 3-6 days

0

6:4

Toro 140-1228

Air Cleaner Element

$51.99

$

Usually ships in 3-6 days

0

6:5

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6:6

Toro 144-0354

HARNESS-WIRE, HANDLE

$46.99

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 126-4322

DAMPER
(Superseded to 142-6851)

$30.99

$

In Stock, only 3 left!

0

9

Toro 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

10

Toro 112-3306

NUT

$3.49

$

Usually ships in 3-6 days

0

11

Toro 126-4299

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

12

Toro 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, Qty 13

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

15

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

17

Toro 144-2658

BRAKE ASM

$113.99

$

Usually ships in 3-6 days

0

18

Toro 126-5820

BEARING-SPHERICAL

$7.99

$

In Stock, only 1 left!

0

19

Toro 139-6742

BRACKET-BRAKE

$8.49

$

Usually ships in 3-6 days

0

20

Toro 139-6726

BRAKE LEVER ASM W/GRIP

$58.99

$

Usually ships in 3-6 days

0

20:2

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

20:3

Toro 132-4749

GRIP-LEVER

$5.49

$

In Stock, only 1 left!

0

21

Toro 139-6743

PIVOT-HANDLE

$12.99

$

Usually ships in 3-6 days

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

23

Toro 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 20+

0

24

Toro 144-6566

BRAKE LINK ASM

$22.99

$

Usually ships in 3-6 days

0

24:1

Toro 144-6565

PLATE-LINK, HANDLE

$20.99

$

Usually ships in 3-6 days

0

24:2

Toro 116-4976

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

25

Toro 139-6745

PLATE-SWITCH

$8.99

$

Usually ships in 3-6 days

0

26

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

28

Toro 144-0353

BRAKE ROD ASM

$23.99

$

Usually ships in 3-6 days

0

28:1

Toro 140-4952

ROD-BRAKE

$

$

Currently unavailable

28:2

Toro 139-6741

FITTING-ROD

$17.99

$

Usually ships in 3-6 days

0

28:3

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28:4

Toro 144-2645

SPRING-COMPRESSION

$

$

Currently unavailable

28:5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

30

Toro 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 20+

0
