74053 TE (4000) - Toro 132cm Z Master Zero-Turn Mower (SN: 413000000 - 414071897) Frame Assembly Parts Diagram

132cm Z Master Zero-Turn Mower

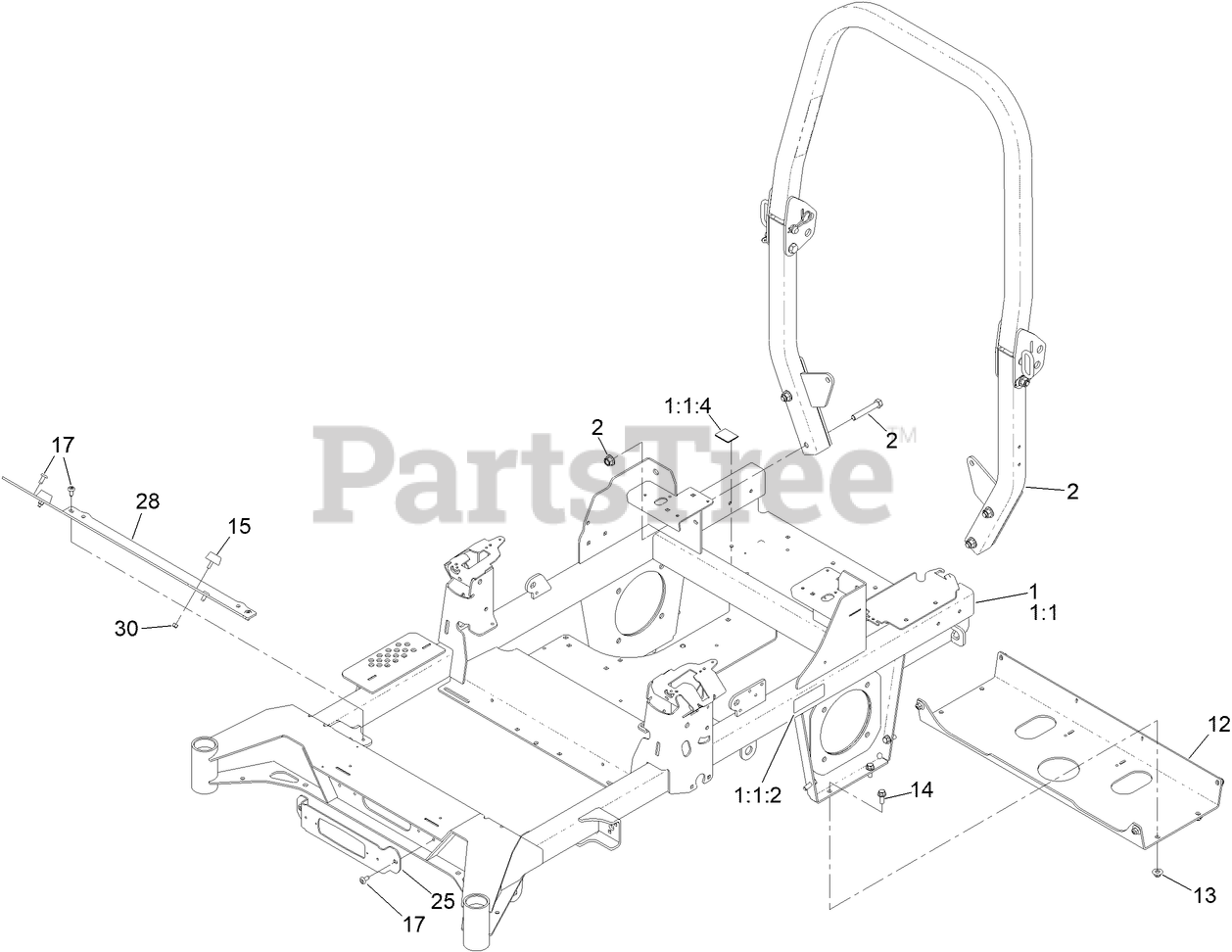

Frame Assembly Parts Diagram

  • Title

1

Toro 144-6589

FRAME ASM

$3040.99

$

Usually ships in 3-6 days

0

1:1

FRAME-48/52

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 126-4363

DECAL-WARNING

$17.99

$

Usually ships in 3-6 days

0

1:1:4

Toro 144-2687

DECAL, BELT ROUTING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 139-8063

ASM-ROPS

$855.99

$

Usually ships in 3-6 days

0

12

Toro 139-6717-01

PLATE-HYDRO

$184.99

$

Usually ships in 3-6 days

0

13

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

15

Toro 131-8834

BUMPER

$11.99

$

Usually ships in 3-6 days

0

17

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

25

Toro 140-4994-01

BRACKET-LIGHT

$19.99

$

Usually ships in 3-6 days

0

28

Toro 140-4997-01

TOEBOARD [RED]

$62.99

$

Usually ships in 3-6 days

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
