74048 TE (4000) - Toro 122cm Z Master Zero-Turn Mower (SN: 414071674 - 414071689) Deck Assembly Parts Diagram

122cm Z Master Zero-Turn Mower

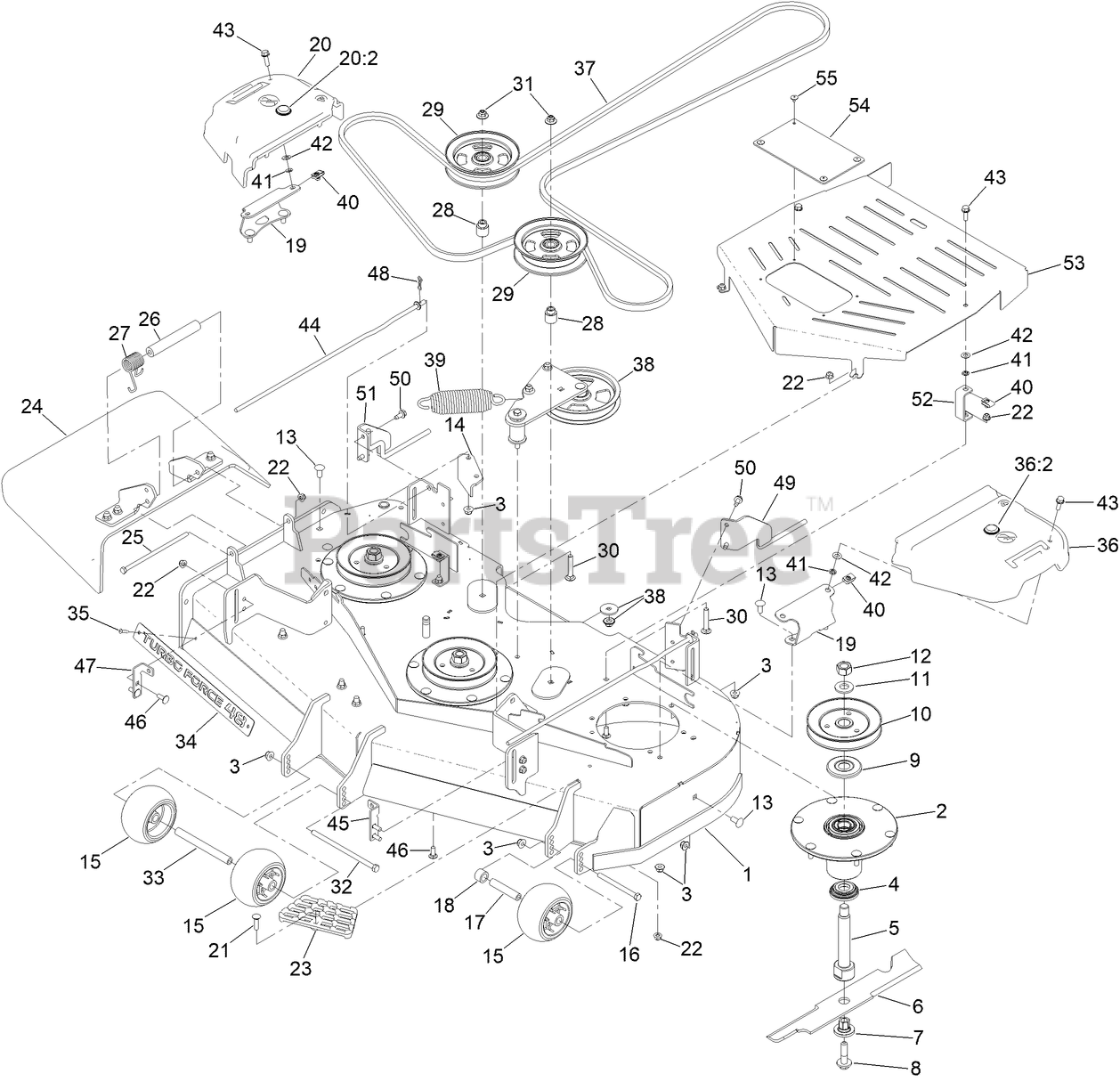

Deck Assembly Parts Diagram

  • Title

1

Toro 147-4995

DECK DECAL ASM

$

$

Currently unavailable

2

Toro 137-9780

SPINDLE ASM

$147.99

$

In Stock, only 2 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 137-9784

GUARD-BOTTOM

$6.49

$

In Stock, only 2 left!

0

5

138-6045

SHAFT-SPINDLE

$

$

Not available

6

Toro 140-1243

BLADE-16.50 HIGH FLOW

$33.99

$

In Stock, Qty 6

0

7

Toro 137-9787

BUSHING-HEX

$7.99

$

In Stock, only 3 left!

0

8

Toro 109-9220

SCREW-SEMS

$8.49

$

In Stock, Qty 20+

0

9

Toro 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

10

Toro 138-6065

SHEAVE,BLADE DRIVE 5.91

$22.99

$

In Stock, only 1 left!

0

11

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

12

Toro 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

13

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

14

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

15

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

16

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

17

Toro 133-2129

TUBE-SHAFTING

$14.99

$

In Stock, only 2 left!

0

18

Toro 133-2128

TUBE-SPACER

$17.99

$

In Stock, only 1 left!

0

19

Toro 126-9121-01

BRACKET-COVER, BELT

$30.99

$

Usually ships in 3-6 days

0

20

Toro 117-7813

RH BELT COVER ASM

$42.99

$

Usually ships in 3-6 days

0

20:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

23

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

24

Toro 144-2635

RUBBER DEFLECTOR ASM

$165.99

$

Usually ships in 3-6 days

0

25

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

26

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

27

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

28

Toro 139-8061

BUSHING, IDLER

$6.49

$

In Stock, only 1 left!

0

29

Toro 132-9425

PULLEY-IDLER, FLAT

$46.99

$

In Stock, only 3 left!

0

30

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 14

0

31

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

32

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

33

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

34

Toro 147-4976-03

PLATE-TURBO FORCE [BLACK]

$

$

Currently unavailable

35

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0

36

Toro 117-7814

LH BELT COVER ASM

$42.99

$

Usually ships in 3-6 days

0

36:2

Toro 117-3824

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

37

Toro 144-0358

BELT-V

$166.99

$

Usually ships in 3-6 days

0

38

Toro 139-1087

IDLER ARM ASM

$143.99

$

Usually ships in 3-6 days

0

39

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

40

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

41

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

42

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

43

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

44

Toro 140-8027

ROD-SKIRT, LOWER

$31.99

$

Usually ships in 3-6 days

0

45

Toro 140-8032

BRACKET-SUPPORT, LH

$16.99

$

Usually ships in 3-6 days

0

46

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 4 left!

0

47

Toro 140-8033

BRACKET-SUPPORT, RH

$16.99

$

Usually ships in 3-6 days

0

48

Toro 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 7

0

49

Toro 140-4913

SUPPORT-LOWER LH

$182.99

$

Usually ships in 3-6 days

0

50

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

51

Toro 140-4914

SUPPORT-LOWER RH

$182.99

$

Usually ships in 3-6 days

0

52

Toro 126-9646

BRACKET-GUARD

$27.99

$

Usually ships in 3-6 days

0

53

Toro 145-1266-03

GUARD-CENTER BELT 48

$156.99

$

Usually ships in 0 days

0

54

Toro 144-0420

SHIELD-RUBBER

$16.99

$

Usually ships in 3-6 days

0

55

Toro 132-5064

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0
