Toro 74048 TE (4000) - Toro 122cm Z Master Zero-Turn Mower (SN: 408906417 - 410169999) Frame Assembly Parts Lookup with Diagrams

1

Toro 144-6589

FRAME ASM

$

Not available 

1:1

FRAME-48/52

Note: Not serviced separately

$

Not available 

1:1:2

Toro 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

1:1:4

Toro 144-2687

DECAL, BELT ROUTING

$2.99

$

Usually ships in 3-6 days

2

Toro 139-8063

ASM-ROPS

$906.99

$

Usually ships in 3-6 days

12

Toro 139-6717-01

PLATE-HYDRO

$196.99

$

Usually ships in 3-6 days

13

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

14

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 19

15

Toro 131-8834

BUMPER

$12.99

$

Usually ships in 3-6 days

17

Toro 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

25

Toro 140-4994-01

BRACKET-LIGHT

$20.99

$

Usually ships in 3-6 days

28

Toro 140-4997-01

TOEBOARD [RED]

$65.99

$

Usually ships in 3-6 days

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

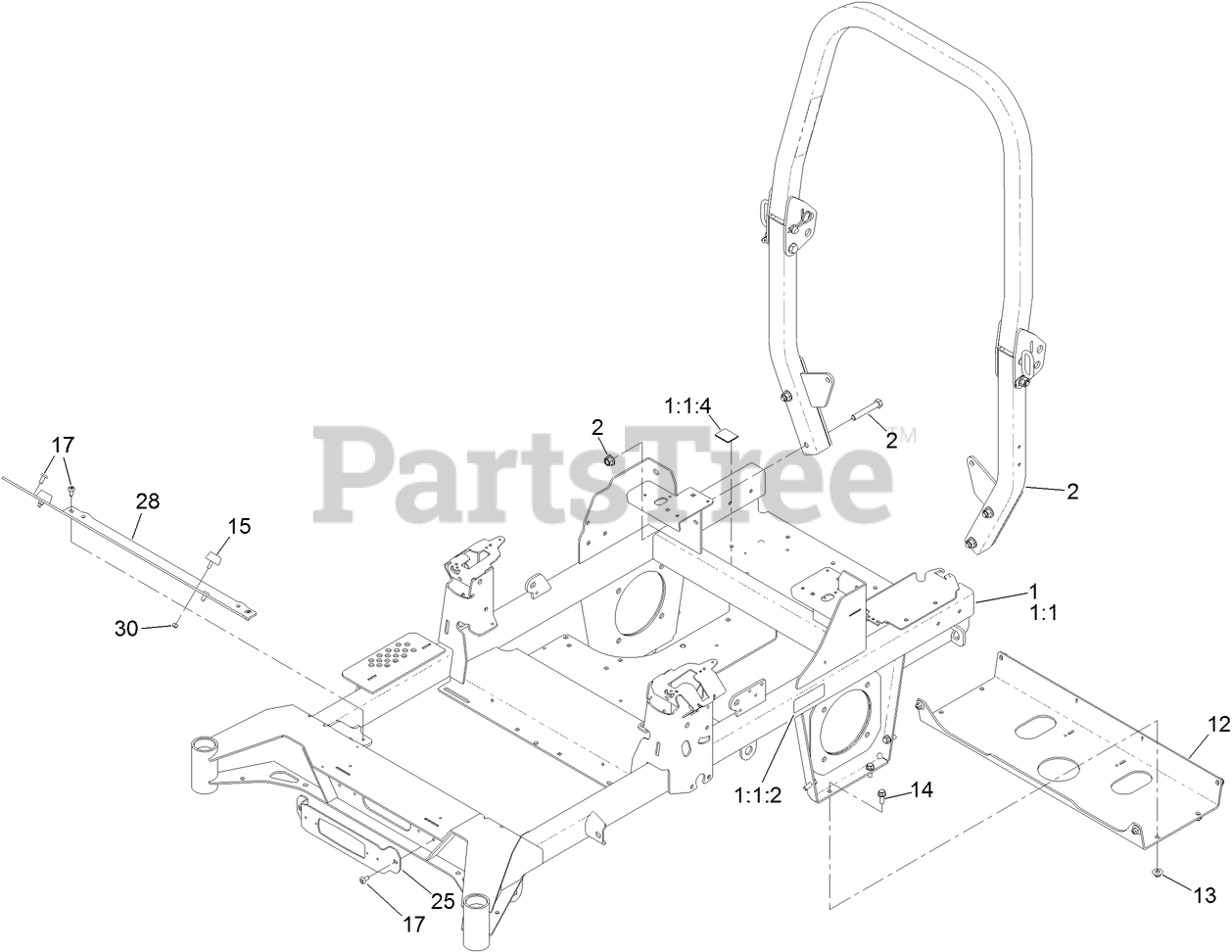

74048 TE (4000) - Toro 122cm Z Master Zero-Turn Mower (SN: 408906417 - 410169999) Frame Assembly Parts Diagram

Frame Assembly Parts Diagram

Toro 144-6589

Toro 126-4363

Toro 144-2687

Toro 139-8063

Toro 139-6717-01

Toro 109-6658

Toro 3234-42

Toro 131-8834

Toro 138-9753

Toro 140-4994-01

Toro 140-4997-01

Toro 3296-42
